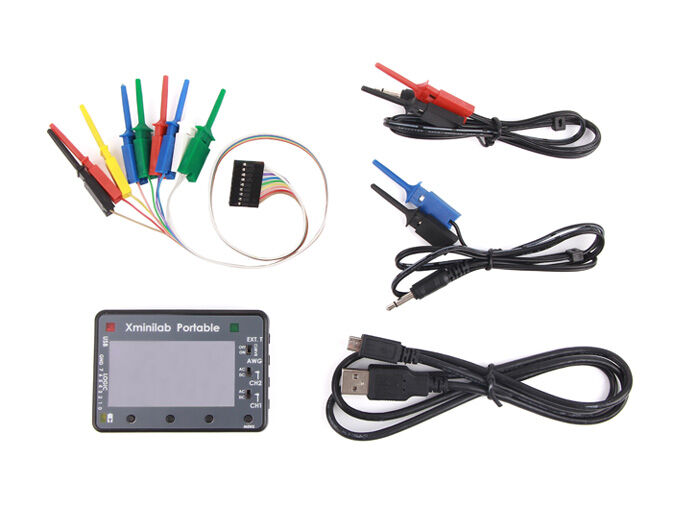

Xminilab Portable

Description

• Mixed Signal Oscilloscope: Simultaneous sampling of analog and digital signals.
• Advanced Trigger: Normal / Single / Auto, with rising or falling edge and adjustable trigger level.
• Meter Mode: Average, Peak to peak and Frequency readout.
• XY Mode (Plot Lissajous patterns or see the phase difference between two waveforms).
• Spectrum Analyzer with different windowing options and selectable vertical log.
• Horizontal and Vertical Cursors with automatic waveform measurements.
• Arbitrary Waveform Generator with Sweep on all parameters.
• Display options: Persistence, Different grid options, and more.
• Curve tracer function

• ATXMEGA32A4U 36KB Flash, 4KB SRAM, 1KB EEPROM

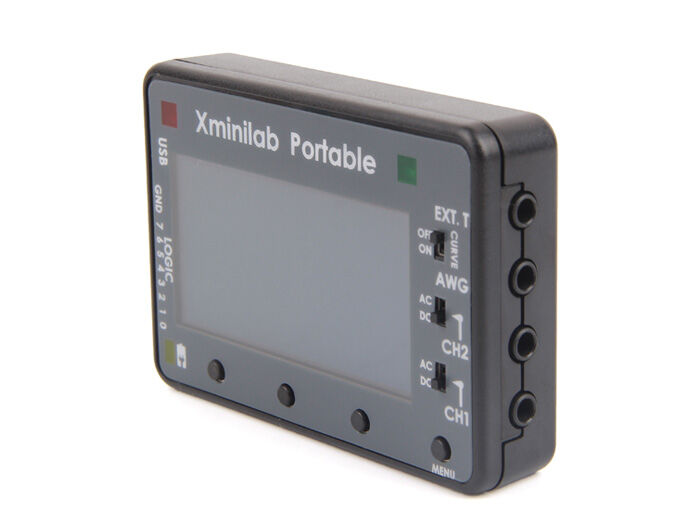

• Graphic Green OLED display 2.42", 128×64 pixels

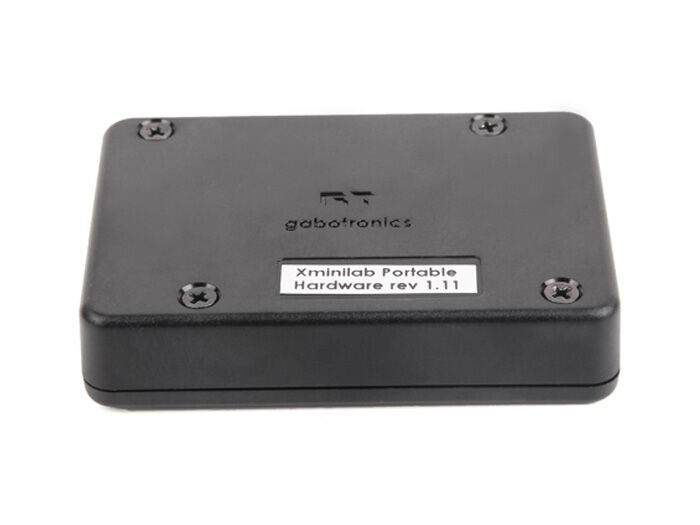

• Enclosure size: 3.17" x 2.22" x 0.7"
• Li-Ion Battery 750mAh
• PDI interface.
• 4 tactile switches
• USB connectivity: Windows, Linux, MAC, Android

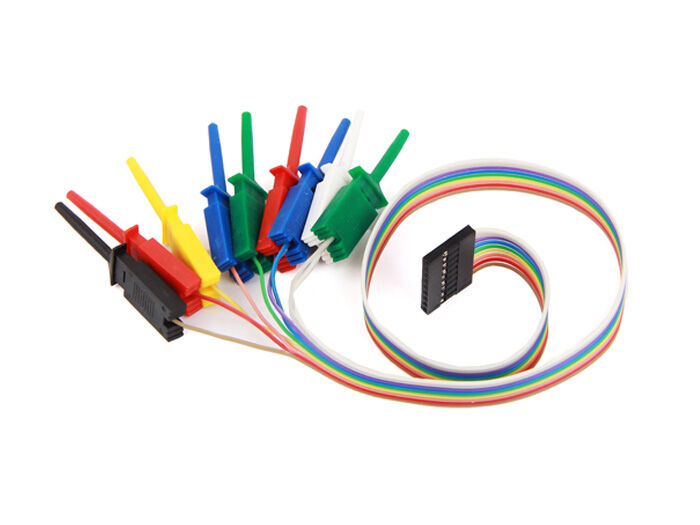

• 8 Digital Inputs, 3.3V / 5V
• 820k ohm input impedance
• Maximum sampling rate: 2MSPS
• Frequency counter: 16Mhz
• Protocol Sniffer: UART, I2C, SPI
• Internal pull up or pull down.
• Buffer size: 256

• 2 Analog Inputs
• Maximum Sampling rate: 2MSPS
• Analog Bandwidth: 200kHz
• Resolution: 8bits
• Input Impedance: 1M惟 15pF
• Buffer size per channel: 256
• Input Voltage Range: -14V to +20V

• 1 Analog Output
• Maximum conversion rate: 1MSPS
• Analog Bandwidth: 50kHz
• Resolution: 8bits
• Output current > +/- 7mA
• Buffer size: 256
• Output Voltage: +/- 4V
