Xmega128a4u USB BO

Description

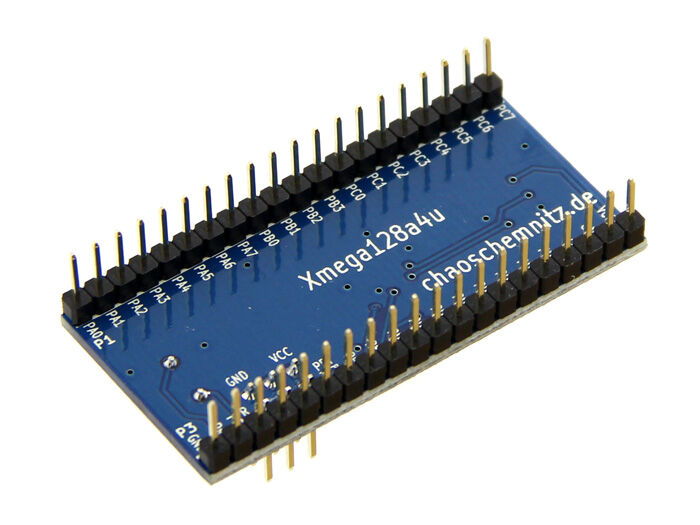

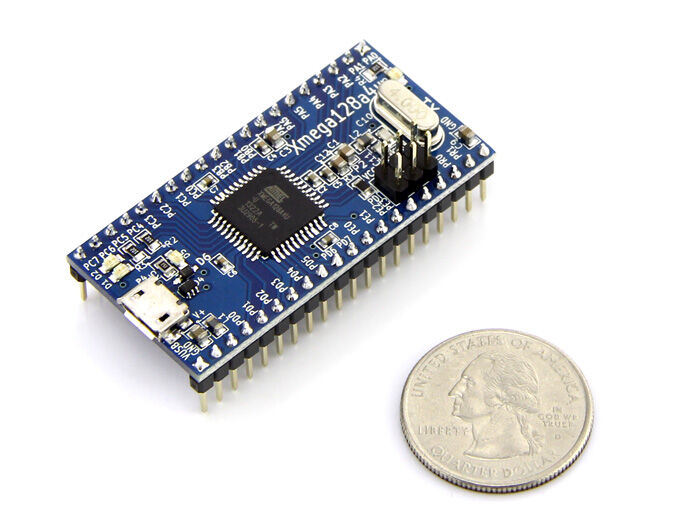

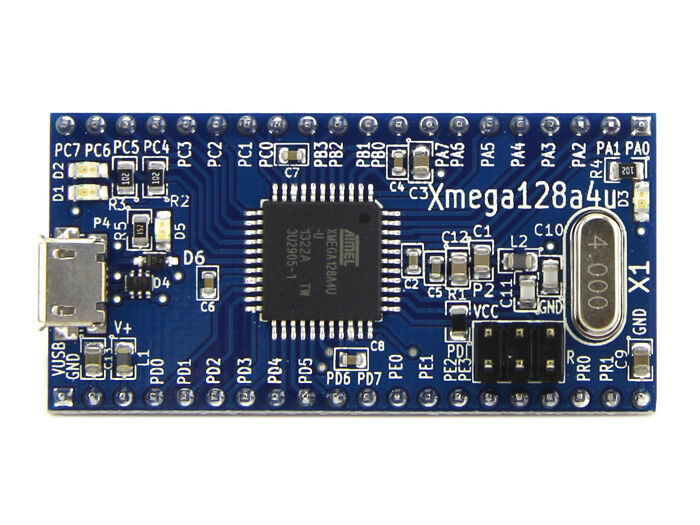

This board carries an Atmel ATXMega128A4U microcontroller. It fits directly on most breadboards. Load your firmware via PDI or with the preinstalled  original Atmel USB-DFU-Loader (Flip).

Check out all details, schematic and layout.

Features

• micro-USB, ESD protected

• 4 MHz Crystal

• RX and TX LEDs for serial port

• PDI header

• all filter and protection parts on board.

• 3.3 V single supply
