XMEGA Xminilab

Description

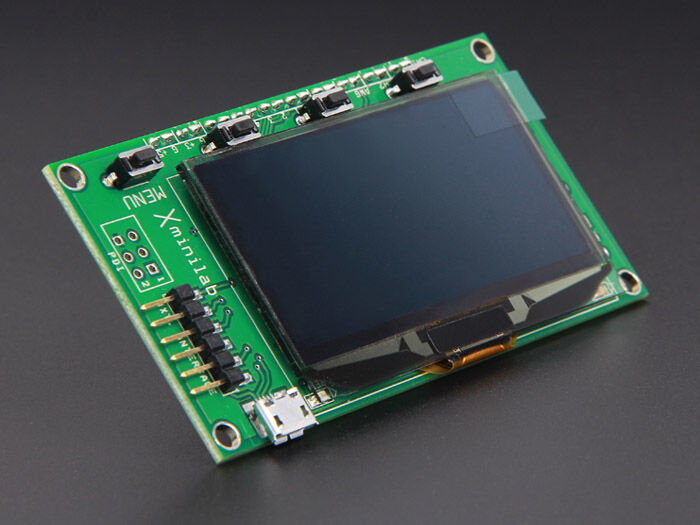

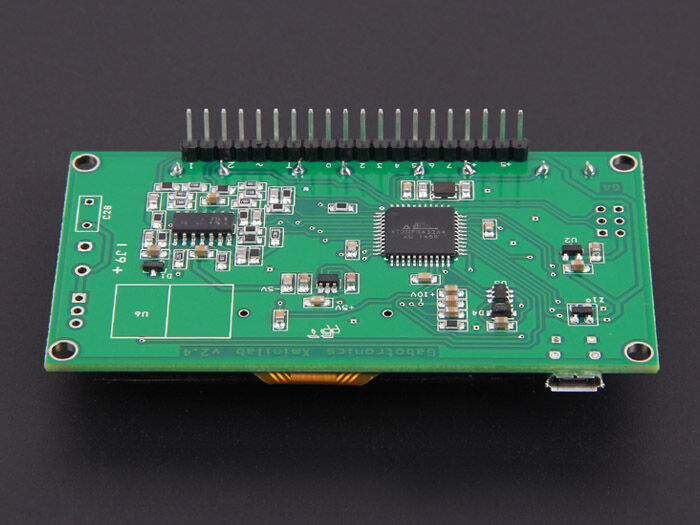

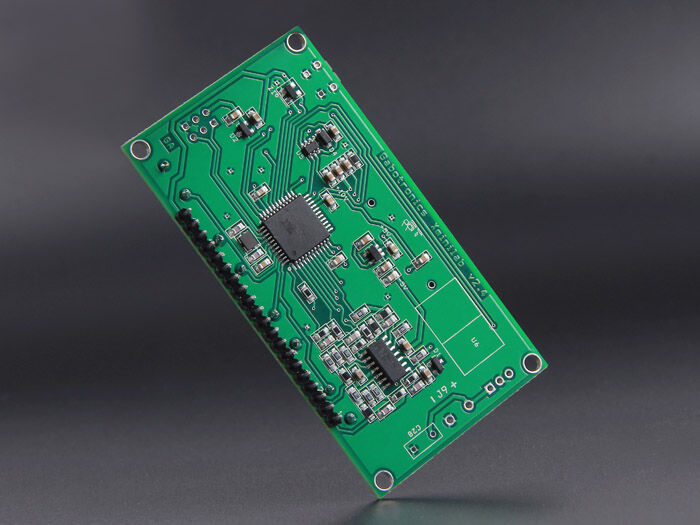

The Xminilab is a mixed signal oscilloscope with an arbitrary waveform generator in a DIP module. It measures only 3.3 x 1.75 inches, and can be mounted directly on a breadboard. The Xminilab can also be used as a development board for the AVR XMEGA microcontroller.

Features

• Mixed Signal Oscilloscope: Simultaneous sampling of analog and digital signals.

• Advanced Trigger: Normal / Single / Auto, with rising or falling edge and adjustable trigger level.

• Meter Mode: Average, Peak to peak and Frequency readout.

• XY Mode (Plot Lissajous patterns or see the phase difference between two waveforms).

• Spectrum Analyzer with different windowing options and selectable vertical log.

• Horizontal and Vertical Cursors with automatic waveform measurements.

• Arbitrary Waveform Generator with Sweep on all parameters.

• Display options: Persistence, Different grid options, and more.

Specification

General Specifications

• ATXMEGA32A4U 36KB Flash, 4KB SRAM, 1KB EEPROM

• Graphic OLED display 2.42", 128×64 pixels

• Module size: 3.3" x 1.75"

• PDI interface.

• 4 tactile switches

• USB connectivity: Windows, Linux, MAC, Android

Logic Analyzer specifications

• 8 Digital Inputs, 3.3V level.

• Maximum sampling rate: 2MSPS

• Frequency counter: 16Mhz

• Protocol Sniffer: UART, I2C, SPI

• Internal pull up or pull down.

• Buffer size: 256

Oscilloscope specifications

• 2 Analog Inputs

• Maximum Sampling rate: 2MSPS

• Analog Bandwidth: 200kHz

• Resolution: 8bits

• Input Impedance: 1M

• Buffer size per channel: 256

• Input Voltage Range: -14V to +20V

AWG specifications

• 1 Analog Output

• Maximum conversion rate: 1MSPS

• Analog Bandwidth: 44.1kHz

• Resolution: 8bits

• Output current > +/- 7mA

• Buffer size: 256

• Output Voltage: +/- 2V

Documents

• Source Code

• XScopes PC Interface

• Manual EN Translations

• For any technical support or suggestion, please kindly go to our forum .
