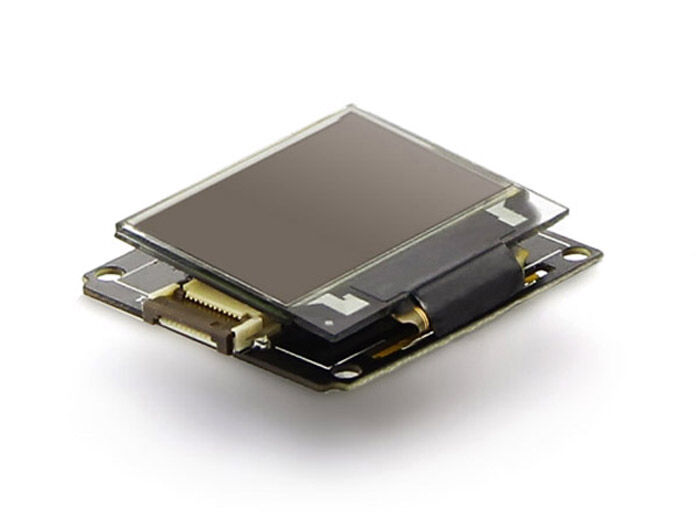

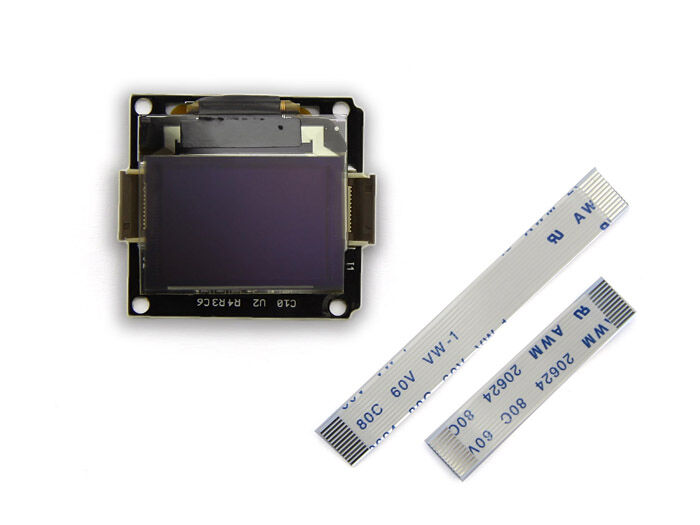

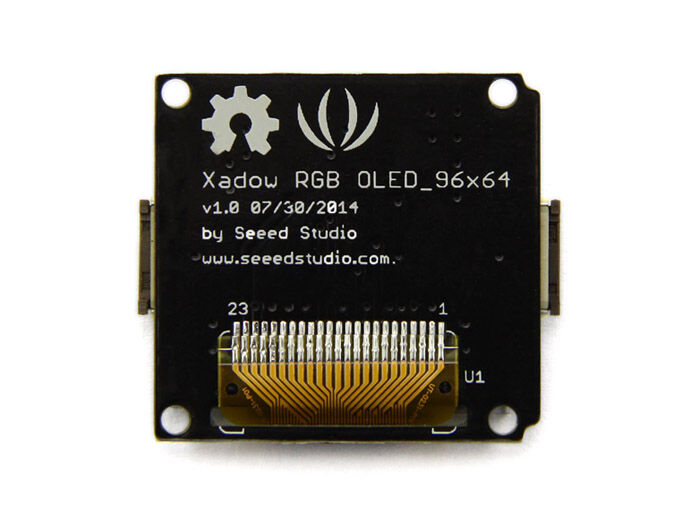

Xadow – RGB OLED 96×64

Description

RBG OLED is a 16 bit 96*64 dot matrix OLED display module with RGB color. It is based on SSD1331 module which is a single chip CMOS OLED/PLED driver with 288 segments and 64 common output, supporting up to 96 RGB * 64 dot matrix display. It use SPI for communication.

Notice: This module is not compatible with any other Xadow version 2 or RePhone modules.

FEATURES

• • ŸSPI interface
• • ŸRGB Color OLED

SPECIFICATION

• • ŸPower Voltage (VCC)：3.3V
• • ŸDisplay Color: RGB
• • ŸDot Matrix: 96*64
• • ŸOperating temperature: -20~70 ℃

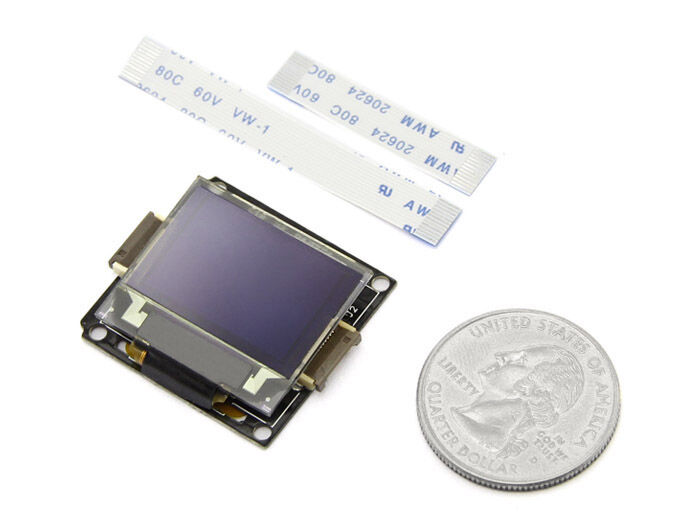

• • ŸDimensions: 28mm x 32mm

DOCUMENTS

Please visit our wiki page for more info about this product. It will be appreciated if you can help us improve the documents, add more demo code or tutorials. For technical support, please post your questions to our forum.

To download the schematic of this board please visit here.

And the source code is available at our Github.
