Xadow – Multichannel Gas Sensor

Description

This product is retired, please consider our Grove – Multichannel Gas Sensor as your alternative choice.

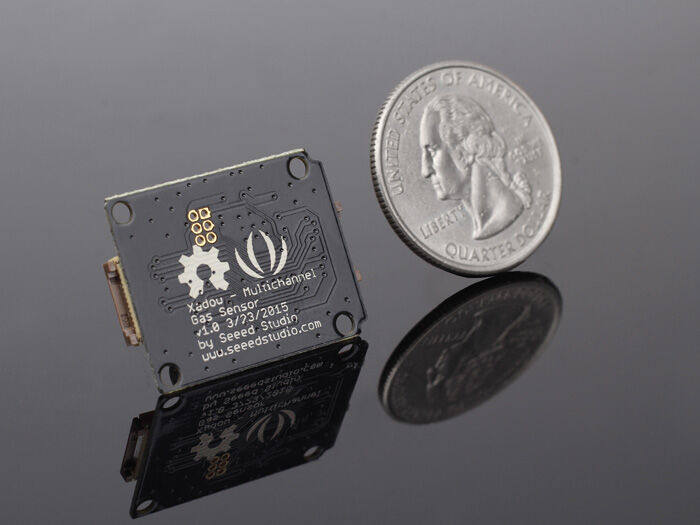

Xadow – Multichannel Gas sensor is a very small sensor board with a compact MOS sensor, MiCS-6814. The MiCS-6814 is a robust MEMS sensor for the detection of pollution from automobile exhausts and for agricultural/industrial odors. This sensor board has two standard Xadow interfaces. It is very easy to use with Xadow – Main Board.

Notice: This module is not compatible with any other Xadow version 2 or RePhone modules.

FEATURES

•
  Three fully independent sensing elements on one package
•
  Built with ATmega168PA
•
  I2C interface with programmable address
•
  Heating power can be shut down for low power
•
  Standard Xadow outline

---

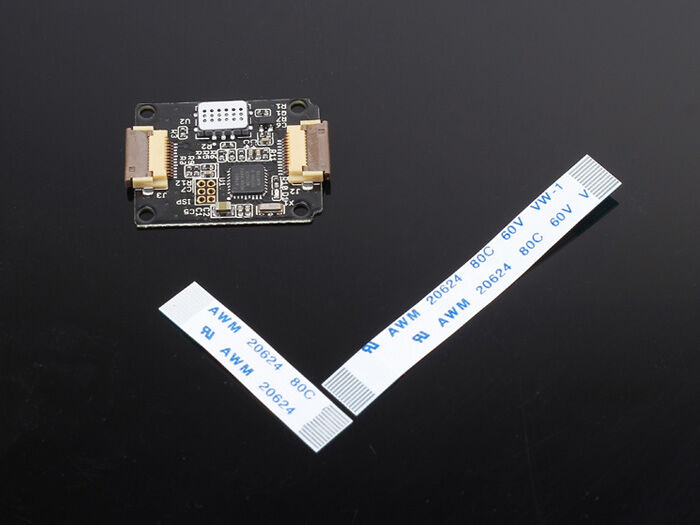

• PART LIST

•
  1 x Xadow – Multichannel Gas Sensor
•
  1 x FPC Cable;12P-0.5-30mm
•
  1 x FPC Cable;12P-0.5-50mm

---

• SPECIFICATION

•
  Voltage: 3.1~3.5V
•
  Ripple(@Max Power):80~100mV
•
  Max Heating Power: 88mW
•
  Max Power: 150mW
•
  ADC Precision : 10Bits
•
  ADC Voltage:0~3.3 V
•
  I2C Rate: 100kHz
•
  VIL(@I2C): -0.5~0.99V
•
  VIH(@I2C): 2.31~3.8V

---
