Description

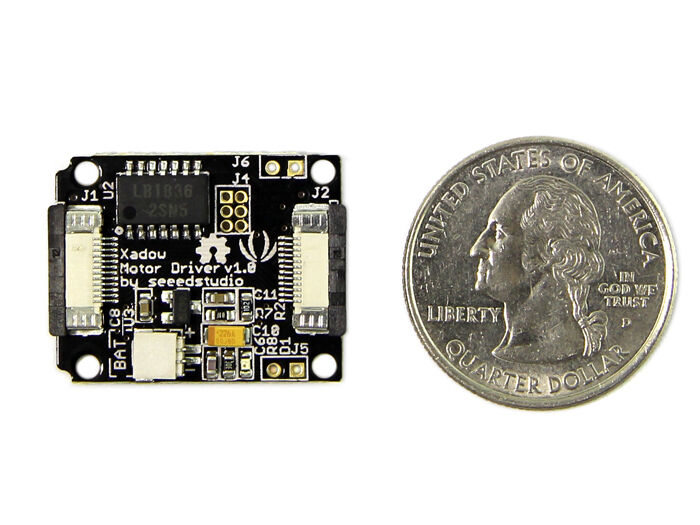

Xadow Motor can be used to control DC Motors. Its heart is a low-saturation two-channel bidirectional motor drive chip LB1836M, controlled by ATmega168 which handles the I2C communication with Xadow Main Board. Xadow Motor features a changeable I2C address. And it needs a separate low power to drive motors.
Xadow is a though small but perfectly formed Arduino(TM) compatible board series containing several modules. It's a kit extremely suitable for space-sensitive projects such as wearable devices & arts designs, which have higher request on size, weight and flexible cascade connection. You can find more modules here.
Note: This module is not compatible with any other Xadow version 2 or RePhone modules.
SPECIFICATION
- • Motor Driver: LB1836M
- • Battery Voltage: 2.5V ~ 9V
- • Output Current per channel(Max): 300mA
- • Communication Mode: I2C
- • I2C Address is changeable
