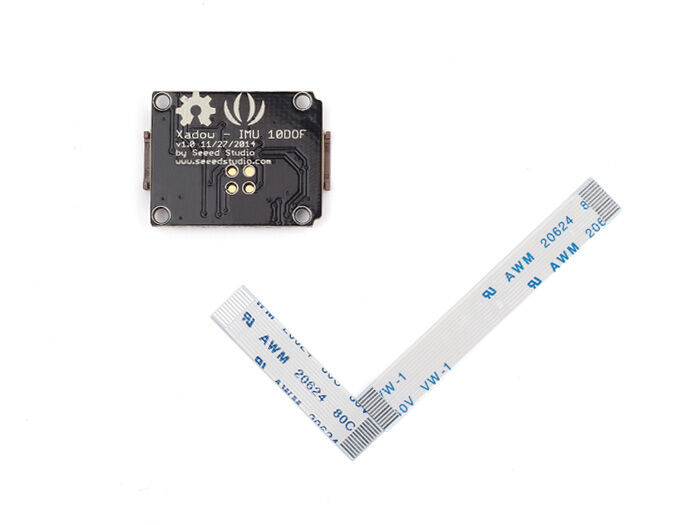

Xadow – IMU 10DOF

Description

This product is retired, please consider our Xadow Basic Sensors as your alternative choice.

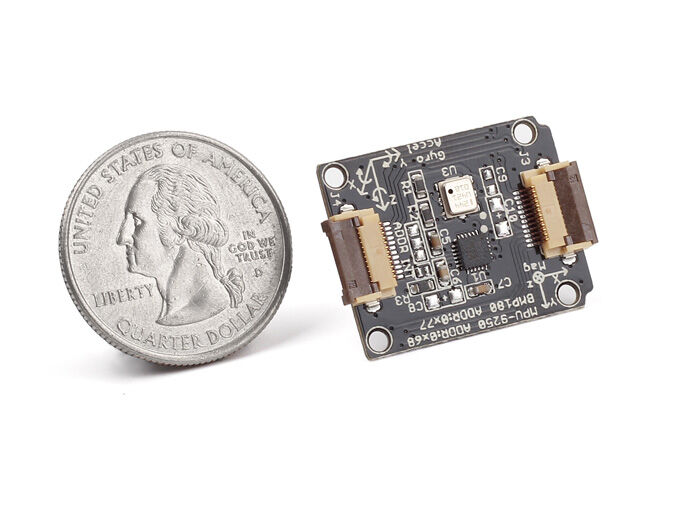

Xadow – IMU 10DOF is based on MPU-9250 and BMP180, it combines a 3-axis gyroscope, 3-axis accelerometer, 3-axis magnetometer and barometer in standard Grove module. Total 10 degrees of freedom make it suitable for mobilephone, aircraft, smart watch etc.

Notice: This module is not compatible with any other Xadow version 2 or RePhone modules.

KEY FEATURES

•  – 10 Degrees of Freedom
•
   – 3-Axis angular rate sensor (gyro) with a sensitivity up to 131 LSB and a full-scale range of ±250, ±500, ±1000, and ±2000dps
•
   – 3-Axis accelerometer with a programmable full scale range of ±2g, ±4g, ±8g and ±16g
•
   – 3-axis compass with a full scale range of ±4800µT
•
   – Wide pressure detecting range of 300~1100hPa(+9000m ~ -500m relating to sea level)

---

• SPECIFICATION

•
   – Working Voltage: 3.3V
•
   – MPU-9250 address selectable Low Power
•
   – Control Mode: IIC
•
   – 400kHz Fast Mode I²C serial host interface
•
   – Operating Temperature：-40 ~ +85°C

---
