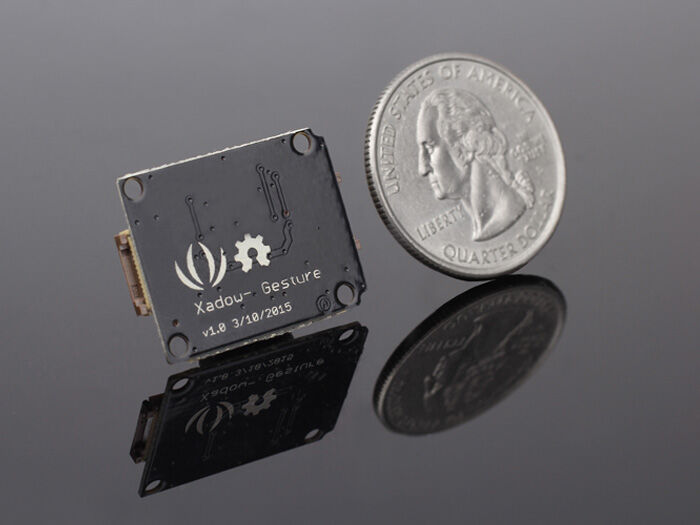

Xadow – Gesture v1.0

Description

The sensor on Xadow – Gesture v1.0 is PAJ7620U2 that integrates gesture recognition function with general I2C interface into a single chip. It can recognize 13 gestures including move up, move down, move left, move right, move forward, move backward,circle-clockwise, circle-counter clockwise, up to down ,down to up,left to right ,right to left and wave. These gestures information can be simply accessed via the I2C bus.

Notice: This module is not compatible with any other Xadow version 2 or RePhone modules.

FEATURES

•  – 13 gesture recognition
•
   – Gesture speed is 60°/s to 600°/s in Normal Mode and 60°/s to 1200°/s in     Gaming Mode
•
   – Ambient light immunity: < 100k Lux
•
   – Built-in proximity detection
•
   – I2C interface up to 400 kbit/s
•
   – Compatible with the Grove interface

---

• PART LIST

•

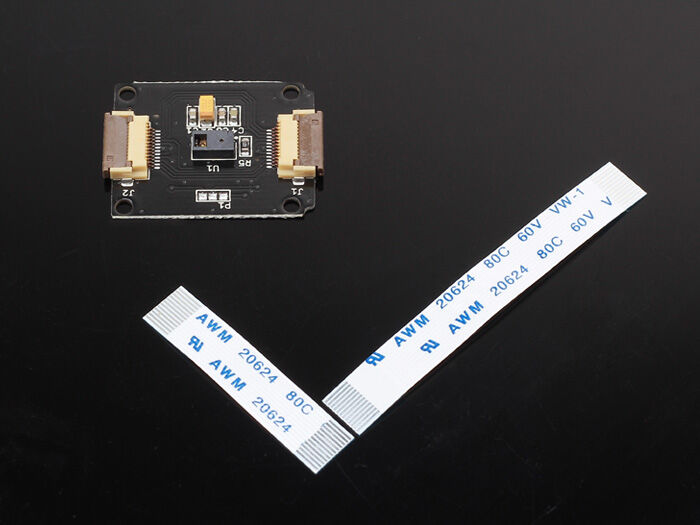

  1x PCBA – Xadow – Gesture
•
  1x FPC Cable;12P-0.5-30mm
•
  1x FPC Cable;12P-0.5-50mm

---

• SPECIFICATION

• Sensor :PAJ7620U2
• Power supply:2.8V to 3.3V and I/O voltage is 1.8V~3.3V
• Compatible: Xadow interface
• interface:IIC
• Operating Temperature: -40&deg;C to +85&deg;C
• Dimensions: 25 * 20mm

---
