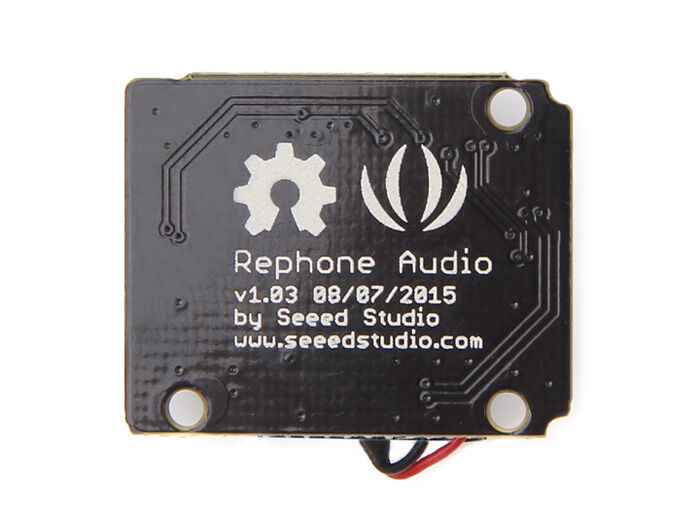

Xadow Audio

Description

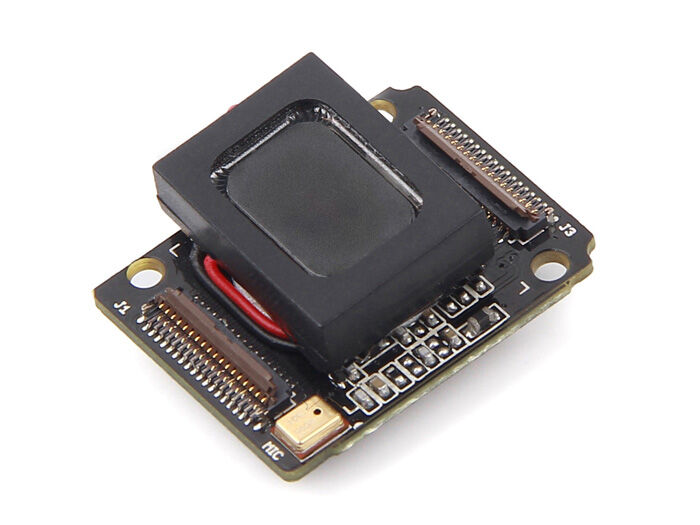

The Xadow Audio integrates a speaker box and a microphone on one single board. The speaker unit is rated at 0.7Watt with an impedance of 8 ohm. Unlike the common cone type speakers, the loudspeaker driver used on the Xadow Audio has a flat surface and is mounted in a rectangular enclosure, which enables it to reproduce sounds at an amazing effect.

Include

• Xadow Audio *1

• FPC Cable 35 PIN * 2

Features:

• Open source and modular design

• Built-in enclosure for speaker

• Combines speaker and microphone on one board

• Built-in Xadow Connectors for easy pluggable FPC cables

• Stackable and chainable with other Xadow Modules

• Perfect choice for your audio and DIY Phone projects

Speaker Box:

Resonant Frequency: 900 Hz

Impedance: 8±20% Ω

Rated Power: 0.7 W

MAX. Power: 1 W

Frequency Range: 900 Hz to 20 kHz

Microphone:

Microphone Sensitivity: -42dBV Typ.

Max Input Sound Pressure: 130dB SPL

Dimensions:

Speaker: 13mm X 18mm X 4.5mm / 0.51” X 0.71” X 0.18”

Microphone: 2.95mm X 3.76mm / 0.12” X 0.15”

Board: 25.37mm X 20.30mm / 1’’ X 0.8’’
