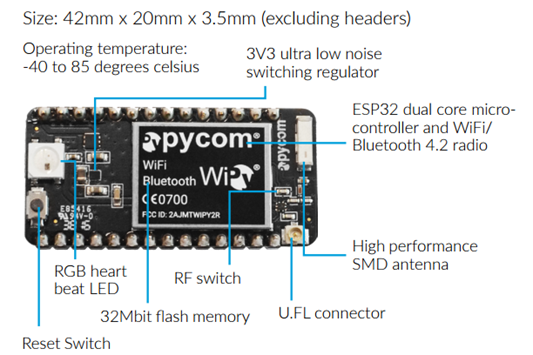

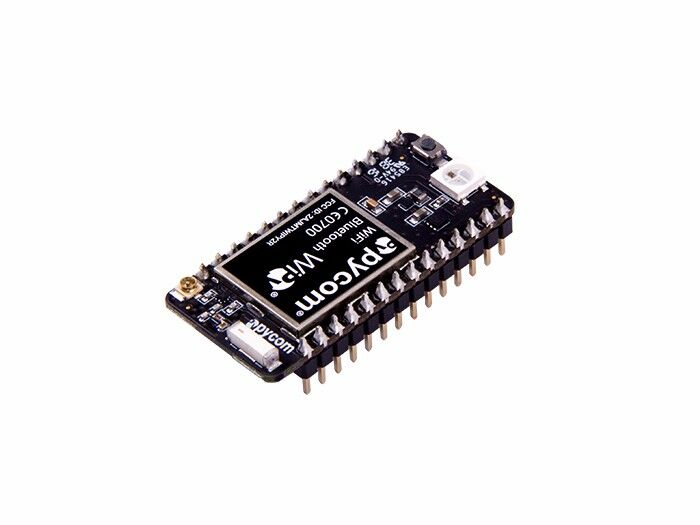

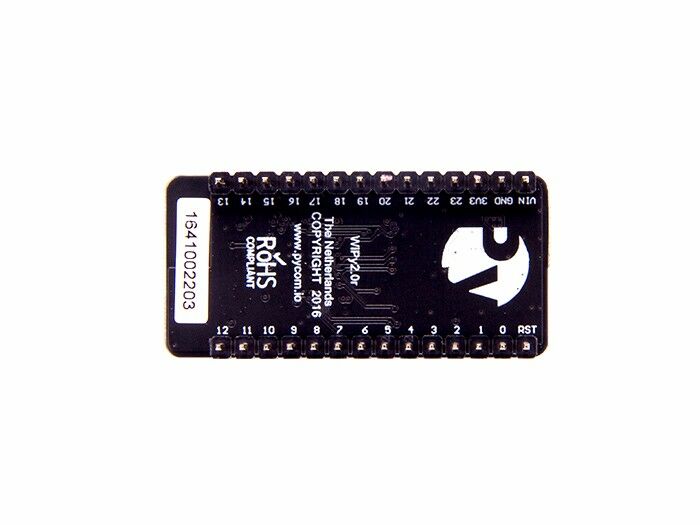

WiPy 2.0

Description

WiPy 2.0, The tiny Micro Python enabled WiFi & Bluetooth IoT development platform. With a 1KM WiFi range, state of the art Espressif ESP32 chipset and dual processor, the WiPy is all about taking the Internet of Things to the next level.

Features

Basic

• Powerful CPU, BLE and state of the art WiFi radio

• 1KM Wi Range

• MicroPython enabled, the Linux of IoT for fast deployment

• Fits in a standard breadboard (with headers)

• Ultra-low power usage: a fraction compared to other connected micro controllers

• Hardware floating point acceleration

• Python multi-threading

• 2 x UART, 2 x SPI, I2C, I2S, micro SD card

• DMA on all peripherals

Processing

• Espressif ESP32 chipset

• Dual processor + WiFi radio System on Chip.

• Network processor handles the WiFi connectivity and the IPv6 stack.

• Main processor is entirely free to run the user application.

• An extra ULP-coprocessor that can monitor GPIOs, the ADC channels and control most of the internal peripherals during deep-sleep mode while only consuming 25uA.

Mechanical
