Description
Please consider Wifi Shield (Fi250) V1.1 as alternative product

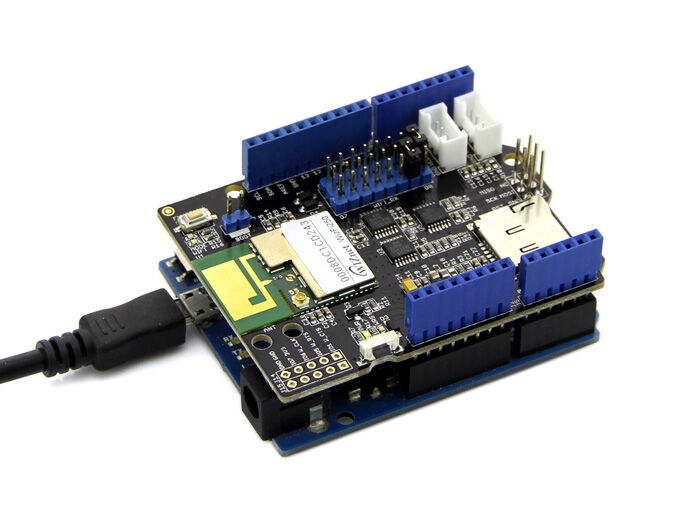

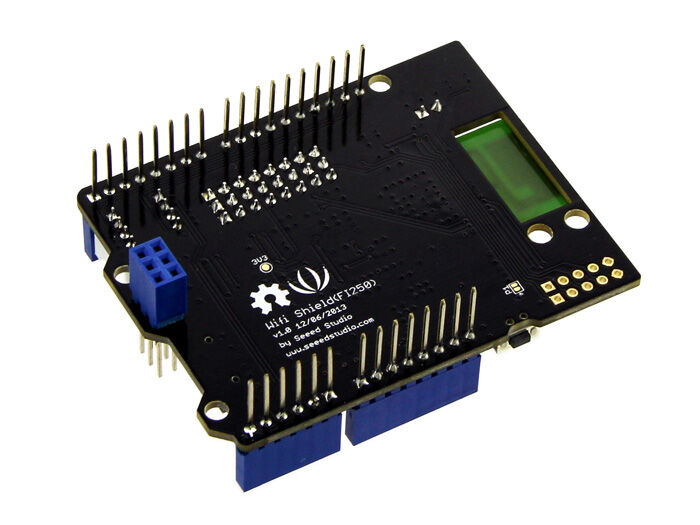

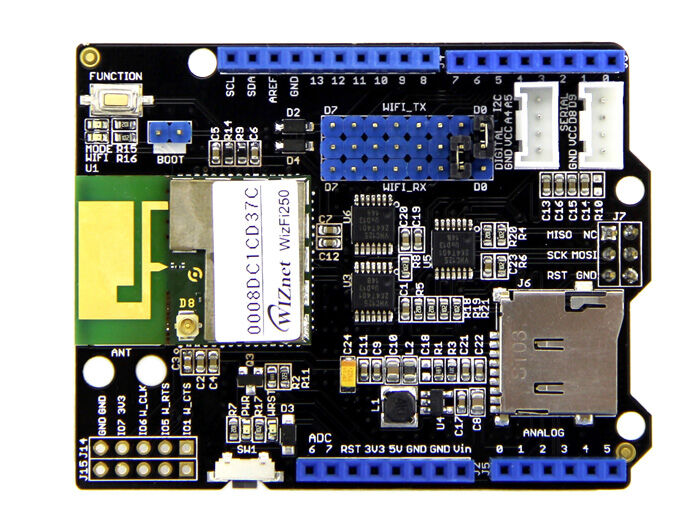

Wifi shield （Fi250）is a economic internet solution with Arduino. The Wi-Fi module support IEEE 802.11b/g/n mode, maximum speed up to 65Mbit/s. Wifi shield (Fi250) combine on board antenna; it’s easy to build you project in a small box. The module reserve a UFL connector, you can use an extra antenna to improve the signal range. There is a key on the board, just push one time to change wifi shield as AP mode. The module have a computer interface software, you can control and upgrade the module via USB-UART convertor. The wifi shield contain a Micro SD card socket, it’s like a recorder when wifi shield working as TCP, UDP server.
Specification：
- Module WIZnet FI250
- Operating Voltage 5V or 3.3V (Auto select)
- Current 300mA (maximum)
- Single band 2.4GHz IEEE 802.11b/g/n
- Antenna On board PCB antenna (reserver UFL connector)
- Memory 1MB Flash Memory, 128KB SRAM, 1MB Serial Flash
- Interface UART(default)/SPI(upgrade firmware)
- Dimensions 69.0×53.5×23.5 mm
Related Part Number：
Compatibility：
- Arduino
- Seeeduino
- Grove
Application：
Document:
