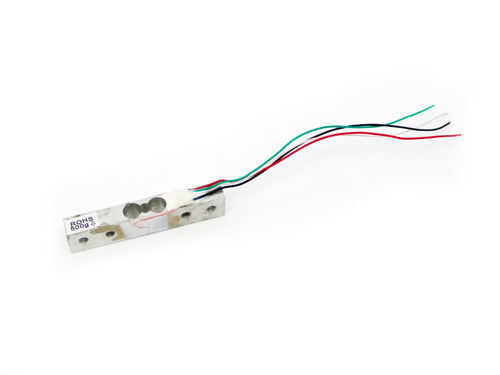

Weight Sensor (Load Cell) 0-500g

Description

Applicable to electronic scale, price computering scale, electronic platform scale, digital scale; parcel post scale, electronic balance and all varieties of commercial scales by single load cell.

Specifications

• Capacity g 500g

• Output sensitivity mv/v 0.5±0.1

• Nonlinearity %.F.S 0.05

• Hysteresis %F.S 0.05

• Repeatability %F.S 0.05

• Creep(30min) %.F.S 0.05

• Temperature effect on sensitivity %F.S/10℃ 0.05

• Temperature effect on zero %F.S/10℃ 0.05

• Zero balance %F.S ±0.5

• Input resistance Ω(ohms) 1120±10

• Output resistance Ω(ohms) 1000±10

• Insulation resistance MΩ(ohms) ≥2000

• Recommended excitation voltage v 5v

• Method of connecting wire red： Exc + black： Exc –

• green： Sig + white：Sig –

• Dimension(mm): 45 x 9 x 6
