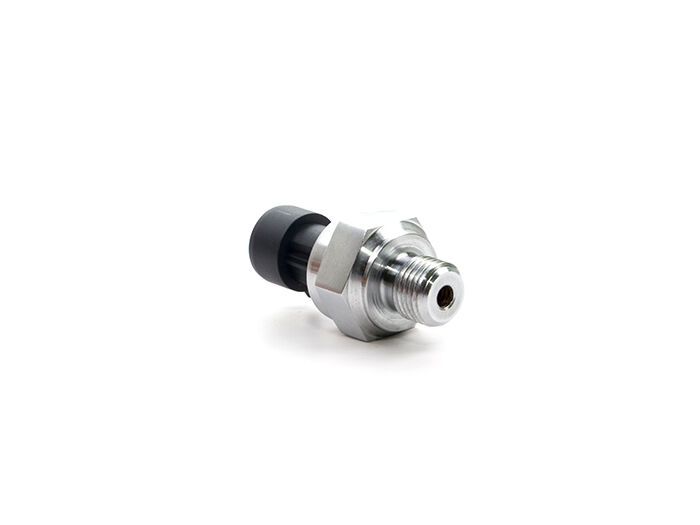

Water Pressure Sensor G1/4 1.2MPa

Description

This is a pressure measuring sensor. You can use it in clean, non-corrosive gas and liquid.

Features

• Compact, Easy to Install
• High Sealing Performance
• High Quality Hall Effect Sensor
• RoHS Compliant

Specifications

• Wokring Voltage(VCC): DC 5±0.5V
• Working Current: ≤10mA (DC 5V)
• Output Voltage(Vout): DC 0.5~4.5V

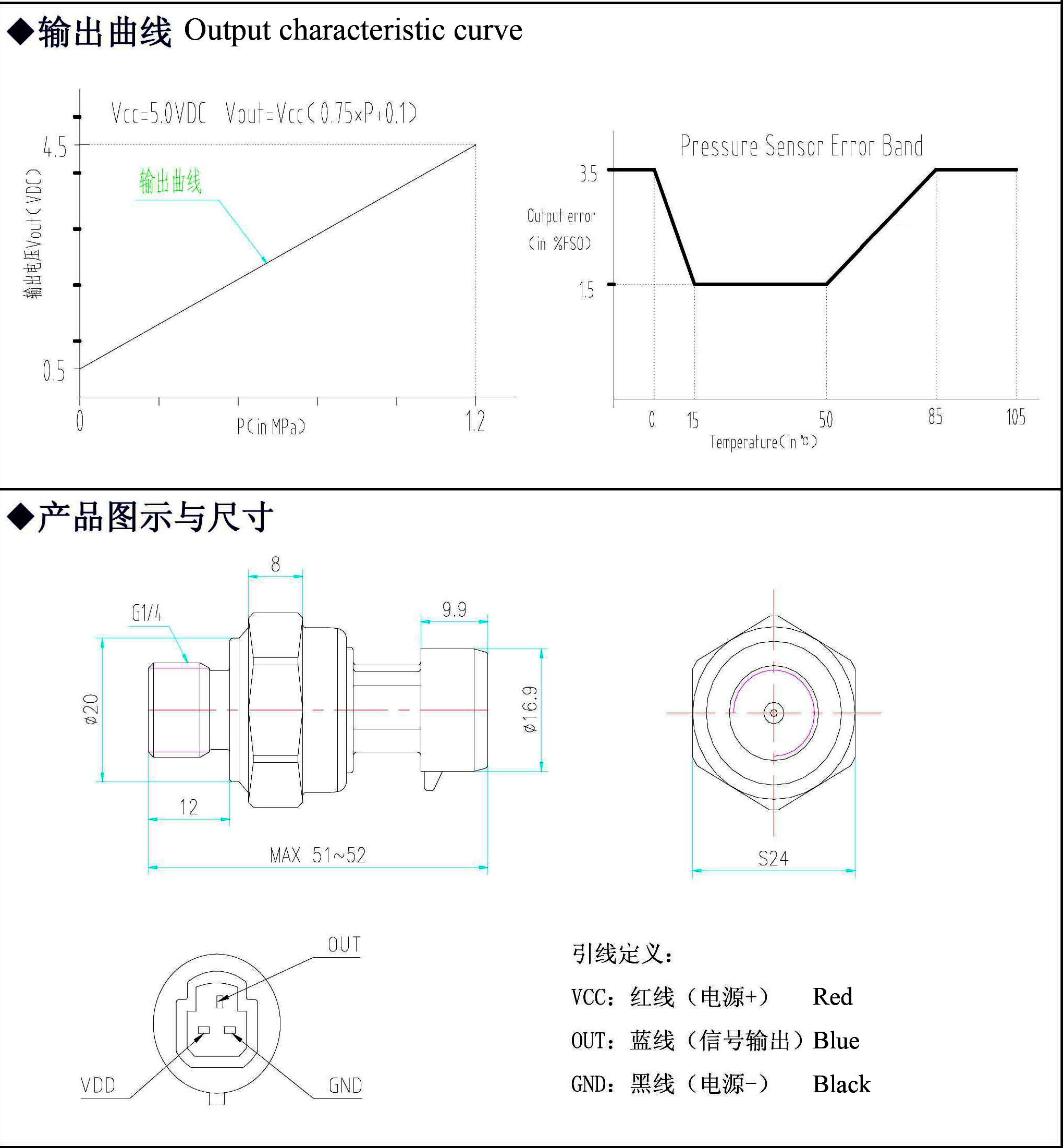

• Vout = VCC x (0.75 x P + 0.1), P is Pressure.
• Working Pressure Rate Range: 0~1.2Mpa
• Max. Pressure: 2.4Mpa
• Destructive pressure: 3.0Mpa
• Working Temperature: -20～+ 105℃
• Storage Temperature: -20～+ 105℃
• Measurement Accuracy: ±1.5%FS
• Response Time: ≤2.0ms
• IP65
• Cycle Life: 1,000,000 pcs

Partlist

1 x Water Pressure Sensor
