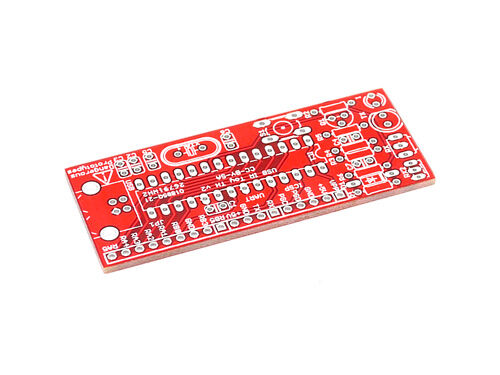

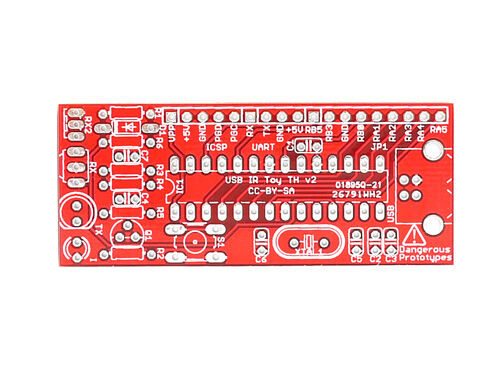

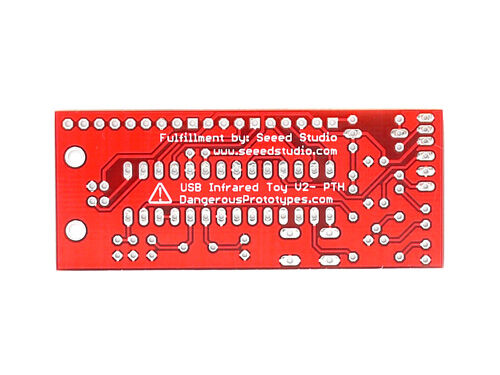

USB Infrared Toy through hole PCB

Description

An all through-hole version of USB Infrared Toy receiver/transmitter. It's the same as the assembled surface-mount IR Toy, but with a couple additions:

• Raw infrared signal detector for frequency measurement

• Breakout area with all the unused pins

We have the PCB, but you'll need to get your own parts.

License: CC-BY-SA

Links

• USB Infrared Toy though-hole version manual

• USB Infrared Toy resources
