Description

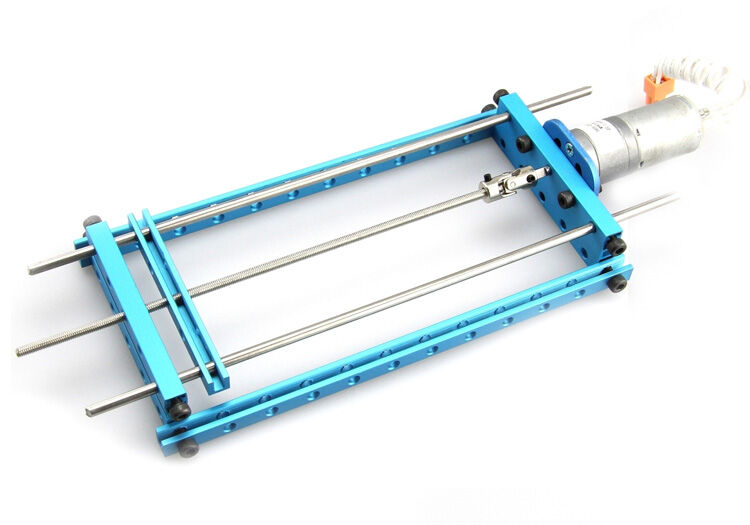

This pack included two Fully Threaded Rods, two Linear Motion Shaft, a Universal Joint and a Thread Drive Beam.(Other beams and the motor in the last picture are not included.)

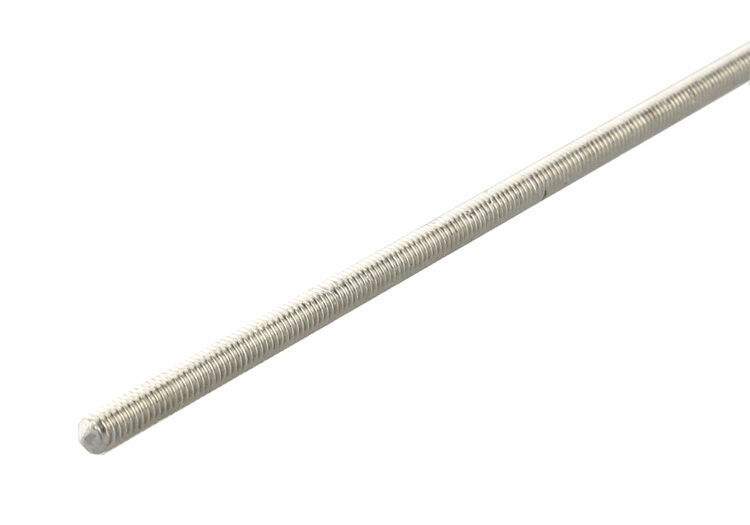

1.Fully Threaded Rod M4x192mm/M4x280mm
Features:
- Made of steel, zinc plated.
- Lengh: 192mm/280mm
Size Charts(mm):
2.Linear Motion Shaft 4x288mm
Features:
- Made of tainless Steel
- Can drill into 4mm holes. Compatible with Thread Drive Beam
- Lengh: 288mm
Size Charts(mm):

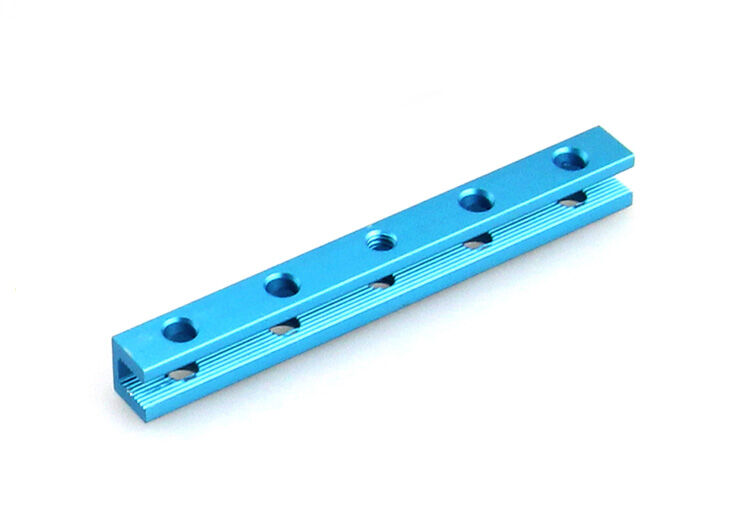

3.Thread Drive Beam
Features:
- Made from 6061 aluminum extrusion, anodized surface. Excellent strength and twist resistance.
- With thread hole in the middle that compatible with the Fully Threaded Rod.
- Other holes without thread can be drilled for 4mm shaft.
- Threaded slot enables easy and flexible connection.
- Cross-sectional area 8x8mm, length 80mm.
Size Charts(mm):
4. Universal Joint 4x4mm
Features:
- Material: stainless steel
- Max deflection angle: 45°
- Size: D9*Φ4*Φ4*M3*L22mm
- 2 Headless Set Screw included
Size Charts(mm):
Part list:
- 1x Fully Threaded Rod M4x192mm
- 1x Fully Threaded Rod M4x280mm
- 2x Linear Motion Shaft 4x288mm
- 1x Thread Drive Beam
- 1x Universal Joint 4x4mm
- 2x Headless Set Screw M3x5
