Name: Sipeed Longan Nano - RISC-V GD32VF103CBT6 Development Board with Acrylic Case
SKU: 102991302
Price: 4.9 USD
Availability: OutOfStock

Description

Note

We’ve just released the Wio Lite RISC-V (GD32VF103) – With ESP8266, which is a GD32 MCU based RISC-V board. With the onboard WiFi and Lipo charging circuit, it is more suitable for IoT applications.

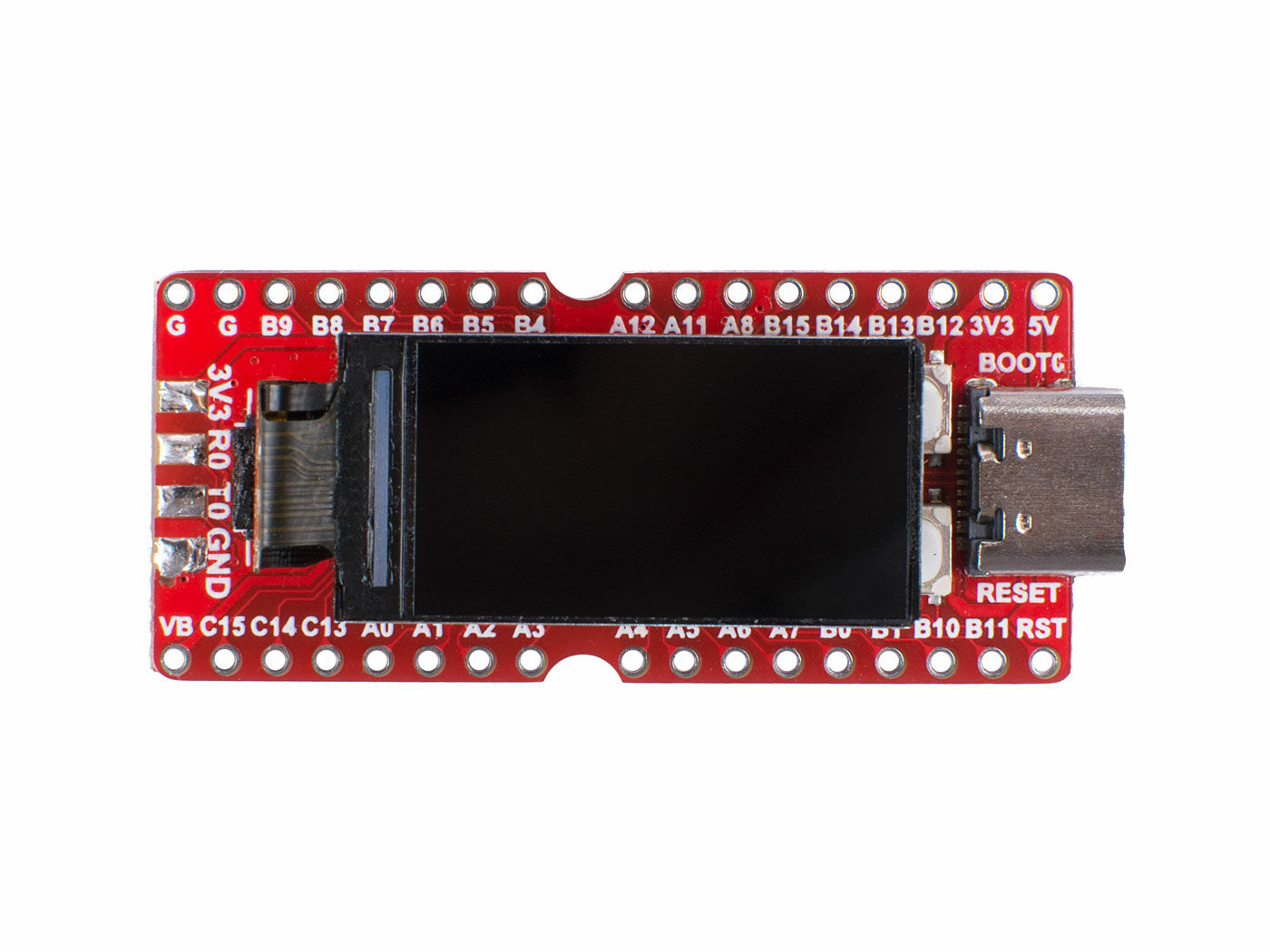

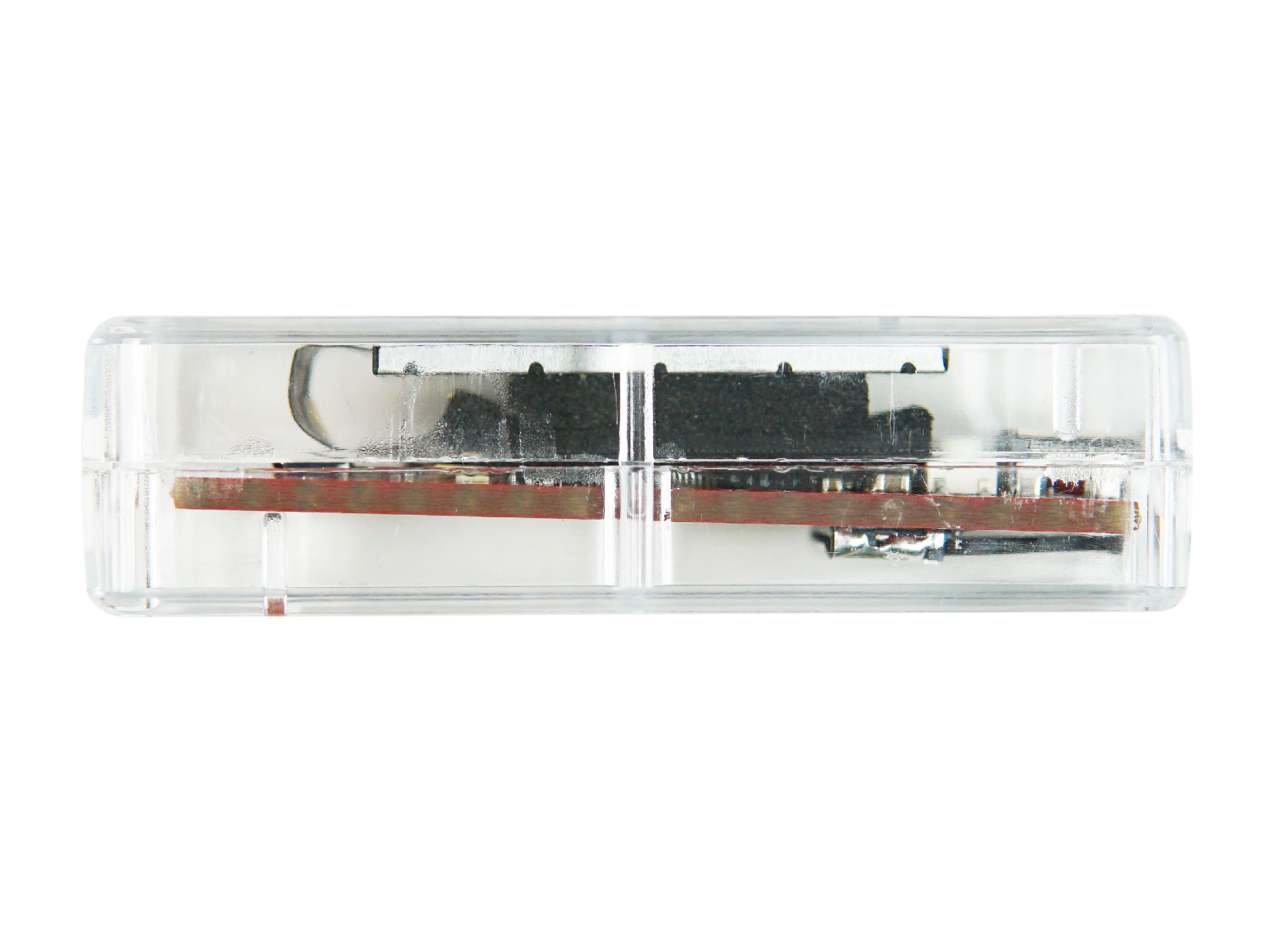

Sipeed Longan Nano is a development board based on GD32VF103CBT6 MCU with RISC-V 32-bit core of GigaDevice. It is convenient for students, engineers and geek enthusiasts to contact the new-generation RISC-V processor. Longan Nano sold by Seeed comes with a 0.96inch 160×80 IPS RGB LCD and an acrylic transparent case.

GD32VF103CBT6 is a Bumblebee core based on Nuclei System Technology. Support RV32IMAC instruction set and ECLIC fast interrupt function. Core power consumption is only 1/3 of that of traditional Cortex-M3.

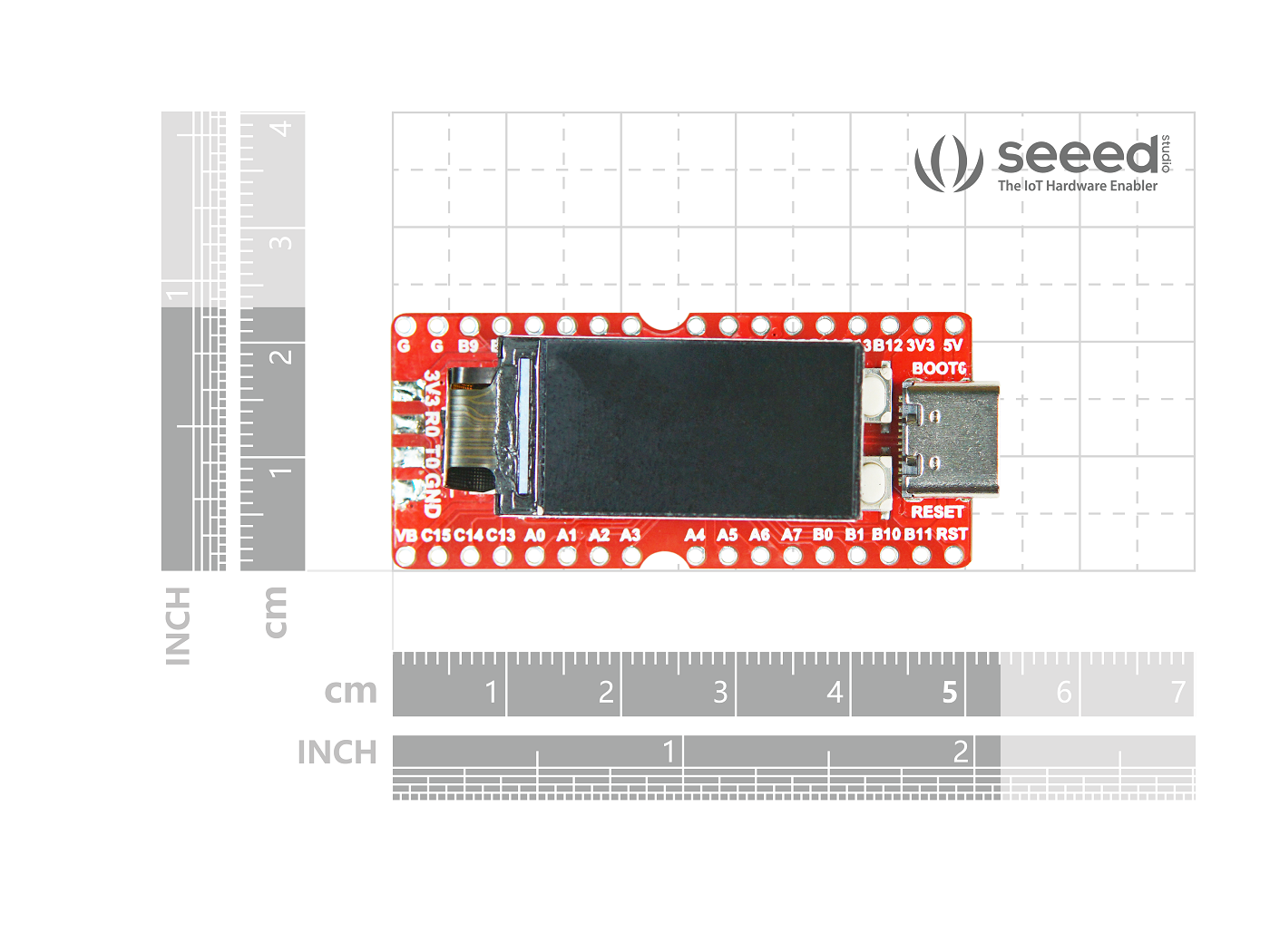

Longan Nano development board, double-row pin layout design, needle spacing 700 mil, can be inserted directly into breadboard; on-board 8M passive crystal oscillator, 32.768 KHz RTC low-speed crystal oscillator, Mini TF slot, and use Type-C USB interface.

Longan Nano supports multiple download methods: USB DFU download, UART ISP download, JTAG download. In the USB DFU download mode, you only need a USB Type-C cable to download the program to the development board. At the same time, Longan Nano supports the standard JTAG interface, which can be debugged online using the in-store RISC-V debugger or any JTAG-enabled debugger such as J-Link.

Meanwhile, Sipeed has adapted the PlatformIO IDE for the Longan Nano development board, which can be visually developed on multiple platforms such as Windows/Linux:

https://github.com/sipeed/platform-gd32v

Features

Chip built-in 128KB Flash, 32KB SRAM
4 x general purpose 16-bit timer, 2 x basic 16-bit timer, 1 x advanced 16-bit timer
Watchdog, RTC, Systick
3 x USART, 2 x I2C, 3 x SPI, 2 x I2S, 2 x CAN, 1 x USBFS (OTG)
2 x ADC (10 channel), 2 x DAC

specifications

SPECIFICATION
CPU	GD32VF103CBT6 based on RISC-V 32-bit core
Kernel power consumption	Only 1/3 of the traditional Cortex-M3
Chip built-in	128KB Flash, 32KB SRAM
Peripheral	● 4 x general purpose 16-bit timer, 2 x basic 16-bit timer, 1 x advanced 16-bit timer ● Watchdog, RTC, Systick ● 3x USART, 2 x I2C, 3 x SPI, 2 x I2S, 2 x CAN, 1 x USBFS (OTG), ● 2 x ADC (10 channel), 2 x DAC
SOFTWARE
IDE	PlatformIO IDE, Support debugging, Arduino
Compile Toolchain & Debugger	GCC, OpenOCD
Operating system	RT-Thread、LiteOS
HARDWARE
Storage expansion	Short body TF card slot
Display expansion	8pin 0.5mm FPC Block Expansion 160×80 RGB IPS LCD (SPI Interface)

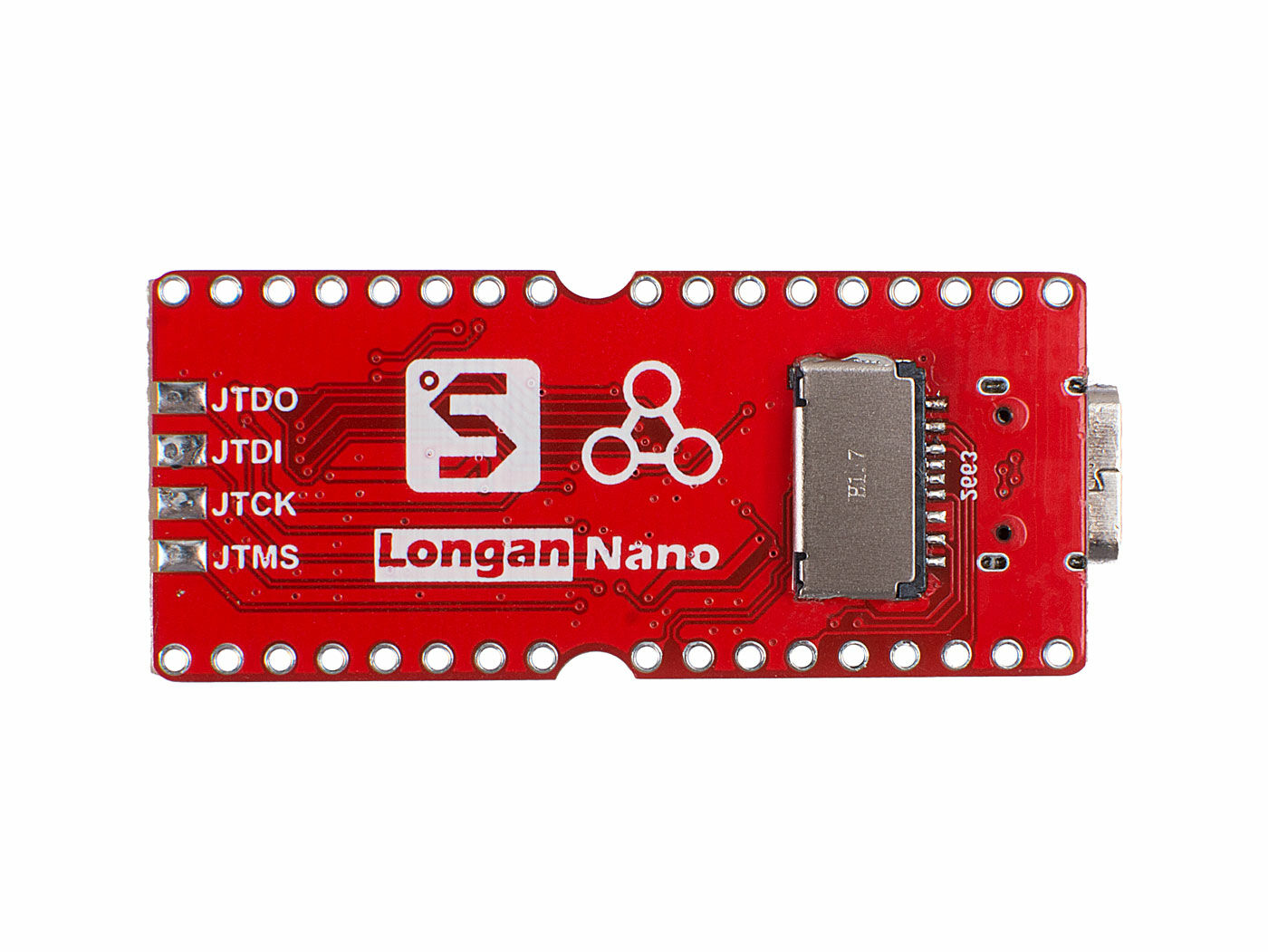

Debug interface	2×4 pin leads to JTAG debug interface
Connector	Double row 2.54 pitch pin
Crystal	8MHz Passive High Speed Crystal +32.768KHz Low Speed RTC Crystal
