LCD 20*4 Characters – White back light

Description

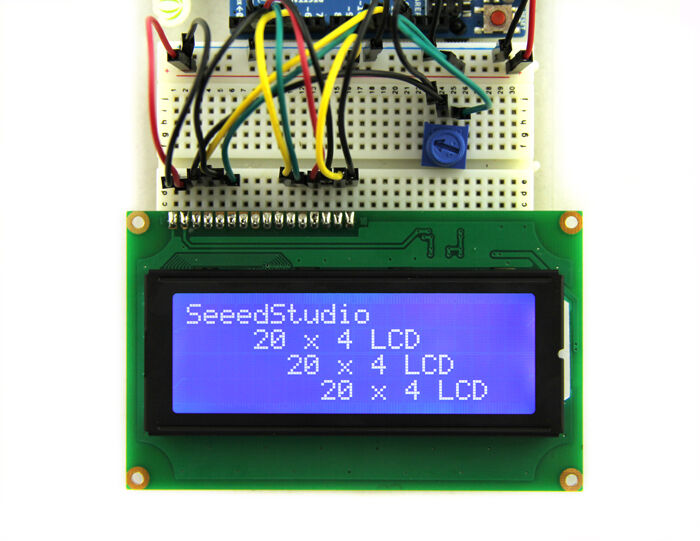

A bigger LCD than 16×2 LCD, this LCD is a 20 character by 4 line display with white text on blue background. With the same 16-pin interface as HD44780 driver, it is also fully compatible with Arduino LiquidCrystal library.

Specifications

• Compatible with Arduino LiquidCrystal Library

• LCD Display Mode: STN, Positive, Transflective

• Viewing Angle: 6:00

• Driving Method : 1/16 duty, 1/5 bias

• Back Light : Blue LED Backlight

• Text Color: White

• Outline Dimension: 98 x 60 x 14 MAX

• Character Res: 20 x 4

• Driver Voltage: 5 VDC
