Description
Note： One chance per customer, limited to 50 sets, first come, first served.
1. Select Products: “*” indicates required items, without “*” are optional.
2. Add to cart.
3. Click “Proceed to Checkout” and enter your details.
4. Apply discount: Select “Promotional Codes” and enter “SENSECAPWKD” for savings.
To enable you to better experience the features of different plans, we offer different kits:
- Industrial IoT 4G Cellular Kit

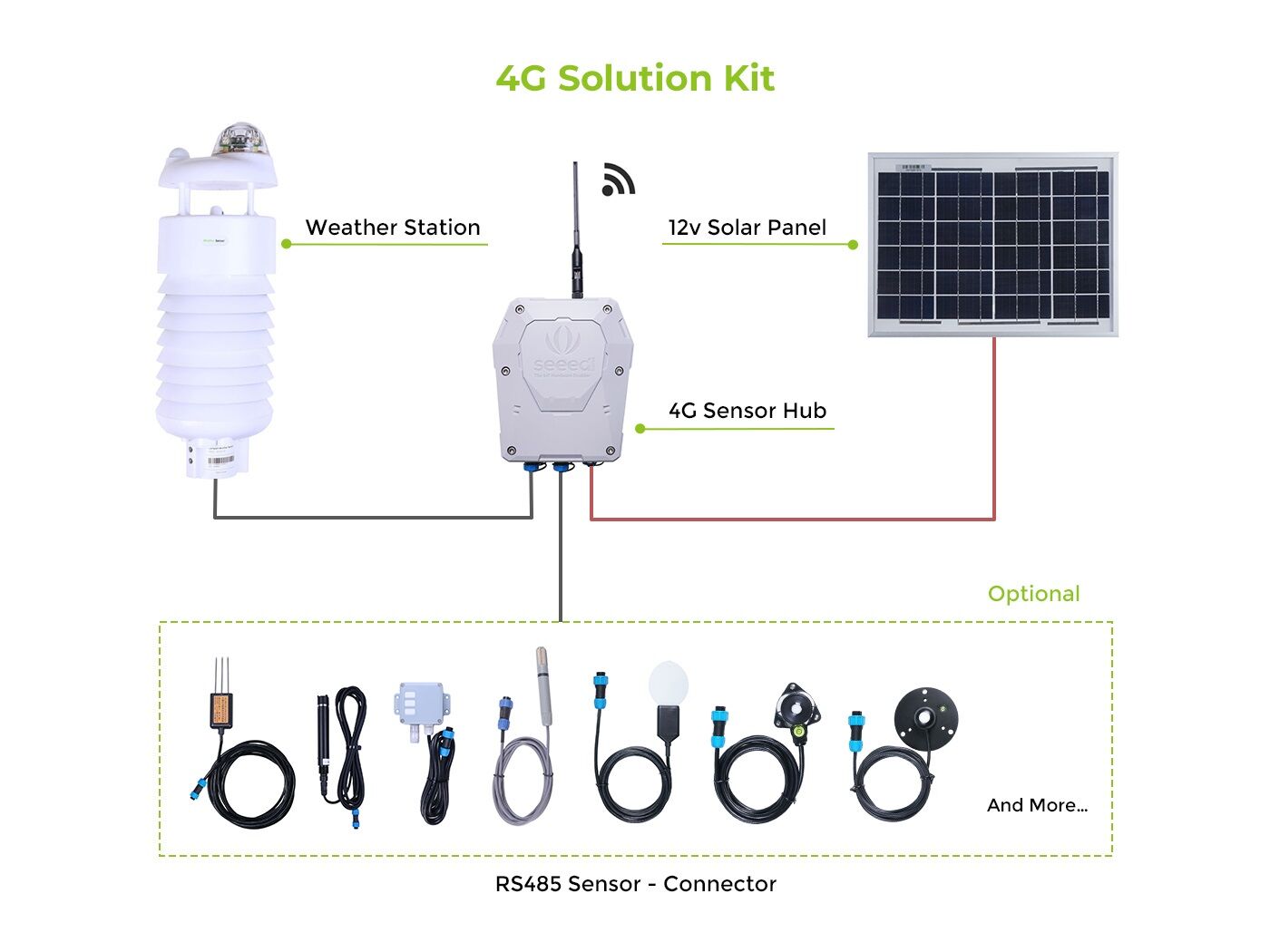

Unveiling Our 4G Solution Kit: Elevate Your IoT Journey! Purchase this kit, and insert your SIM card into the 4G Sensor Hub for personalized network coverage. Seamlessly connect SenseCAP ONE Weather Sensor via RS485, and effortlessly gather and transmit data to your chosen cloud platform. You also have the option to purchase solar panels and a variety of RS485 sensors to enhance your IoT solution.
Introducing SenseCAP ONE Weathe Sensor V2 with a sensor capturing up to 10 environmental data types. Buy our IoT solution, join our device experience program, and get a 50% discount coupon, saving up to $1000! Limited to 50 sets – act quickly!
The following table shows the details of the optional MODBUS RS485 Sensors:
|
SKU |
Product |
Measurement Objects |
Range |
Resolution |
Accuracy |
|
101991029 |
Carbon Dioxide |
0 ~ 10000ppm |
1ppm |
±(50ppm+3%*MV） |
|
|
Air Temperature |
-40~85°C |
0.01°C |
±0.2℃ |
||
|
Air Humidity |
0~100%RH |
0.01%RH |
±1.8%RH |
||
|
314990620 |
Soil Temperature |
-40℃ ~ +80℃ |
0.1℃ |
± 0.5 ℃ |
|
|
Soil Moisture |
From completely dry to fully saturated (from 0% to 100% of saturation) |
1% |
±3% (0~53%) ±5% (53~100%) |
||
|
314990621 |
Soil Temperature |
-40℃ ~ +80℃ |
0.1℃ |
± 0.5 ℃ |
|
|
Soil Moisture |
From completely dry to fully saturated (from 0% to 100% of saturation) |
1% |
±3% (0~53%) ±5% (53~100%) |
||
|
Electrical Conductivity |
0 ~ 10000 μs/cm |
10 μs/cm |
± 3% |
||
|
314990622 |
pH |
0 – 14PH |
0.01PH |
+/- 0.1PH |
|
|
101990860 |
Slight corrosive liquid (water, edible oil, etc.) |
0 ~ 5 meters |
|
± 0.25%F.S |
|
|
314990735 |
PAR |
0 ~ 2500 μmol/m²·s |
1 μmol/m²·s |
|
|
|
314990742 |
EC(Isolated Sensor Input) |
0 – 20000us/cm |
0-10000us/cm, 10us/cm; 10000~20000 us/cm, 20000us/cm, 50us/cm |
0-10000us/cm, ±3%; 10000-20000us/cm, ±5% |
|
|
Temperature |
-40~80°C |
0.1°C |
±0.5°C |
||
|
314990738 |
Leaf wetness |
0-100% |
0.1% |
5% |
|
|
Temperature |
-40~80°C |
0.1°C |
±0.5°C |
||
|
314990740 |
Illuminance |
0～200000 Lux |
1lux |
±6% |
|
|
314990633 |
Dissolved Oxygen |
0～20.00mg/L(0～200% saturation，25℃) |
0.01mg/L，0.1℃ |
±2%F.S.，±0.3℃ |
|
|
101990862 |
Ammonia |
0~100 ppm |
0.1 ppm |
typ. ±5%F.S, max ±10%F.S |
|
|
Temperature |
-40~50 °C |
0.1 °C |
± 0.5 °C |
||
|
Humidity |
10~95 %RH |
0.1 %RH |
± 5% |
||
|
101990863 |
H2S |
0~100 ppm(Minimum detection limit:1ppm) |
0.1 ppm |
± 5% F.S |
|
|
Temperature |
-40~85 °C |
0.1 °C |
± 0.2 °C |
||
|
Humidity |
10~95 %RH(non-condensation) |
0.1 %RH |
± 2% |
||
|
101990882 |
Humidity |
0-100%RH |
0.01% |
±3%RH |
|
|
Temperature |
-40~80℃ |
0.01℃ |
±0.3℃ |
Plug-and-Play Connectivity Solution by SenseCAP
For quick data acquisition and plug-and-play convenience, SenseCAP offers different networking solutions.
SenseCAP is dedicated to providing plug-and-play industrial-grade IoT products, ensuring users swiftly access necessary data. Choose between 4G cellular or LoRaWAN wide-area wireless solutions based on your needs.
Why choose the 4G solution
SenseCAP Sensorhub is a 4G data collector for remote areas data collection. With extensive cellular coverage, it enables remote data transmission in areas with no or unstable networks. It reliably monitors weather, water quality, and soil humidity, ensuring timely data transmission for analysis. The solution’s solar power capability ensures stable operation, reducing maintenance costs. The Sensorhub supports integration with any RS485 Modbus-RTU sensors, easily configurable for quick setup and usage.
Explore other solutions: LoRaWAN® Solution Kit
In addition to 4G connectivity solutions, SenseCAP offers advanced LoRaWAN solutions. To learn more about this solution, please click here.
Now, when it comes to selecting the right solution for your specific applications, it’s essential to consider your unique requirements. Let’s briefly compare the advantages of our 4G and LoRaWAN solutions:
|
4G Solution |
LoRaWAN® Solution |
|
|
Connectivity |
Cellular coverage (4G/3G/2G) for connectivity. |
LoRaWAN® Network |
|
Deployment |
Site-based centralized data collection, capable of collecting ten or more measurement values within a range of several tens of meters. |
LoRaWAN’s distributed deployment collects diverse environmental data over several kilometers. Unlike 4G, it reduces costs for the widespread use of numerous devices. |
|
Power supply |
Solar-powered with built-in battery backup for continuous operation. |
Low power consumption, battery-powered, with a single deployment lasting 5 to 10 years. |
|
Expansion |
Compatibility with sensors from different manufacturers (RS485 Modbus-RTU). |
Compatibility with sensors from different manufacturers (RS485 Modbus-RTU, Analog, and I/O input ) |
|
IP66 |
Suitable for long-term outdoor use. |
Suitable for long-term outdoor use. |
View data on the SenseCAP cloud within 5 minutes.
We also provide software and cloud services for quick configuration, making it easy to deploy Sensor Hub and manage devices and data:
SenseCAP Portal is a web-based platform for you to manage the devices, data, and access keys conveniently.
SenseCAP Mate App (with iOS and Android) is provided for you to bind the devices to your account conveniently.
SenseCAP API is provided for you to simplify the implementation of your applications.
SenseCAP Dashboard allows you to create your own visualized application conveniently.

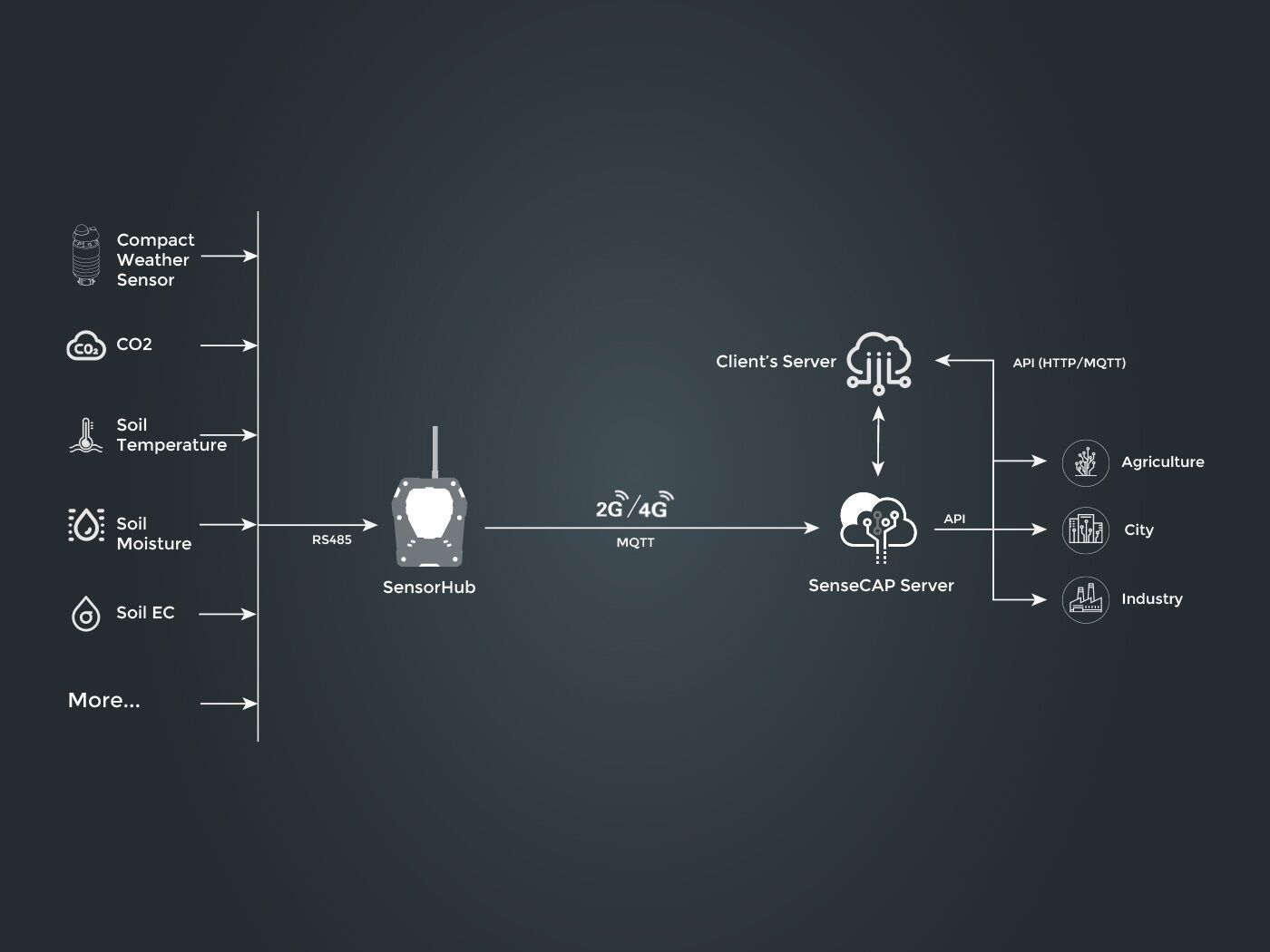

Direct Data Connectivity/Private Deployment Solutions:
- Retrieve data from the SenseCAP Portal.
SenseCAP provides an easy-to-use cloud platform for data transmission. Users can bind devices to their accounts by scanning QR codes using the mobile app, enabling device management and data viewing. The platform also offers complementary APIs, including MQTT, HTTP API and Data OpenStream API, for data access and integration.
- You can refer to the SenseCAP API Document for more details.
- Connect device data to the client-server directly.
- The 4G Sensor Hub can directly transmit data to customer servers via MQTT. For more information, please refer to the Developer Guide for Private MQTT Messaging of SenseCAP SensorHub.
- For LoRaWAN solutions, users can set up their own LoRaWAN Network Server, such as TTN, Chirpstack, Loriot, etc.
Installation and Deployment Instructions
For a seamless installation experience, we have prepared a detailed installation guide with step-by-step instructions to ensure easy setup.
Quick Start Guide for 4G & LoRa® Solution Demo Kit
Features of the New SenseCAP ONE Weather Sensor V2
- Comprehensive Monitoring: The SenseCAP weather sensor integrates high-precision sensors to monitor various parameters, including temperature, humidity, wind speed, wind direction, rainfall, and air quality.
- High-Precision Measurement: Advanced sensing technology ensures accurate and reliable data, meeting rigorous requirements for scientific research and real-time monitoring.
- Industry-Standard Design: With a -40℃ to 85℃ working temperature range and an IP66 protection rating, it is ideal for outdoor and harsh environments, offering UV, rain, and dust protection.
- Output interface: RS485 (MODBUS-RTU) / SDI-12
- Thermostatically-controlled heating system: Independent heating power supply for use in extremely cold environments
- Easy Installation: Designed for simplicity and quick setup, the device is plug-and-play, requiring no specialized knowledge. With easy operations, you can install and configure the weather station effortlessly.
- Versatile Application: From agriculture to meteorological research, environmental monitoring, and urban settings, the SenseCAP ONE Weather Sensor adapts to diverse scenarios and applications.
Application
- Smart Agriculture
- Smart City
- Power Transmission
- Renewable Energy
- Transportation and Traffic
SenseCAP solutions have been deployed globally in diverse scenarios, including smart city urban heat island monitoring in Cagliari, Italy; real estate construction site monitoring in Johannesburg, South Africa; smart lighting poles in Shenzhen, China; smart vineyard monitoring in western Portugal; and smart high mountain tea monitoring in Sichuan, China. To learn more, please click here.
SenseCAP Tech Support
Thank you for choosing our products! We are here to provide you with different support to ensure that your experience with our products is as smooth as possible.
seeed.cc – Latest Open Tech From Seeed
Bundle İçeriği
Weather Station (zorunlu)
- SenseCAP S700 V2 7-in-1 Compact Weather Sensor [SKU: 101991022]
- SenseCAP S500 V2 5-in-1 Compact Weather Station [SKU: 101991021]
- SenseCAP S800 8-in-1 Compact Weather Sensor [SKU: 101991023]
- SenseCAP S1000 V2 10-in-1 Compact Weather Sensor [SKU: 101991024]
Data Logger * (6 months free trial on SenseCAP Cloud Platform & Mate APP) (zorunlu)
- SenseCAP Sensor Hub 4G Data Logger – with built-in rechargeable battery version [SKU: 114992170] ✓
Power Supply
- High-efficiency Waterproof PV-12W Solar Panel, w/ Brackets for Easy Installation [SKU: 114992711]
RS485 Sensor
- Industrial PAR Sensor (S-PAR-02B) MODBUS-RTU RS485, with Waterproof Aviation Connector [SKU: 314990735]
- Industrial pH Sensor MODBUS-RTU RS485 & 0-2V Analog Voltage (S-pH-01B), with waterproof aviation connector [SKU: 314990622]
- Industrial Soil Moisture & Temperature Sensor MODBUS-RTU RS485, 0-2V Analog Voltage (S-Soil MT-02B), with waterproof aviation connector [SKU: 314990620]
- Industrial Soil Moisture & Temperature & EC Sensor MODBUS-RTU RS485 (S-Soil MTEC-02B), with waterproof aviation connector [SKU: 314990621]
- Industrial Leaf Wetness and Temperature Sensor (S-YM-01B), MODBUS RTU RS485, with Waterproof Aviation Connector [SKU: 314990738]
- Industrial Light Intensity Sensor, MODBUS-RTU RS485 &0-2V (S-Light-02), with Waterproof Aviation Connector [SKU: 314990740]
- Industrial EC & TDS Sensor MODBUS-RTU RS485 & 0-2V Analog Voltage with waterproof aviation connector [SKU: 314990742]
- Industrial Liquid Level Sensor MODBUS RS485 Aviation Connector [SKU: 101990860]
- RS485 MODBUS Dissolved Oxygen Sensor, Fluorescence DO Meter, Water Quality Monitoring [SKU: 314990633]
- Industrial-grade MODBUS RS485 NH3 Sensor – with Waterproof Aviation Connector [SKU: 101990862]
- Industrial-grade MODBUS RS485 H2S Sensor – with Waterproof Aviation Connector [SKU: 101990863]
- Industrial MODBUS RS485 Air Temperature and Humidity Sensor, with Waterproof Aviation Connector [SKU: 101990882]
- SenseCAP CO2, Temperature and Humidity Sensor with RS485&SDI-12 , with Waterproof Aviation Connector [SKU: 101991029]
