Seeeduino Motion Frame

Description

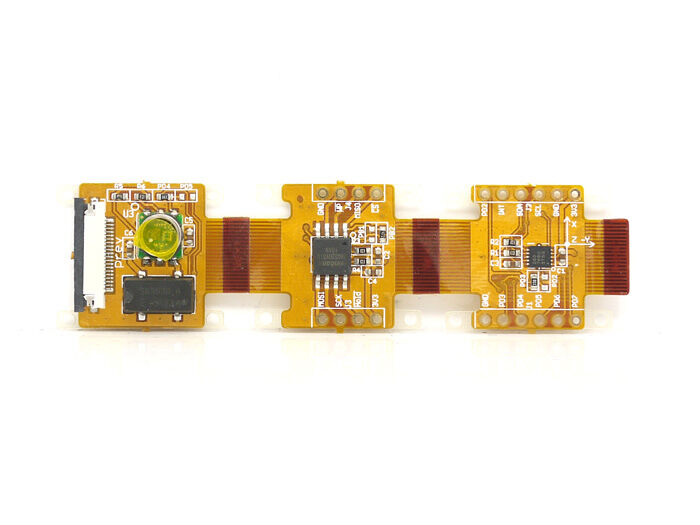

Seeeduino Film Motion Frame is a motion sensing extension board designed for Seeeduino Film. Its flexible, ultra-slim and small form factor is suitable for building wearable devices. It consists of a Barometer (HP03M), a 3-axis Accelerometer Sensor (MMA7660FC) and a 32 Mb serial Flash Memory (W25X32). This provide sensing and logging of altitude, temperature, air pressure and motion for Seeeduino Film. Film and other extension FRAMEs could be simply connected via the 20 pin universal bus like a chain. Its native 2.54mm pitch pins enable quick prototyping as well.

FEATURES

• • ŸFlexible, Ultra small / Slim form factor

• • ŸSeeeduino Film compatible

• • ŸI²C Barometer

• • ŸI²C 3-Axis Accelerometer

• • ŸSPI 32M-BIT Serial Flash

• • Ÿ0.1" pitch pad breakout

• • Ÿ20 pin daisy-chain flex bus

• • ŸTransform by cutting and chaining

• • ŸReinforced to increase endurance

• • ŸApplication Ideas

• • ŸWeather Watching

• • ŸEnvironment Sensing

• • ŸSports and Gyms

• • ŸHiking / Climbing

• • ŸHobby Aviation

• • ŸSecurity

• • ŸData logging

DOCUEMNTS

Please visit our wiki page for more info about this product. It will be appreciated if  you can help us improve the documents, add more demo code or tutorials. For technical support, please post your questions to our forum.
