Description
Note: Please update firmware if your current one doesn’t support this BeagleBone® Green HDMI Cape.
Interested in a customized Seeed Studio Beaglebone® Green? Check out our ODM services here!

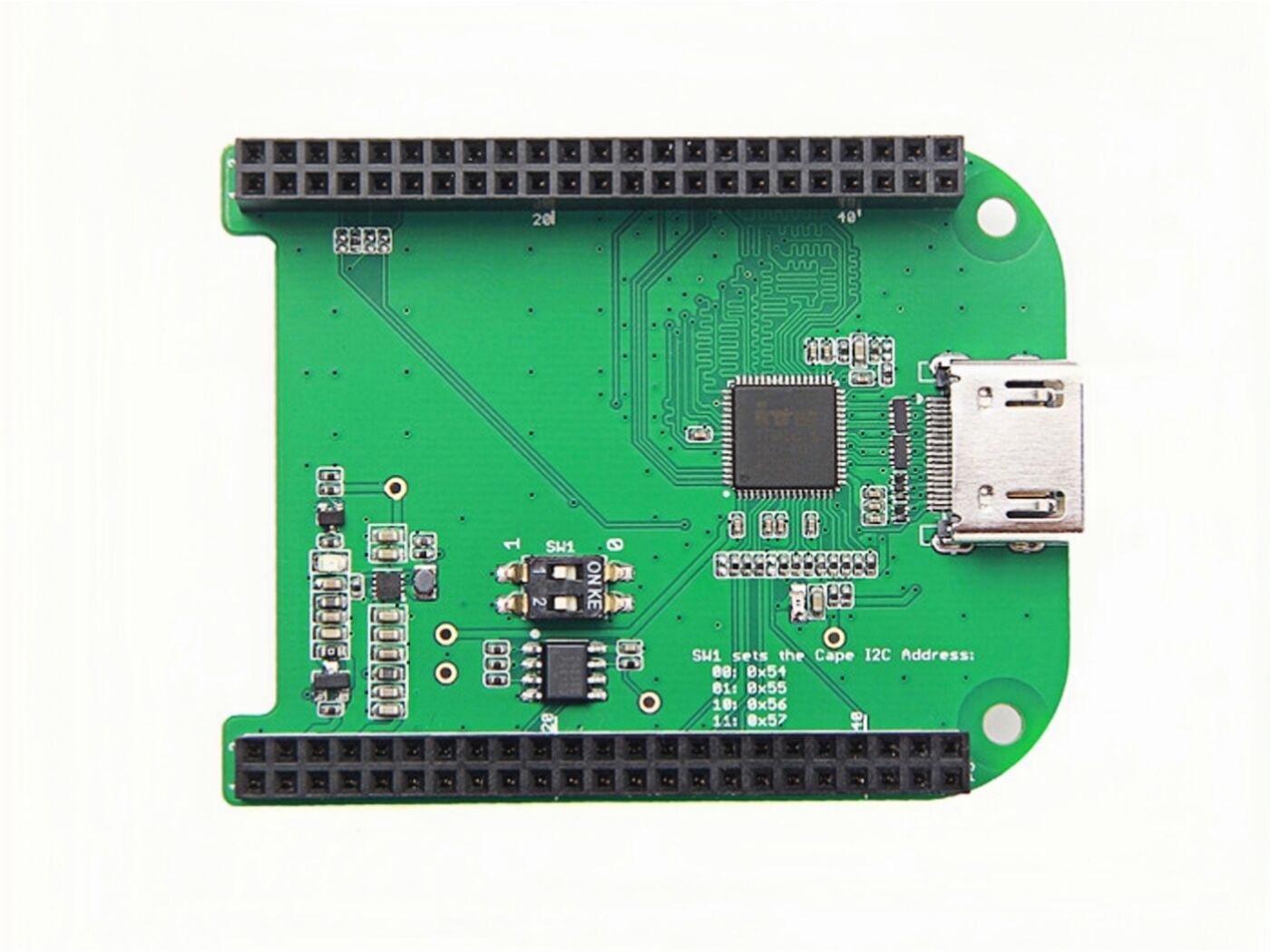

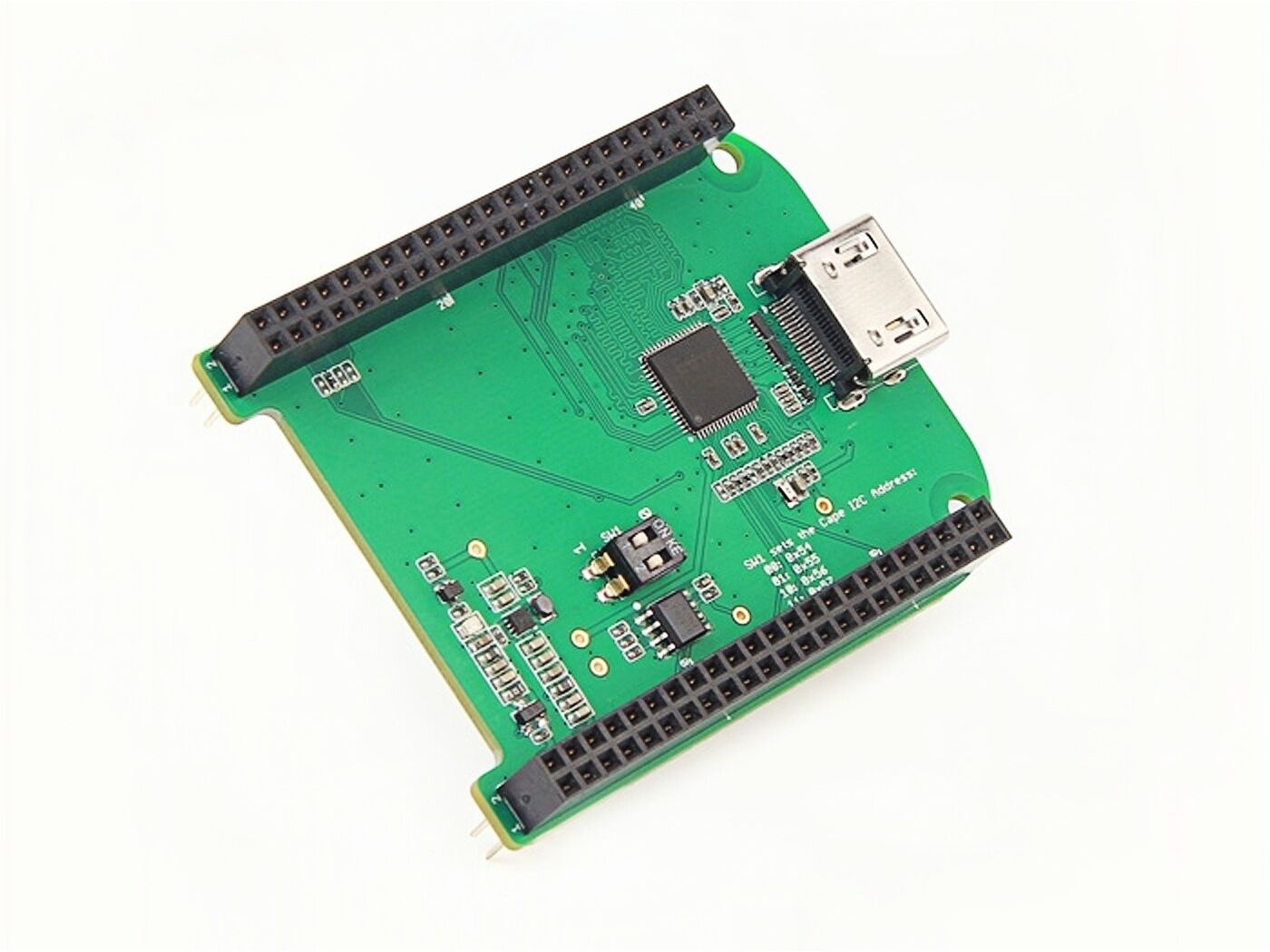

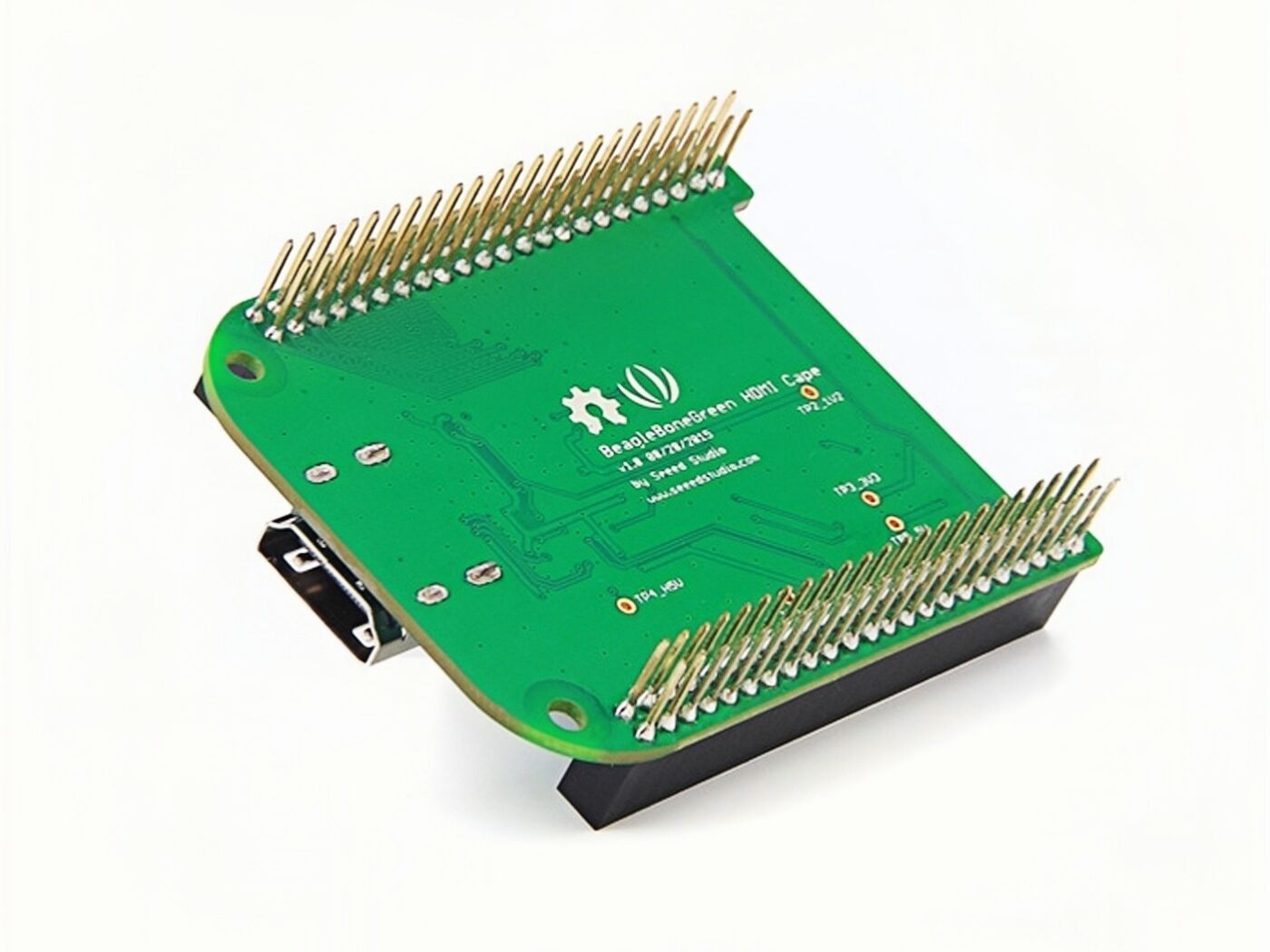

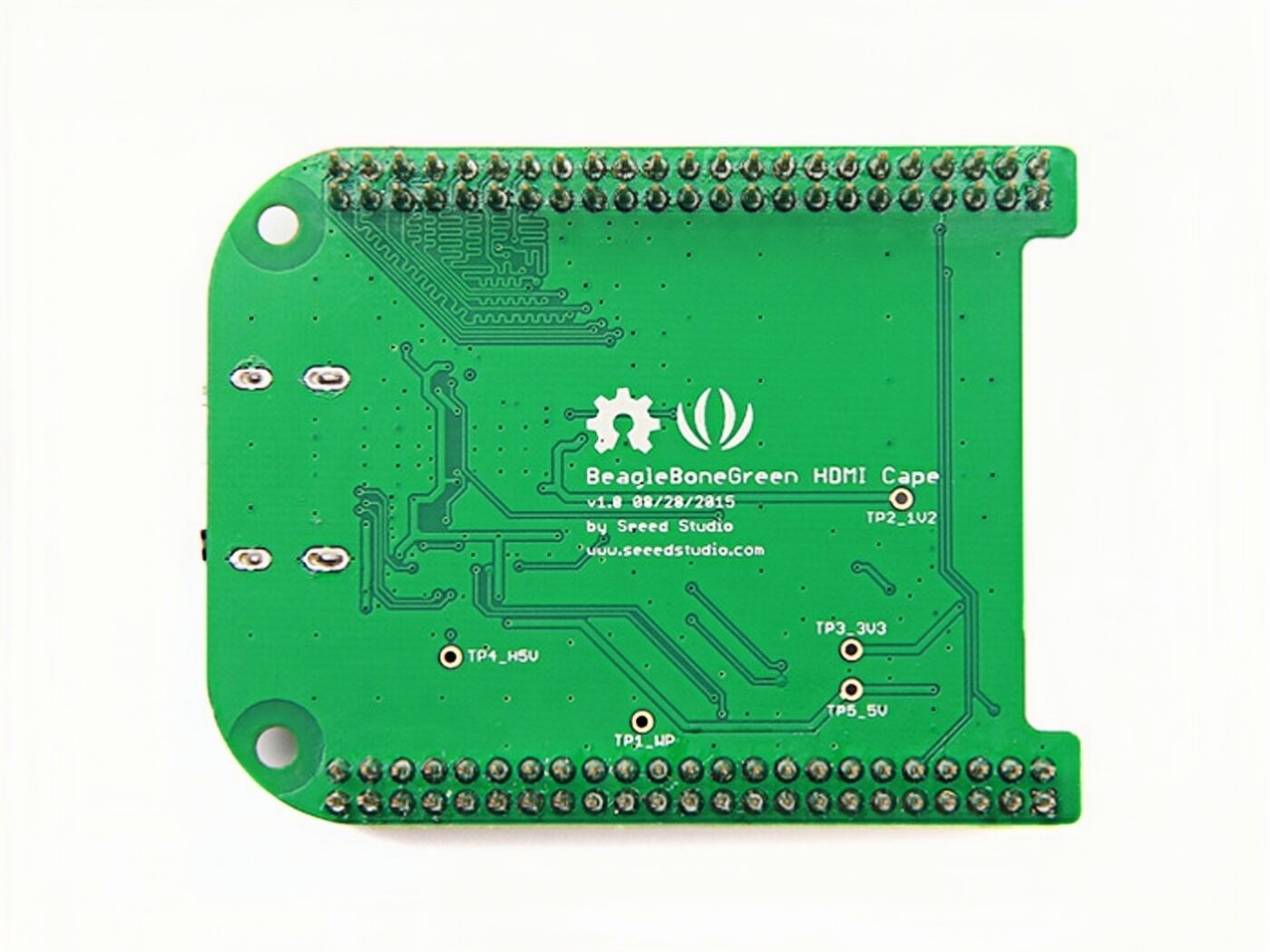

Seeed Studio BeagleBone® Green HDMI Cape is a general integrated HDMI connector for expanding your BeagleBone® to a rich variety of peripherals such as a computer monitor, a video projector, a digital television, or a digital audio device. This board features a standard HDMI receptacle that can be connected to a monitor with a standard HDMI-to-HDMI cable. All HD signals are supported, and the output resolution is 1280×720. It also can be used to transmit audio information. This product will make your applications based on BeagleBone® board more versatile for different occasions.
FEATURES
• Plug and play.
• Support HDMI1.4 Compliant with HDMI 1.3a, HDCP 1.2 and DVI 1.0
• 720P(1280×720) output resolution.
SPECIFICATION
• Input voltage: 5V/3.3V
• Maxium operating current: 80 mA
• HDMI version: Version 1.4
• Maxium Output resolution: 1280×720 @60Hz
• Audio transmission: Available
• Chip: IT66121 HDMI Framer
BASIC DEMO

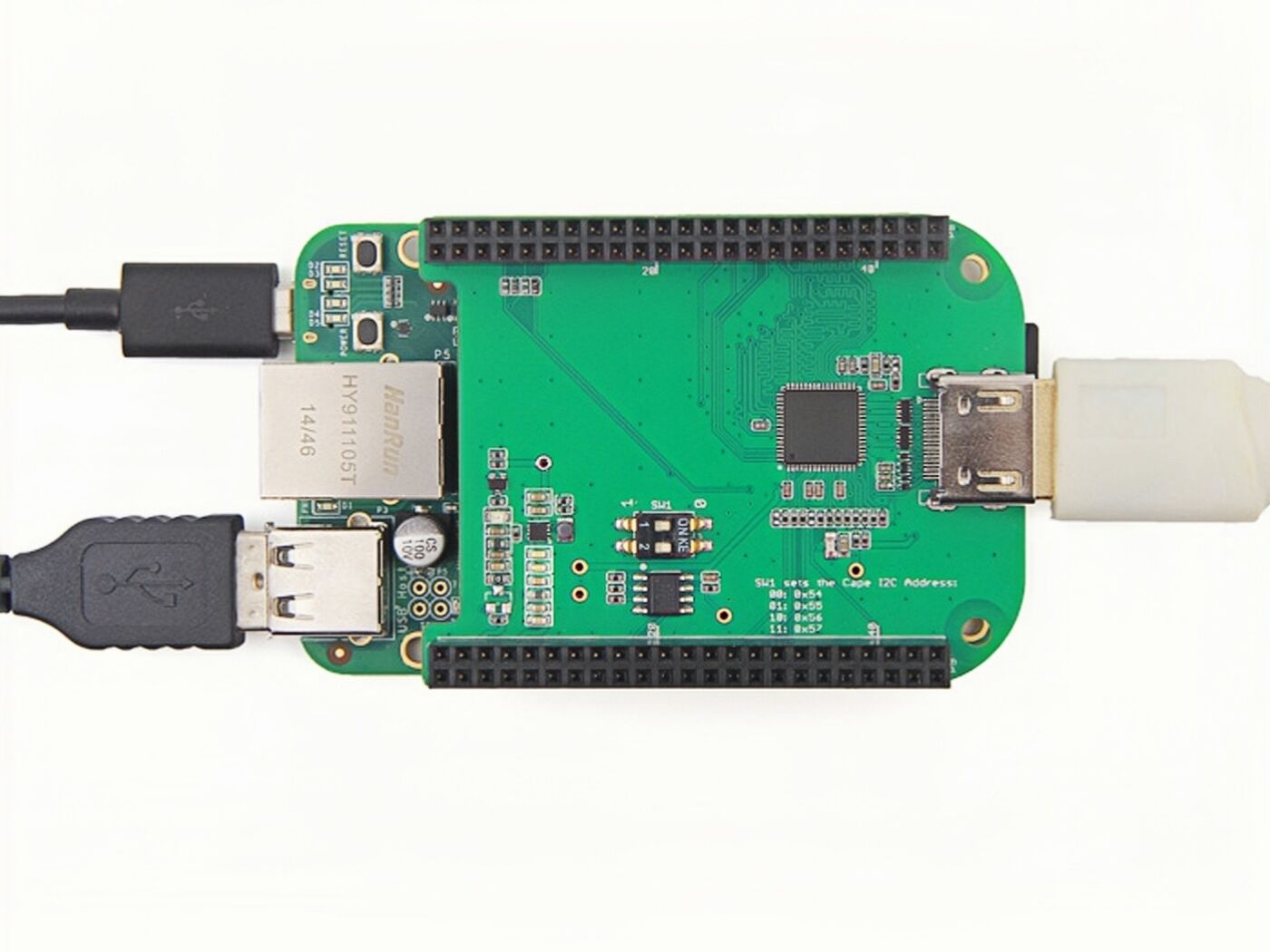

It is a demo which we plug Seeed Studio BeagleBone® Green HDMI Cape into shield of Seeed Studio BeagleBone® Green board, and connect to our computer, then we can open Chromium browser to surf internet or play music.
