Name: SDLogger - Open Hardware Data Logger
SKU: 105990002
Price: 19.99 USD
Availability: OutOfStock

Description

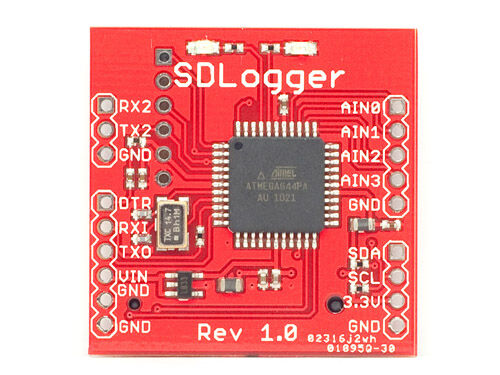

SDLogger is a simple serial logger based on SparkFun/Nathan Seidle's OpenLog. It is using an ATmega644P processor running at 14.7456MHz and logs to full-size SD cards. It supports both standard SD cards (FAT16) and SDHC cards (FAT32). SDLogger ships with OpenLog firmware 1.61 installed (compiled with SDHC/FAT32 support and large 2048 character input buffer) together with an Arduino-compatible bootloader for easy program update.

Features

Simple to configure and use
Automatically logs data received on the serial input port
Can be configured using a config file on the SD card
Supports 2400, 4800, 9600, 19200, 38400, 57600, 115200 and 230400 serial baud rates at 8-N-1.
Supports both standard SD cards up to 2GB (FAT16) and SDHC cards up to 16GB (FAT32)
Large input buffer (2048 characters)

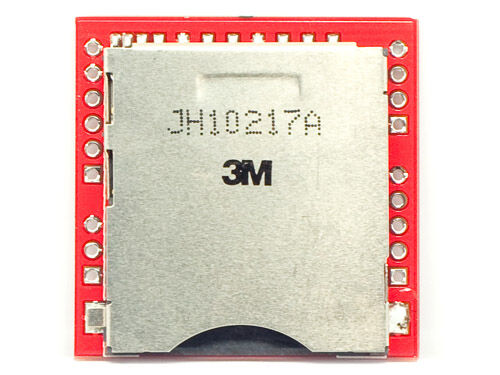

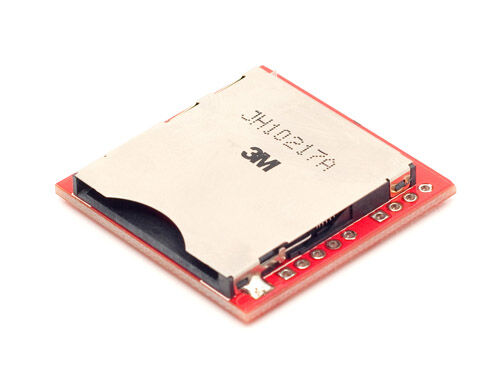

Full-size SD card form factor
14.7456 MHz crystal oscillator for precise baud rate generation
Input voltage range: 3.3 to 12V
Arduino-compatible bootloader installed for easy program update
Full Arduino environment support – can be used as an inexpensive Arduino board for program development
I/O ports supported in Arduino environment (in addition to the main serial port): 4 analog inputs, second serial port, I2C port
Simple SDLogger original firmware restore procedure using the Arduino environment
SDLogger hardware/firmware designed by Saanlima/Magnus Karlsson and released under CC BY-SA v3 license
Design files, Arduino code and other ported code available on GitHub
