Description

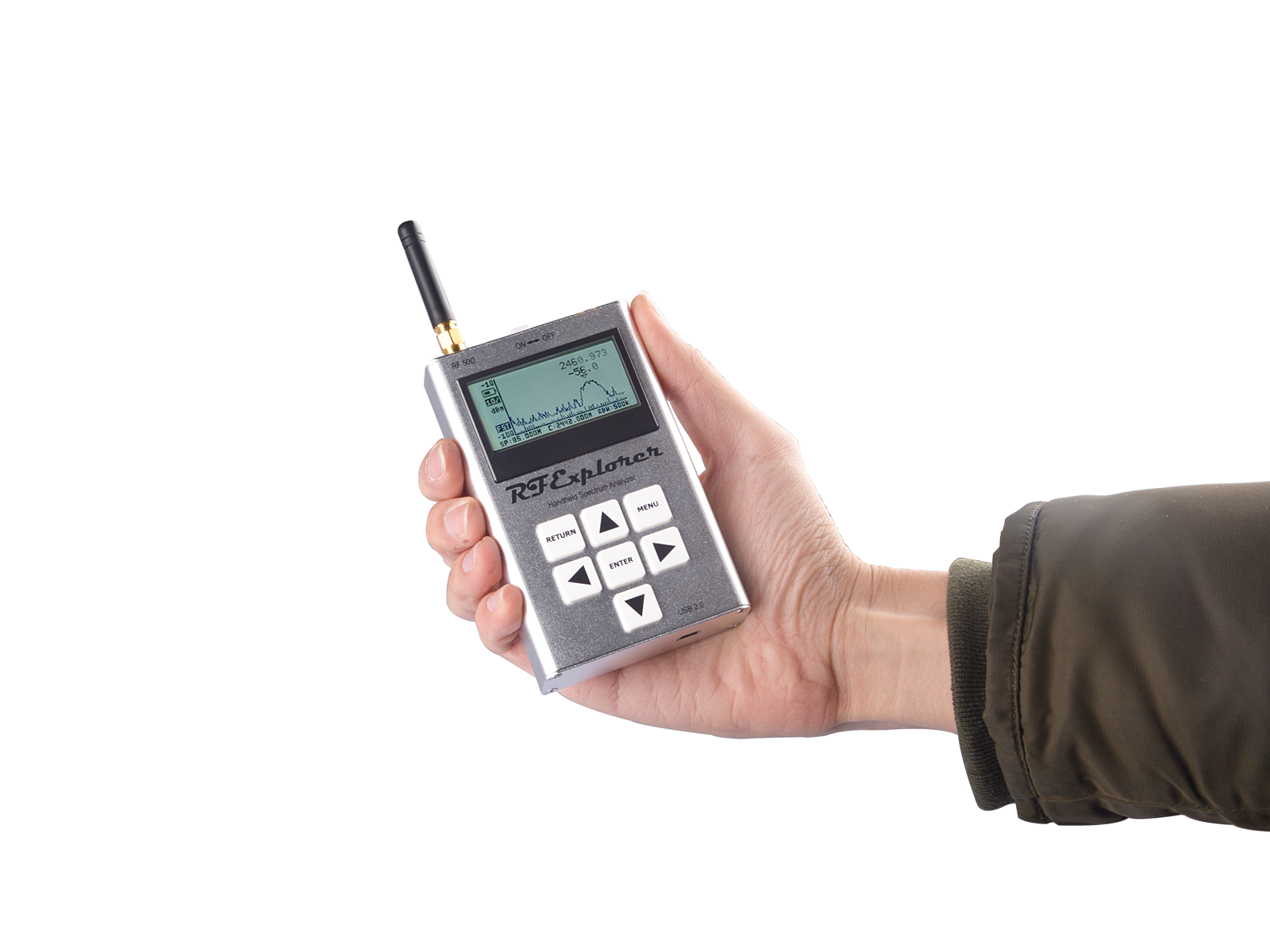

RF Explorer is a handheld digital spectrum analyzer, aimed to provide a very affordable tool for work in all ISM popular frequency bands. It is based on a highly integrated frequency synthesizer which offers high performance, compact size, low consumption and low cost.
It has been designed to be used outdoor and indoor, and works nice with a PC connected for extra functionality using standard mini-USB 2.0 connector.
Feature
-
Pocket size and light weight -
Solid aluminum metal case -
Spectrum Analyzer mode with Peak Max and Hold, Normal, Overwrite and Averaging modes -
Integrated RF Signal Generator -
Lifetime free firmware upgrades available, open to community requested features -
High capacity Lipo for 16hs+ of continuous run, rechargeable by USB -
Windows PC client Open Source -
Can be extended with internal Expansion Modules for additional band and functionality
Specification
-
Frequency band: 2400-2485 MHz -
Frequency span: 2-85 Mhz -
Graphics LCD 128×64 pixels, great visibility outdoors -
PC Windows client supports Windows XP/Vista/Win7 both 32 and 64bits -
Backlight for great indoor visibility -
Standard SMA 50 ohms connector, a matching antenna is included -
Amplitude resolution: 0.5dBm -
Dynamic range: -105dBm to -15dBm -
Absolute Max input power: +5dBm -
Average noise level (typical): -100dBm -
RF Generator amplitude: -30dBm to +1dBm -
Frequency stability and accuracy (typical): +-10ppm -
Amplitude stability and accuracy (typical): +-3dBm -
Frequency resolution: 1Khz -
Resolution bandwidth (RBW): automatic 58Khz to 812Khz -
Weight: 185g -
Size: 113x70x25 mm
Techsupport
This product is designed by RF-Explorer,
-
For more info and to get started with your RF Explorer, visit the start page.
-
For questions and support, please visit https://support.rf-explorer.com.
-
For the software for RF Explorer series, please click the following logo for more information:
If you'd like to buy or change the RF Explorer Battery, please click here.
