RF Explorer 433M

Description

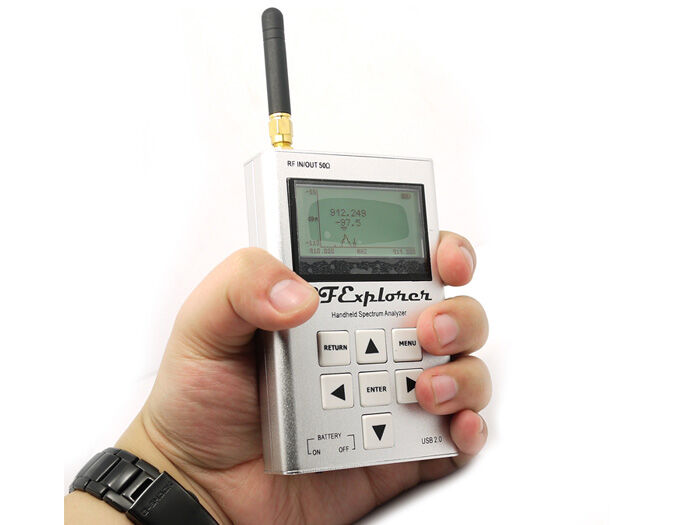

RF Explorer is a handheld digital spectrum analyzer, aimed to provide a very affordable tool for work in all ISM popular frequency bands. It is based on a highly integrated frequency synthesizer which offers high performance, compact size, low consumption and low-cost.

It has been designed to be used equally well outdoor and indoor, and can be connected to a Windows PC using standard mini-USB for additional features and higher display resolution.

We also prepared a nice EVA case for RF Explorer, check it out here

Feature

•
  Pocket size and light weight

•

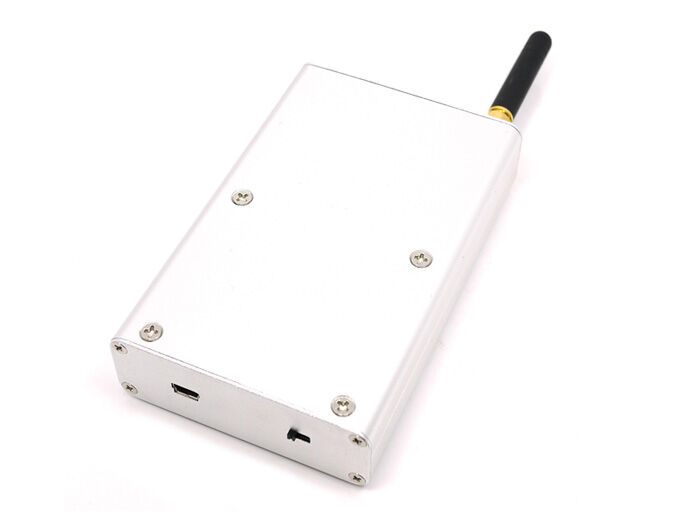

  Solid aluminum metal case

•
  Spectrum Analyzer mode with Peak Max and Hold, Normal, Overwrite and Averaging modes

•
  Integrated RF Signal Generator

•
  Lifetime free firmware upgrades available, open to community requested features

•
  High capacity Lipo for 16hs+ of continuous run, rechargeable by USB

•
  Windows PC client Open Source

•
  Can be extended with internal Expansion Modules for additional band and functionality

Specification

•
  Frequency band:430-440 MHz

•
  Frequency span: 112 KHz-10 MHz(enhanced to 30 MHz if an Expansion Module is connected)

•
  Graphics LCD 128×64 pixels, great visibility outdoors

•
  PC Windows client supports Windows XP/Vista/Win7 both 32 and 64bits

•
  Backlight for great indoor visibility

•
  Standard SMA 50 ohms connector, a matching antenna is included

•
  Amplitude resolution: 0.5dBm

•
  Dynamic range: -115dBm to 0dBm

•
  Absolute Max input power: +5dBm

•
  Average noise level (typical): -110dBm

•
  RF Generator amplitude: 0dBm to 20dBm

•
  Frequency stability and accuracy (typical): +-10ppm

•
  Amplitude stability and accuracy (typical): +-3dBm

•
  Frequency resolution: 1Khz

•
  Resolution bandwidth (RBW): automatic 2.6Khz to 80Khz

•
  Weight: 185g

•
  Size: 113x70x25 mm

Techsupport

This product is designed by RF-Explorer,

• For more info and to get started with your RF Explorer, visit the start page.

• For questions and support, please visit https://support.rf-explorer.com.

• For the software for RF Explorer series, please click the following logo for more information:

If you'd like to buy or change the RF Explorer Battery, please click here.
