Description
Features
- Exceptional Performance Carrier Board: Supports NVIDIA Jetson Orin NX/Nano modules, leveraging up to 100 TOPS powerful computing power for tough tasks with ease.
- Versatile Connectivity: Offers Gigabit Ethernet, 4x USB 3.2 Type-A, USB 2.0 Type-C, CAN connector, and HDMI 2.1 for networking and data transfer.
- Expand Storage and Wireless: Includes M.2 Key M and M.2 Key E slots for flexible storage and wireless connectivity expansion.
- Mount Sensors with Peripheral Support: Features 2x MIPI CSI-2 22-pin camera connectors, fan, RTC, and a 40-pin expansion header for multiple peripherals.
- Open Source Design: The J401 carrier board is open-source, with design files prepared in Cadence Allegro 17.4.
Specification
● Carrier Board
|
Storage |
1x M.2 Key M (connector to Support 2280 NVMe SSD) |
|
|
Networking |
Ethernet |
1x RJ-45 Gigabit Ethernet (10/100/1000M) |
|
M.2 KEY E |
1x M.2 Key E for WiFi/Bluetooth module |
|
|
I/O |
USB |
4x USB 3.2 Type-A (10Gbps), 1x USB2.0 Type-C (Device Mode) |
|
Camera |
2x CSI (2-lane 15pin) |
|
|
Display |
1x HDMI 2.1 |
|
|
Fan |
1x 4 pin Fan Connector (5V PWM) |
|
|
CAN |
1x CAN |
|
|
Multifunctional Port |
1x 40-Pin Expansion header 1x 12-Pin Control and UART header |
|
|
RTC |
1x RTC 2-pin, supports CR1220 but not included |
|
|
Power |
9-19V DC |
|
|
Mechanical |

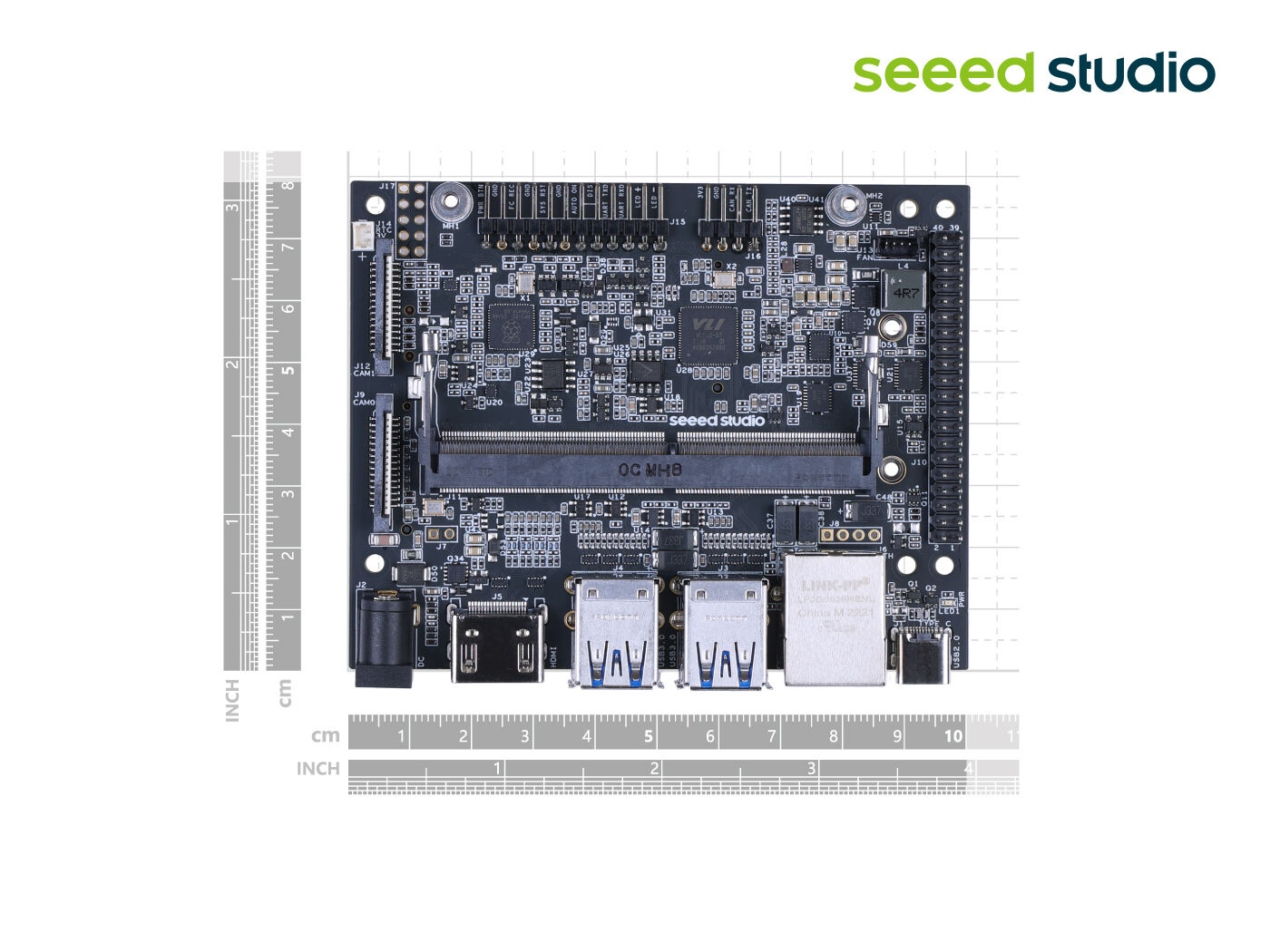

Dimensions (W x D) |
100mm x 80mm |
|
Installation |
Desk, wall-mounting |
|
|
Operating Temperature |
10℃~60℃ |
|

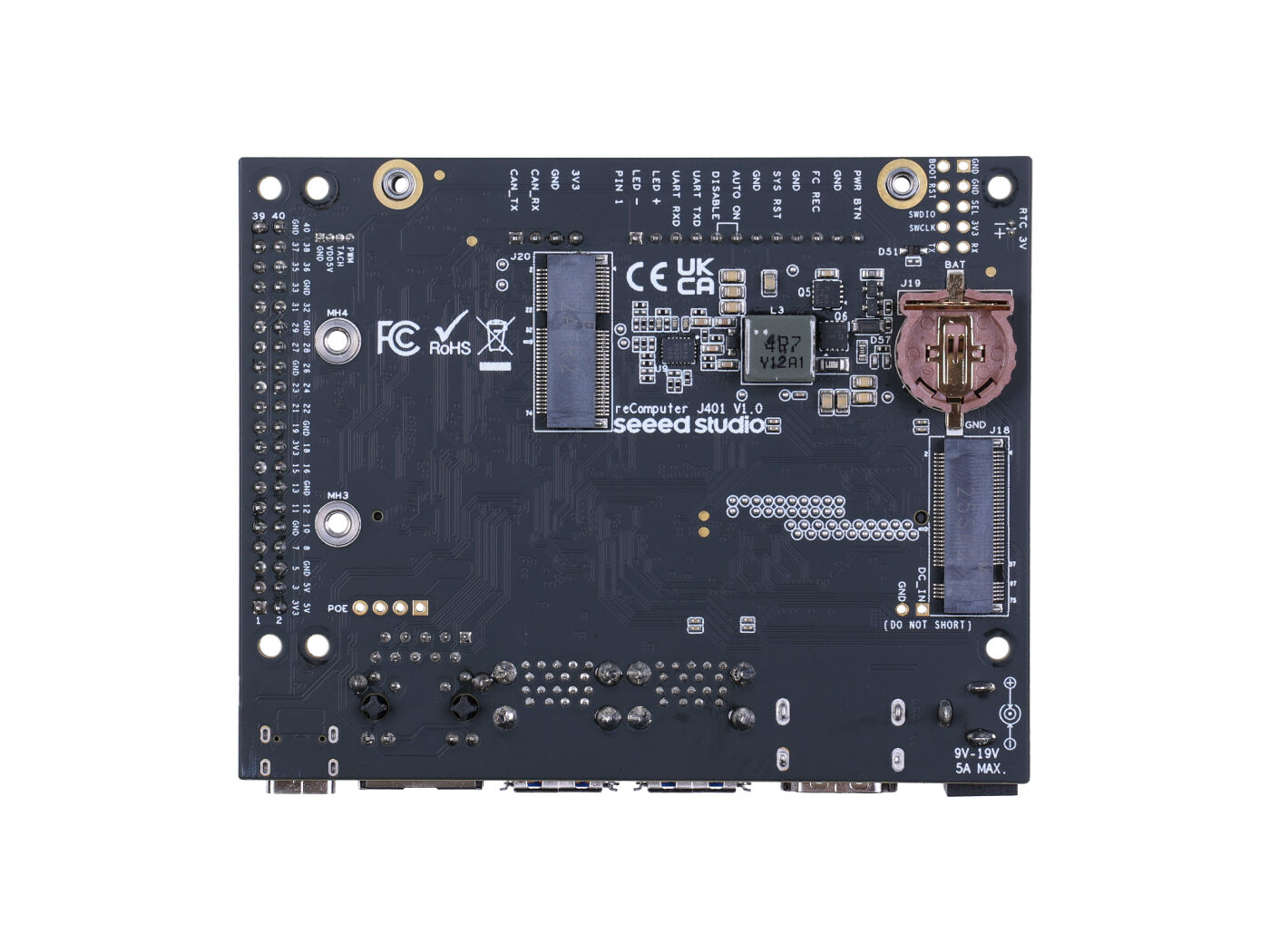

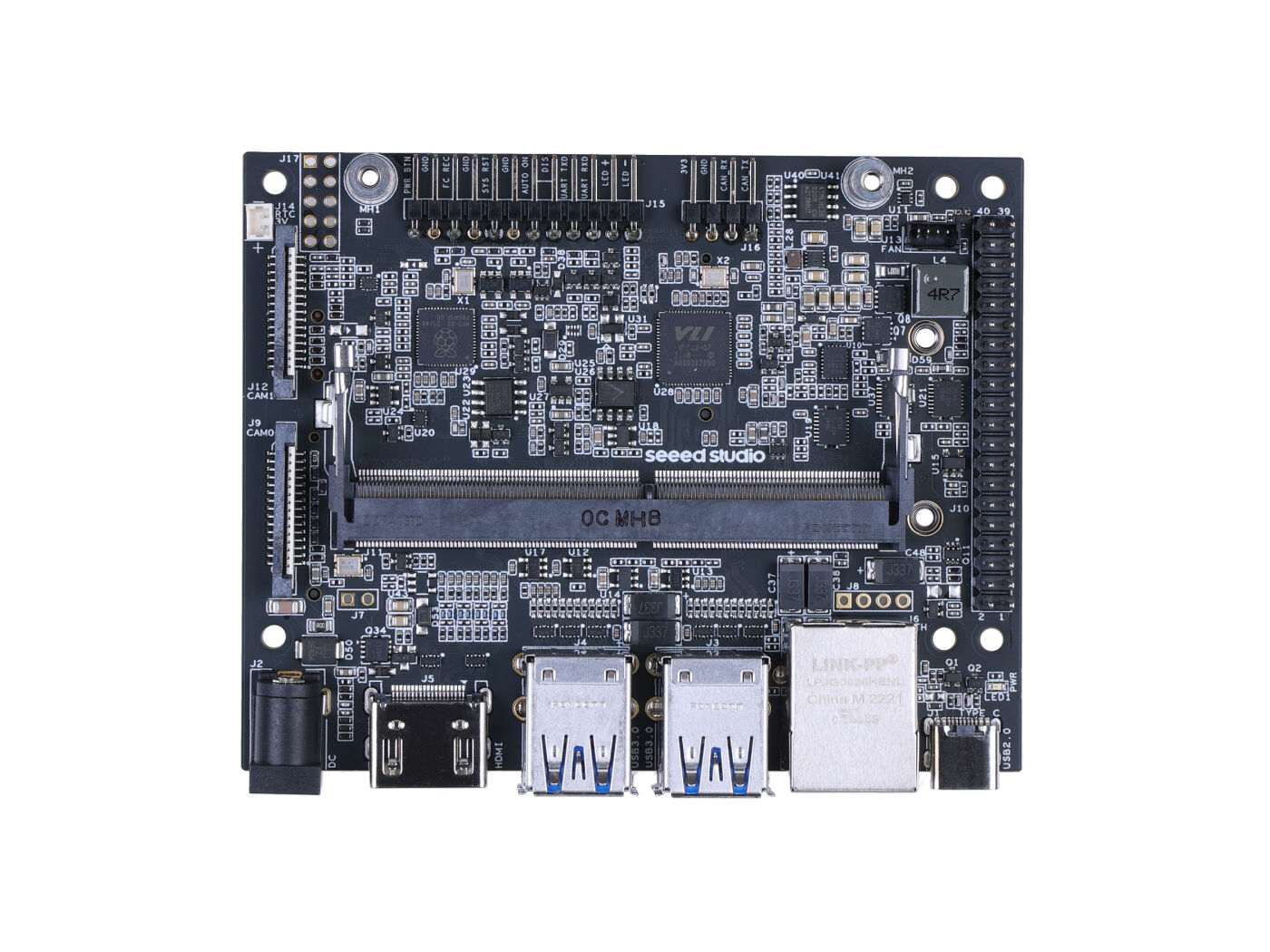

Hardware Overview
Application
Application Fields:
- AI Video Analytics
- Machine Vision
- Autonomous Mobile Robot (AMR)
- Generative AI
