Description
Features
- Hand-sized edge device: Compact size at 130mm x 120mm x 50mm, featuring an NVIDIA Jetson Nano 4GB module, offering 0.5 TOPS AI performance with low power consumption and low latency.
- Ready for development and deployment: pre-installed NVIDIA JetPack 4.6.1 supports the entire Jetson Software and industry-leading AI Developer Tools for building robust AI applications such as logistics, retail, service, agriculture, smart city, healthcare, and life sciences, etc
- Expandable with Rich I/Os: The reComputer J1020 v2 includes 4x USB 3.0, HDMI, M.2 Key M for SSD, LTE, and Bluetooth, RTC, Raspberry Pi GPIO 40-pin, and more.
- Power efficient: powered by DC Jack 12V/2A.
Note
- The official NVIDIA Jetson Nano Developer Kit has reached EOL and is no longer available for purchase. We recommand you check out this reComputer J10 full system as a replacing choice for Jetson Nano developer Kit.
- If use some GPIO libraries that causes floating voltage 1.2V~2V , GPIO issues on the carrier board could happen as the normal voltage should be 3V. This is a common situation on the carrier boards, for both the reComputer series and official Nvidia Jetson developer kit. Thus, aftersales / warrenty does not come into effect regarding this isssue. For further information, refer to NVIDIA official document.
Specification
● Jetson Nano 4GB System on Module
|
Al Performance |
Jetson Nano 4GB – 0.5 TFLOPS |
|
GPU |
NVIDIA Maxwel™ architecture with 128 NVIDIA CUDA® cores |
|
CPU |
Quad-core ARM Cortex-A57 MPCore processor |
|
Memory |
4 GB 64-bit LPDDR4 25.6 GB/s |
|
Video Encoder |
1x 4K30 | 2x1080p60 | 4x1080p30 | 4x720p60 | 9x720p30 (H.265 & H.264) |
|
Video Decoder |
1x 4K60 | 2x 4K30 | 4x 1080p60 | 8x 1080p30 | 9x 720p60 (H.265 & H.264) |
● Carrier Board
|
Storage |
1x M.2 Key M PCIe (M.2 NVMe 2280 SSD 128G included) |
|
|
Networking |
Ethernet |
1x RJ-45 Gigabit Ethernet (10/100/1000M) |
|
I/O |
USB |
4x USB 3.0 Type-A ； 1x Micro-USB port for device mode |
|
Camera |
2x CSI (2-lane 15pin) |
|
|
Display |
1x HDMI Type A; 1x DP |
|
|
Fan |
1x 4 pin Fan Connector (5V PWM) |
|
|
Multifunctional Port |
1x 40-Pin Expansion header 1x 12-Pin Control and UART header |
|
|
Power |
DC Jack 12V/2A |
|
|
Mechanical |

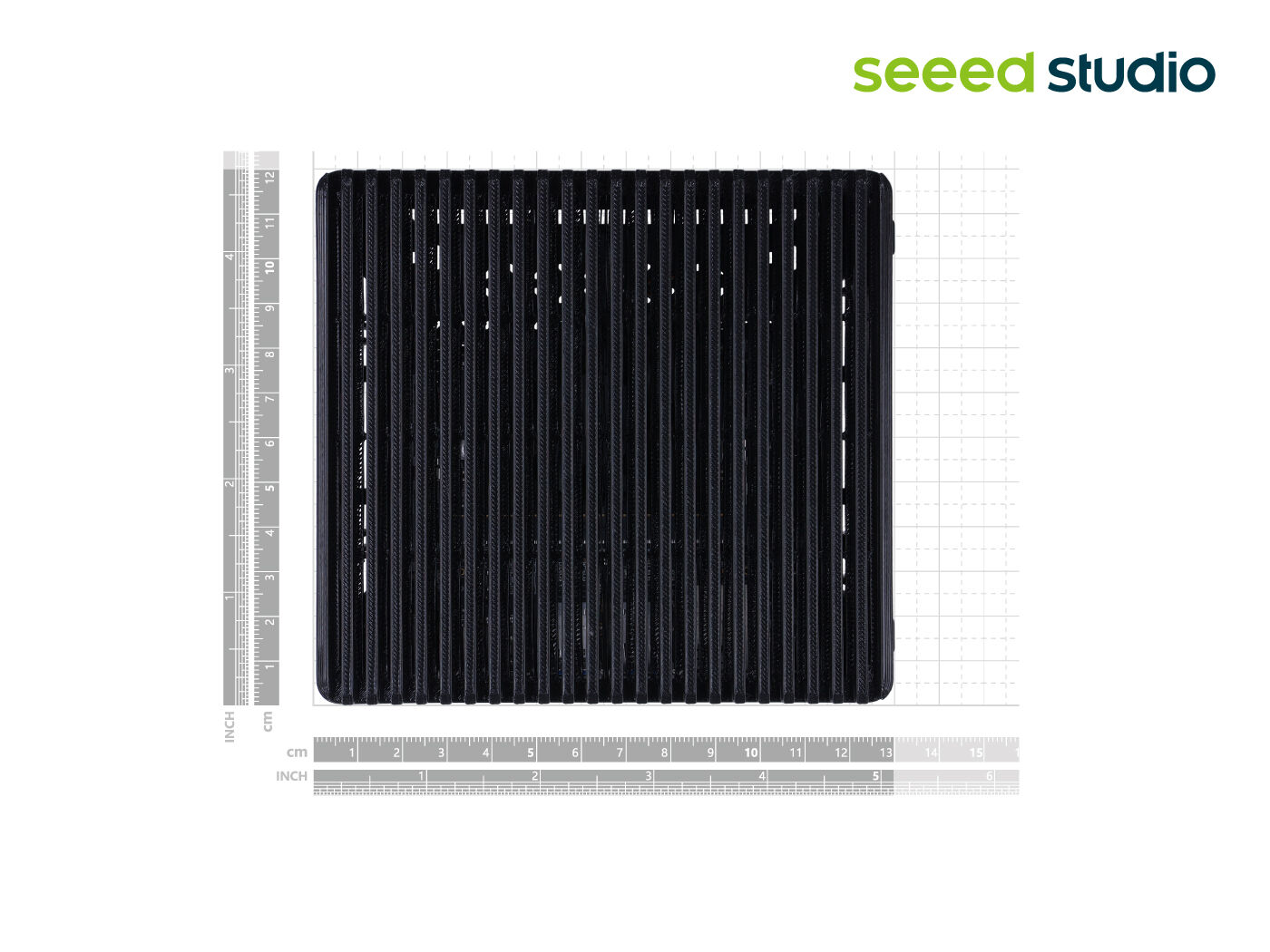

Dimensions (W x D x H) |
130 mm x 120 mm x 50 mm (with case) |
|
Installation |
Desk, wall-mounting |
|
|
Operating Temperature |
0℃ ~ 60℃ |
|
Hardware Overview
- reComputer J202 carrier board, included in the full system – reComputer J1020 v2
- Desktop, Wall Mount, Expandable or fit in anywhere
Application
Application Fields:
- Computer Vision
- Machine Learning
- Autonomous Mobile Robot (AMR)
