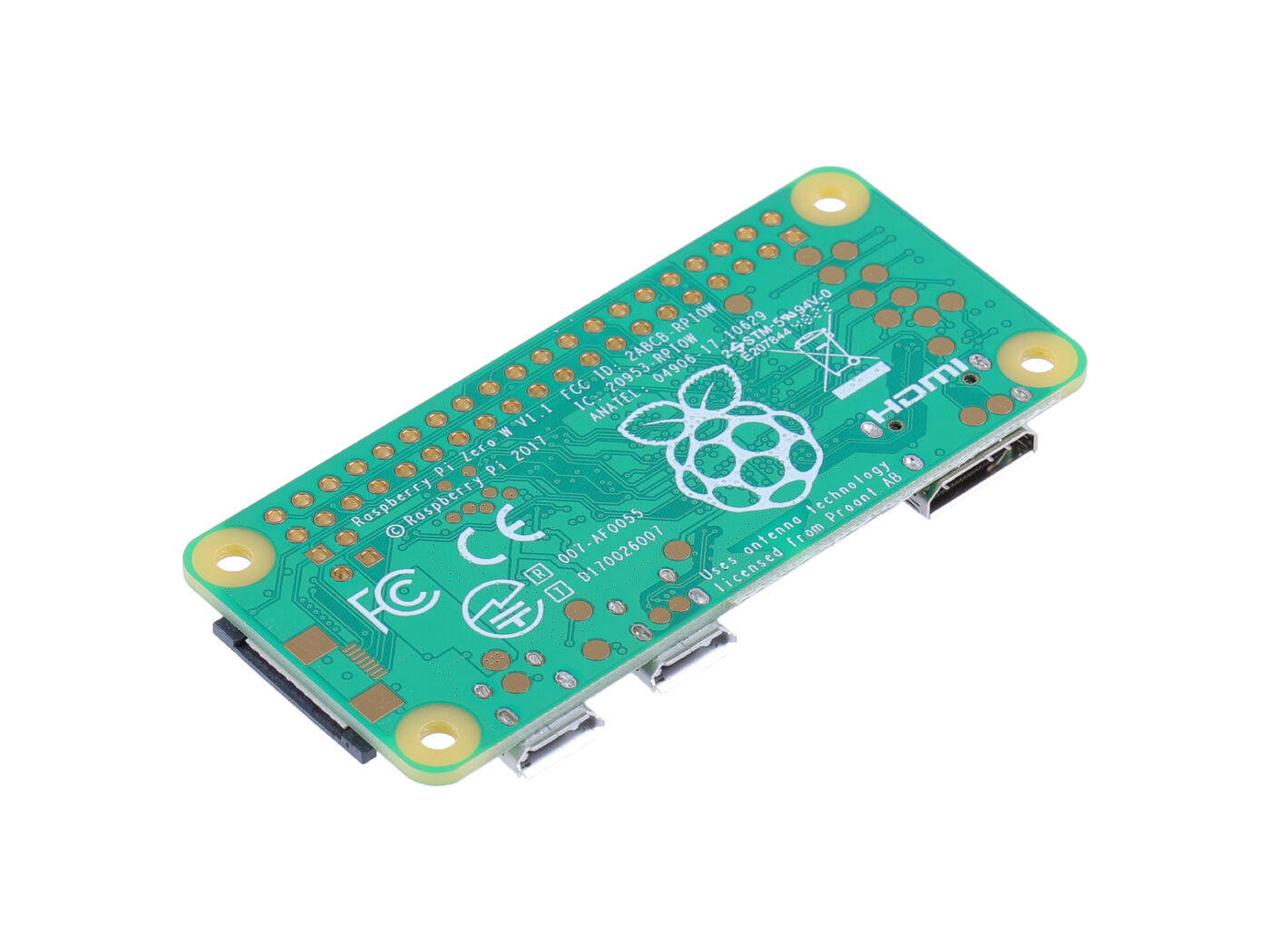

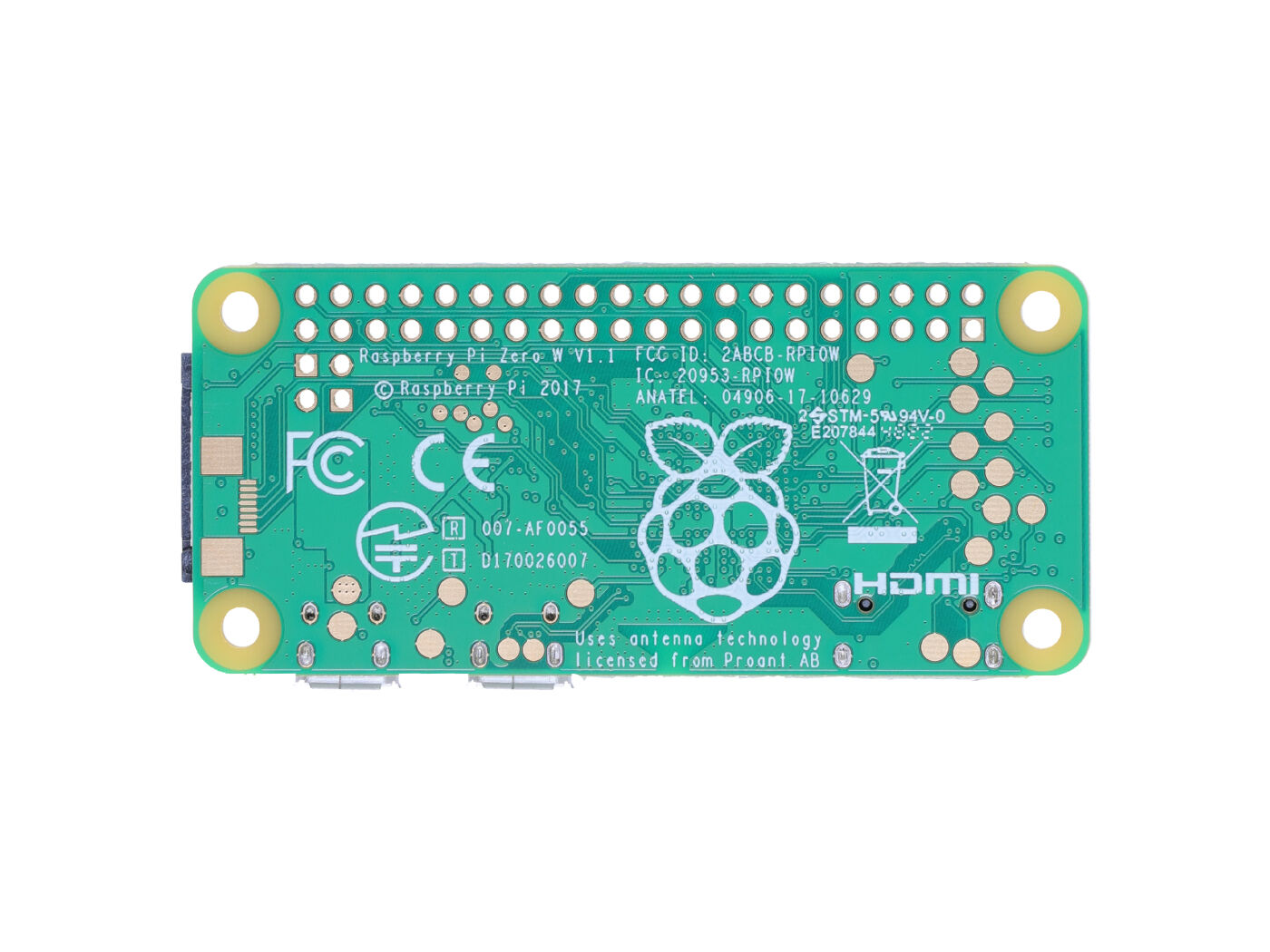

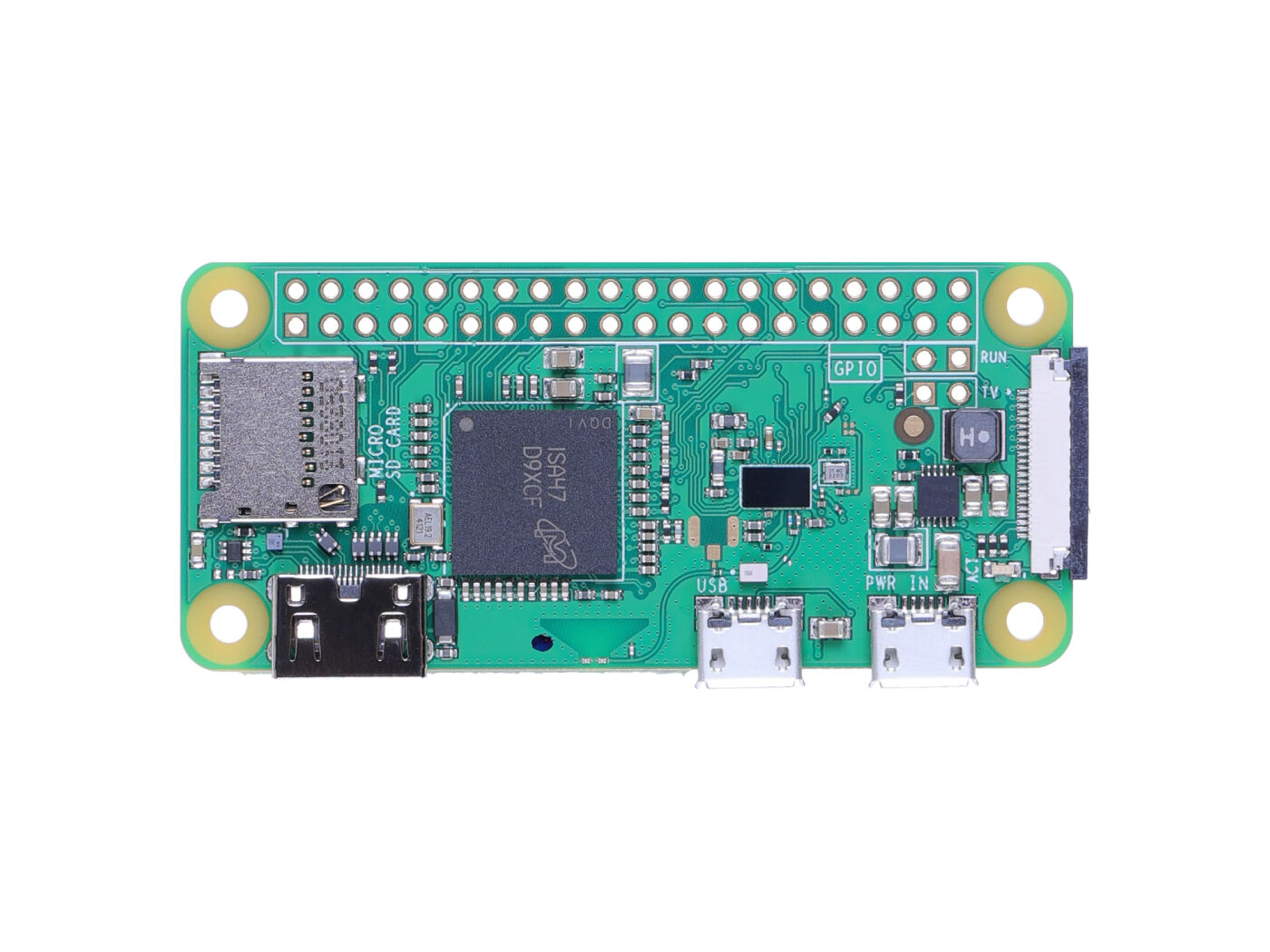

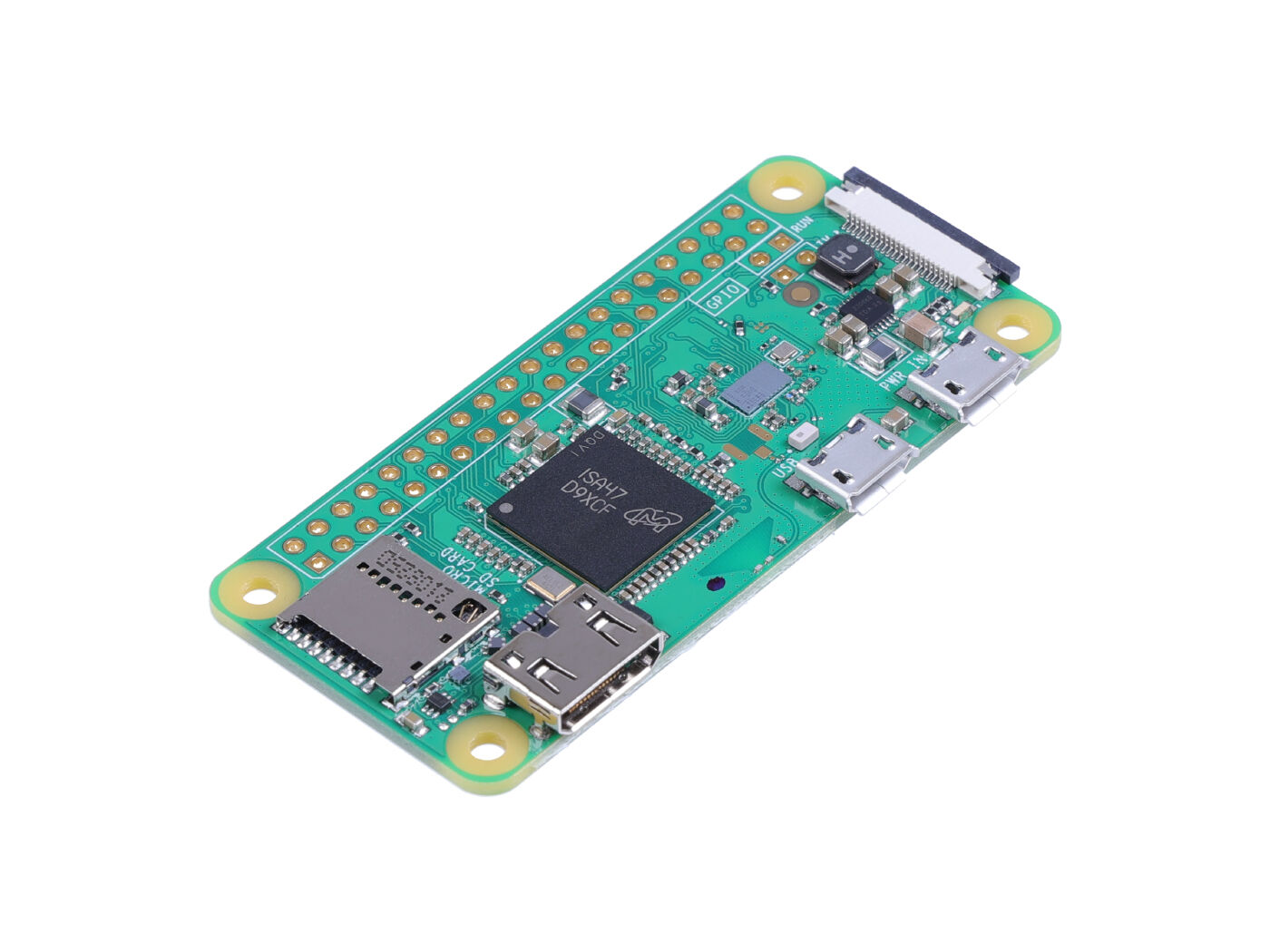

Raspberry Pi Zero W

Description

Raspberry Pi Zero W is a mini Linux development board with Bluetooth/wifi function, which has almost the same function as Raspberry Pi. Enjoy your “hacking” time!

Feature

• Excellent Processor Performance: Equipped with 1GHz ARM Cortex-A7 processor, which provides reliable processing power for a variety of tasks and applications
• Versatile Wireless Connectivity: Built-in 802.11 b/g/n Wi-Fi and Bluetooth 4.1 and Bluetooth Low Energy.
• Abundant Interfaces: A rich variety of interfaces, like 40-pin header, Mini HDMI, CSI camera connector and so on.
• Compact Form: The compact board size makes it incredibly small and portable, allows for easy integration into tight spaces and enables portable and space-constrained projects.

Description

Raspberry Pi Zero W is a compact single-board computer with built-in wireless connectivity, GPIO pins, and a wide range of applications, enabling users to create versatile and affordable projects in the fields of IoT, education, automation, and more.

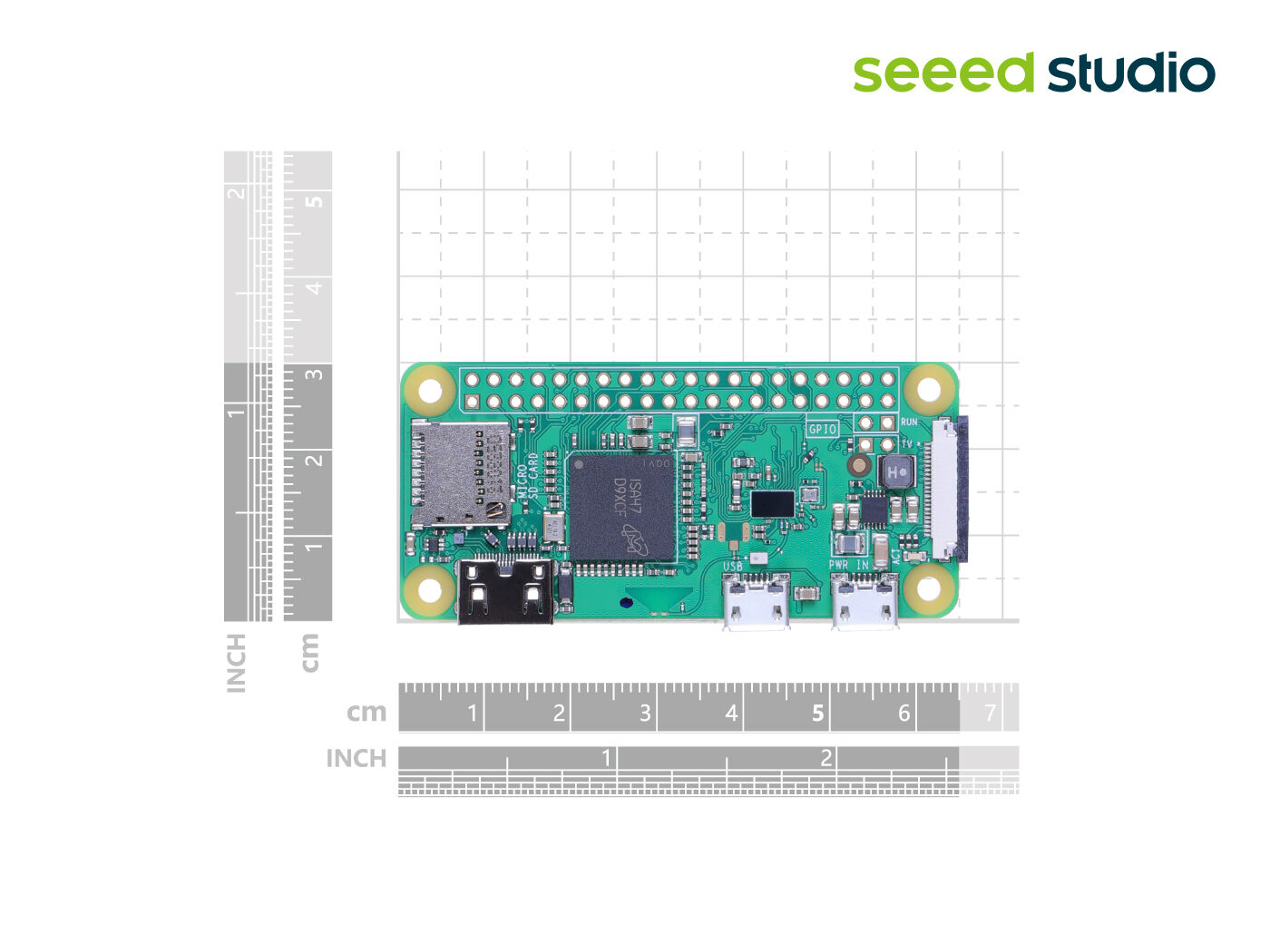

Raspberry Pi Zero W measures only 65mm x 30mm x 5mm, making it highly suitable for integration into various projects. It features built-in 802.11n Wi-Fi and Bluetooth 4.0, enabling wireless network connection and communication between devices. Raspberry Pi Zero W provides 40 GPIO pins for connecting sensors, actuators, and other electronic components, facilitating the development of interactive hardware projects.

It is equipped with a 1GHz single-core ARM Cortex-A7 processor and 512MB of LPDDR2 SDRAM, providing sufficient computing power and running space. It utilizes a microSD card as the primary storage medium, allowing for the installation of the operating system and storage of data.

Application

• Internet of Things (IoT) Projects
• Home Automation
• Portable Projects
• Robotics and Automation
• Remote Monitoring and Surveillance

Specification

Hardware Overview

Interface
