Description
Note
When carrying heavy Inductive load for a period of time, the on-board MCU might be down and a reset procedure is needed.
Tip
This product is fully compatible with Raspberry Pi 4 (1GB, 2GB,4GB) and hopes you enjoy hacking with Pi 4 and all of other Pi 4 accessories.

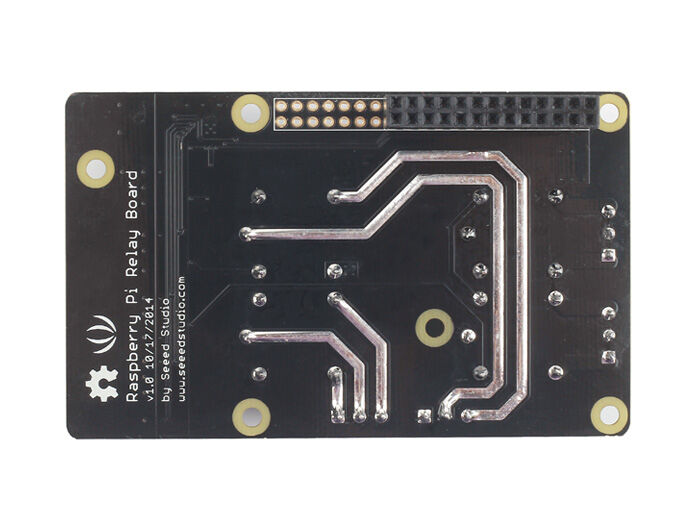

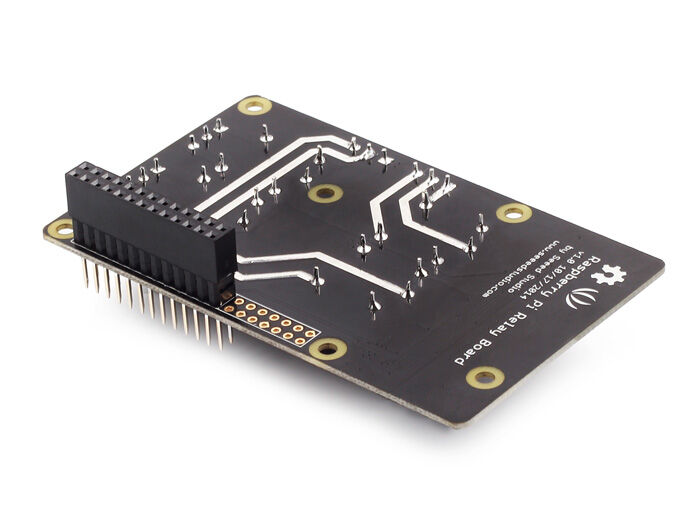

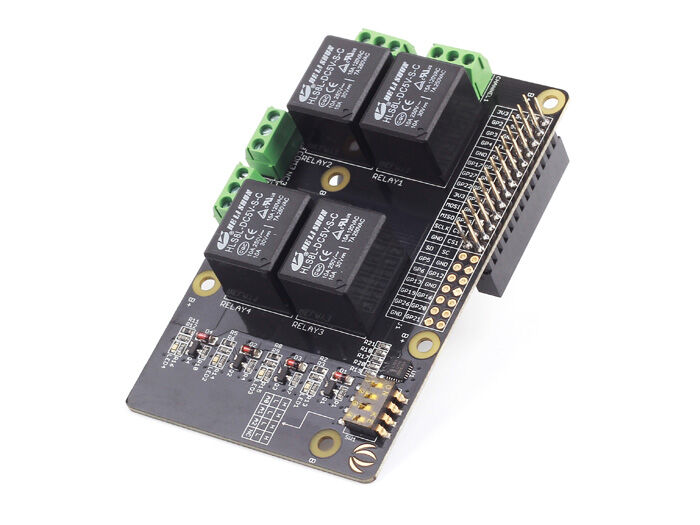

The Relay Shield utilizes four high quality relays and provides NO/NC interfaces that control the load of high current. Which means it could be a nice solution for controlling devices that couldn’t be directly controlled by IIC bus. Standardized shield form factor enables smoothly connection with the Raspberry Pi . The shield also has four dynamic indicators show the on/off state of each relay.
Features
-
Raspberry Pi compatible
-
Interface:IIC , Three hardware SW1 (1, 2, 3) select the fixed I2C-bus address
-
Relay screw terminals
-
Standardized shield shape and design
-
LED working status indicators for each relay
-
COM, NO (Normally Open), and NC (Normally Closed) relay pins for each relay
-
High quality relays
-
Working status indicators for each relay
Specification
Compatible:Raspberry Pi ; Other main board via jumpers;
Power supply:4.75~5.5V ;
Max Switching Voltage:30VDC/250VAC;
Max Switching Current:15A ;
Frequency:1Hz;

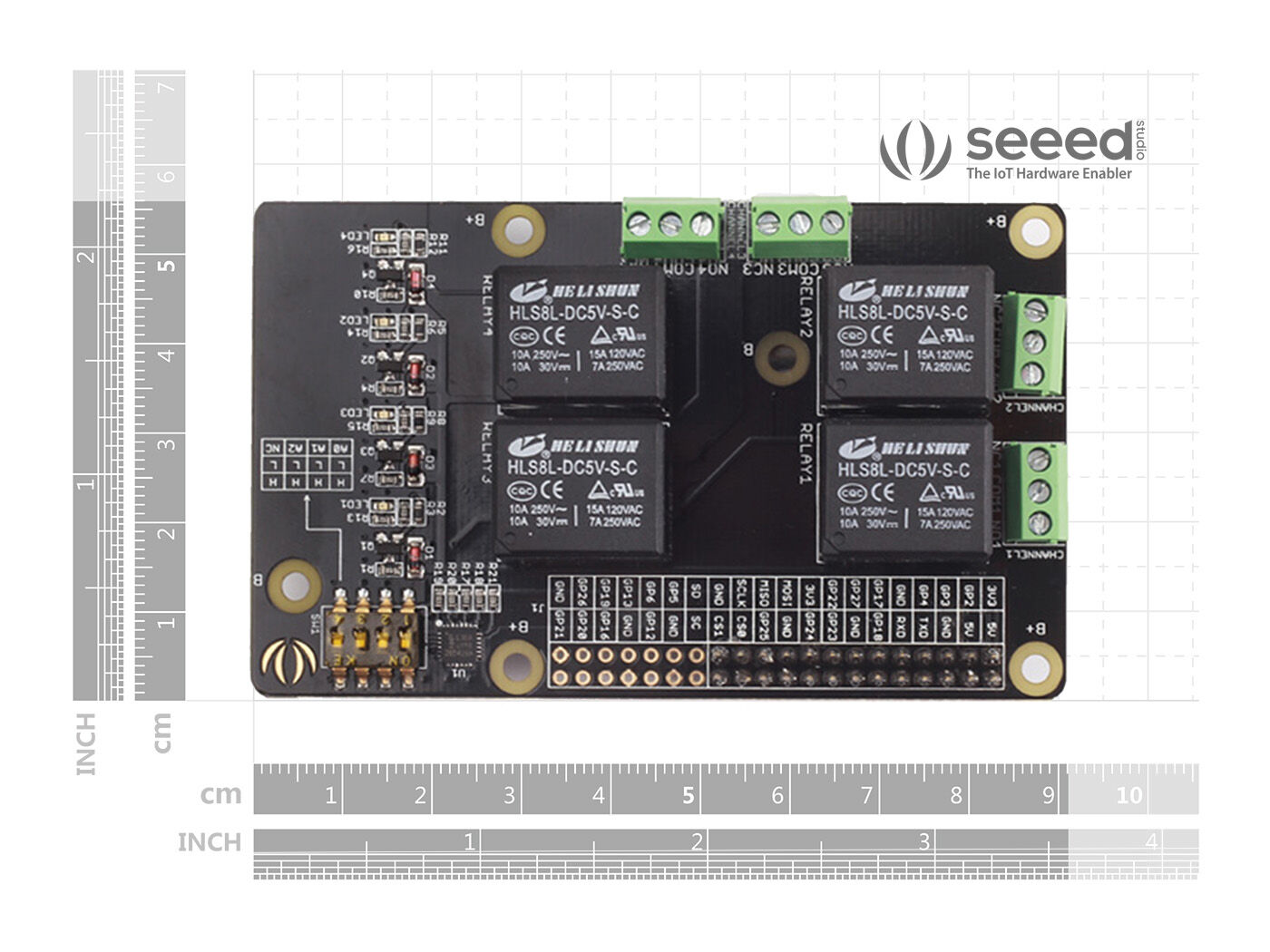

Dimensions:91.20 * 56.15*32mm;
