Description

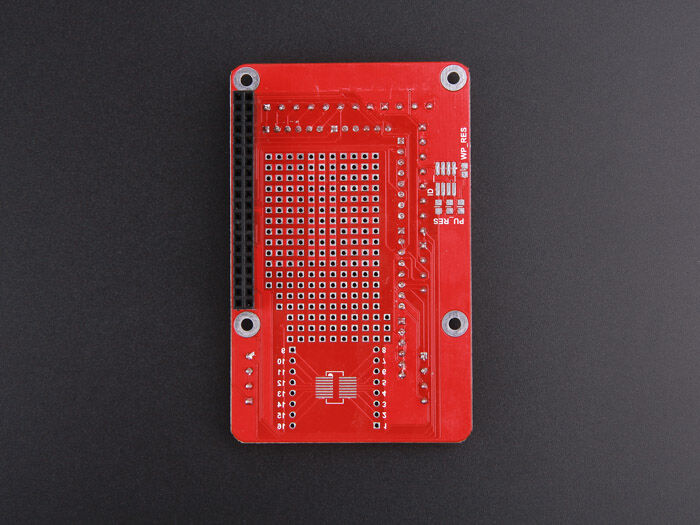

This Prototyping Board is Designed for Raspberry Pi B+/A+ and Raspberry Pi 2 Model B, you can combine your raspberry pi with other components, modules. There are a EEPROM for you to make your HAT for Raspberry Pi.
Features:
-
A big prototyping area, half of which is 'breadboard' style and half of which is 'perfboard' style so you can wire up DIP chips, sensors, and the like.
-
Along the edges of the proto area, all the GPIO/I2C/SPI and power pins are broken out to 0.1" stips so you can easily connect to them.
-

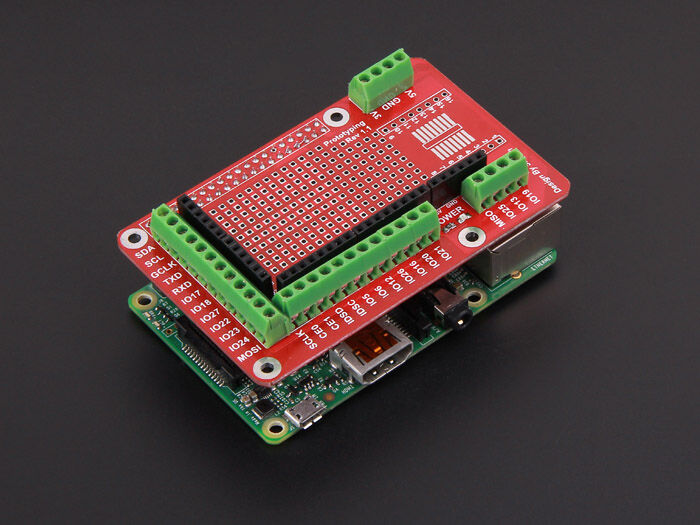

On the edges of the prototyping area, all of the breakout pins are also connected to labeled 3.5mm screw-terminal blocks. This makes it easy to semi-permanently wire in sensors, LEDs, etc.
-
There's also a 4-block terminal block broken out to 0.1" pads for general non-GPIO wiring.
-
A SOIC and a TSSOP surface mount chip breakout area, for those chips that dont come in DIP format.
-
EEPROM for Raspberry Pi HAT
-
POWER LED indicator
Specification:
