Description
Raspberry Pi Pioneer600 is a low-cost and all-in-one expansion board for Raspberry Pi
-
Supports Raspberry Pi A+/B+/2B/3B
-
【Standard I/O】 dual LED, joystick, buzzer, the basic components
-
【USB TO UART】 CP2102, control the Pi through serial terminal
-
【Display】 0.96inch OLED, big world in the little screen
-
【RTC】 DS3231, high precision, backup battery holder is also available
-
【AD/DA】 PCF8591, 8-bit resolution, screw terminal IO interface
-
【GPIO Expansion】 PCF8574, more GPIO, more possibility
-
【IR Control】 LFN0038K, Raspberry Pi remote control comes true
-
【Pressure Sensor】 BMP180, measuring air pressure and temperature
-
【1-WIRE】 for connecting 1-WIRE devices, DS18B20 is included
-
【Sensor Interface】 for connecting various sensors
|
-
Raspberry Pi 1 Model A+
-
Raspberry Pi 1 Model B+
-
Raspberry Pi 2 Model B
-
Raspberry Pi 3 Model B
|
-

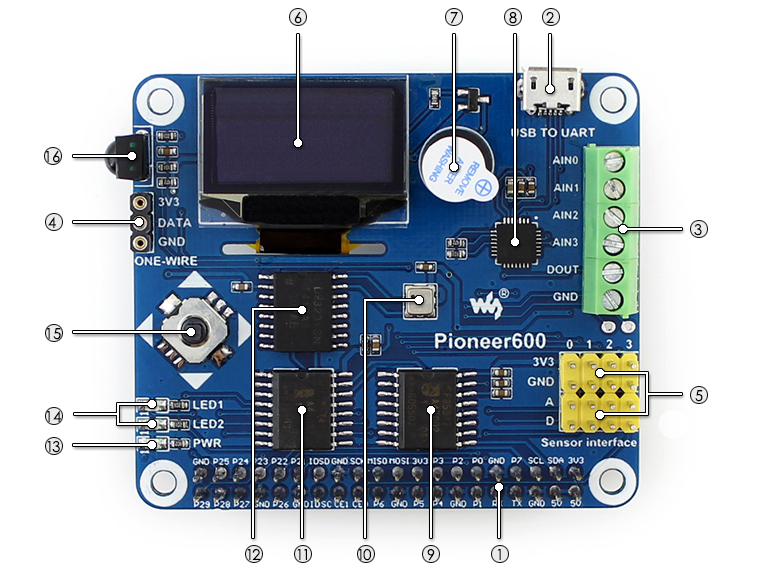

Raspberry Pi GPIO interface : for connecting Raspberry Pi
-
USB TO UART : control the Pi through serial terminal
-
AD/DA IO interface : screw terminal
-
1-WIRE interface : for connecting 1-WIRE devices like DS18B20
-
Sensor interface : for connecting various sensors
-
0.96inch OLED : SSD1306 driver, 128×64 resolution, SPI interface
-
Buzzer
-
CP2102 : USB TO UART converter
-
PCF8591 : 8-bit AD/DA converter, I2C interface
-
BMP180 : pressure sensor, I2C interface
-
PCF8574 : I/O expansion chip, I2C interface
-
DS3231 : high precision RTC chip, I2C interface
-
Power indicator
-
1User LED
-
Joystick
-
LFN0038K IR receiver
|
| Peripheral |
Interface |
Python
|
WiringPi |
BCM2835 C Library |
| LED |
I/O |
√ |
√ |
√ |
| KEY |
I/O |
√ |
√ |
√ |
| IRM |
I/O |
√ |
√ |
√ |
| UART |
UART |
√ |
√ |
|
| DS18B20 |
ONE-WIRE |
√ |
|
|
| PCF8574 |
I2C |
√ |
√ |
√ |
| PCF8591 |
I2C |
√ |
√ |
√ |
| DS3231 |
I2C |
√ |
√ |
√ |
| BMP180 |
I2C |
√ |
√ |
√ |
| OLED |
SPI |
√ |
√ |
√ |
-
Pioneer600 x 1
-
DS18B20 ×1
-
USB Type A Plug to Micro B Plug Cable x 1
-
RPi screws pack (2pcs) x 1
|
