Raspberry Pi Motor Board v1.0

Description

Tip

This product is fully compatible with Raspberry Pi 4 (1GB, 2GB,4GB) and hopes you enjoy hacking with Pi 4 and all of other Pi 4 accessories.

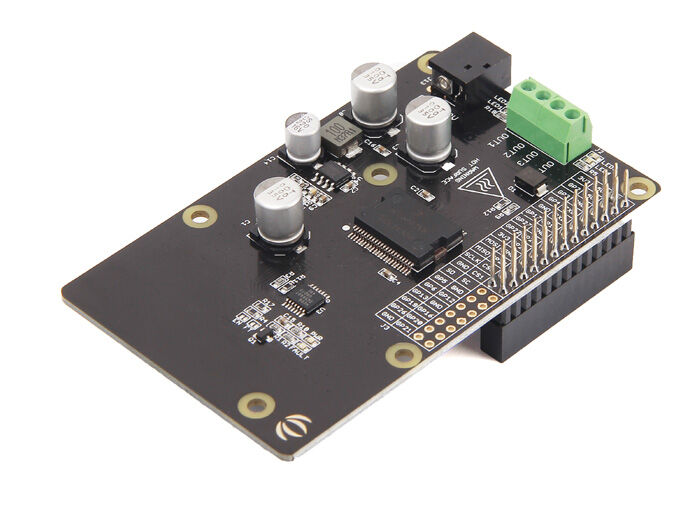

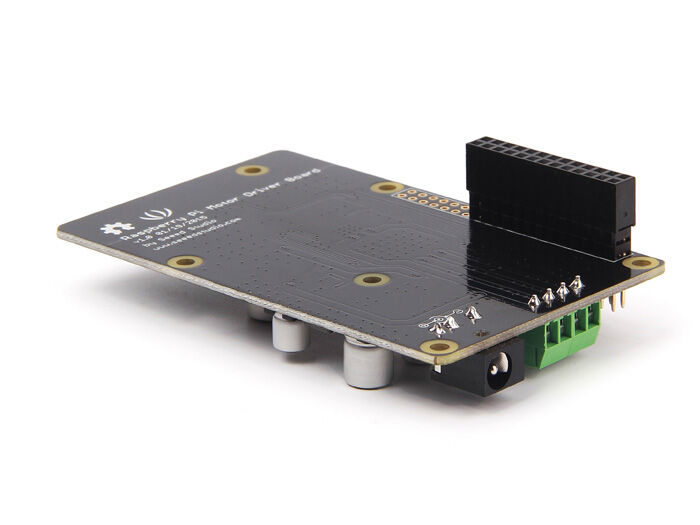

Raspberry Pi Motor Driver Board v1.0 is based on the Freescale MC33932 dual H-Bridge Power IC, which can control inductive loads with currents up to 5.0A peak per single bridge. It lets you drive two DC motors with your Raspberry Pi B/B+/A+ and Pi 2 Model B, controlling the speed and direction of each one independently.

• Operating Voltage: 6V ~ 28V

• DC/DC output: 5V 1000mA @ “5V” pin

• Output Current(For Each Channel ): 2A (continuous operation) / 5A(peak)

• Output Duty Range: 0%~100%

• Output short-circuit protection (short to VPWR or GND)

• Over-current limiting (regulation) via internal constant-off-time PWM

• Temperature dependant current limit threshold reduction

• Raspberry Pi compatible

• Compatible: Raspberry Pi ; Other main board via jumpers;
• Power interface: DC Jack;
• Dimensions: 91.20 * 56.15mm;
• Operating Voltage: 6V ~ 28V
