Raspberry Pi M.2 HAT+ (for Raspberry Pi 5)

Description

Feature

• Convenient Connectivity: It features a single-lane PCIe 2.0 interface (500 MB/s peak transfer rate), and supports devices that use the M.2 M key edge connector and the 2230 or 2242 form factor.

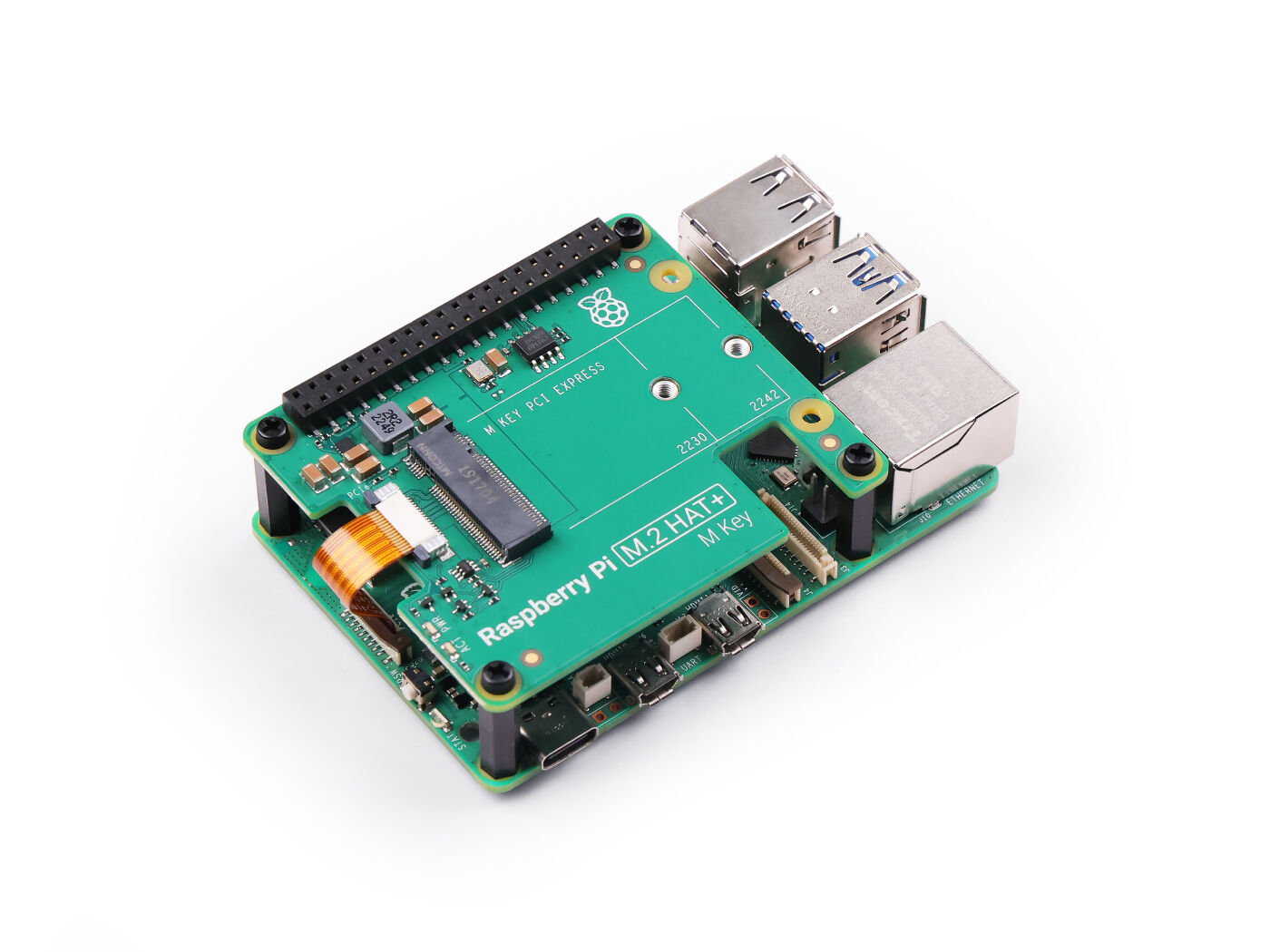

• Compatibility with Raspberry Pi 5: Specifically designed for the Raspberry Pi 5 and fitted to a Raspberry Pi 5 with the  Raspberry Pi Active Cooler in place.

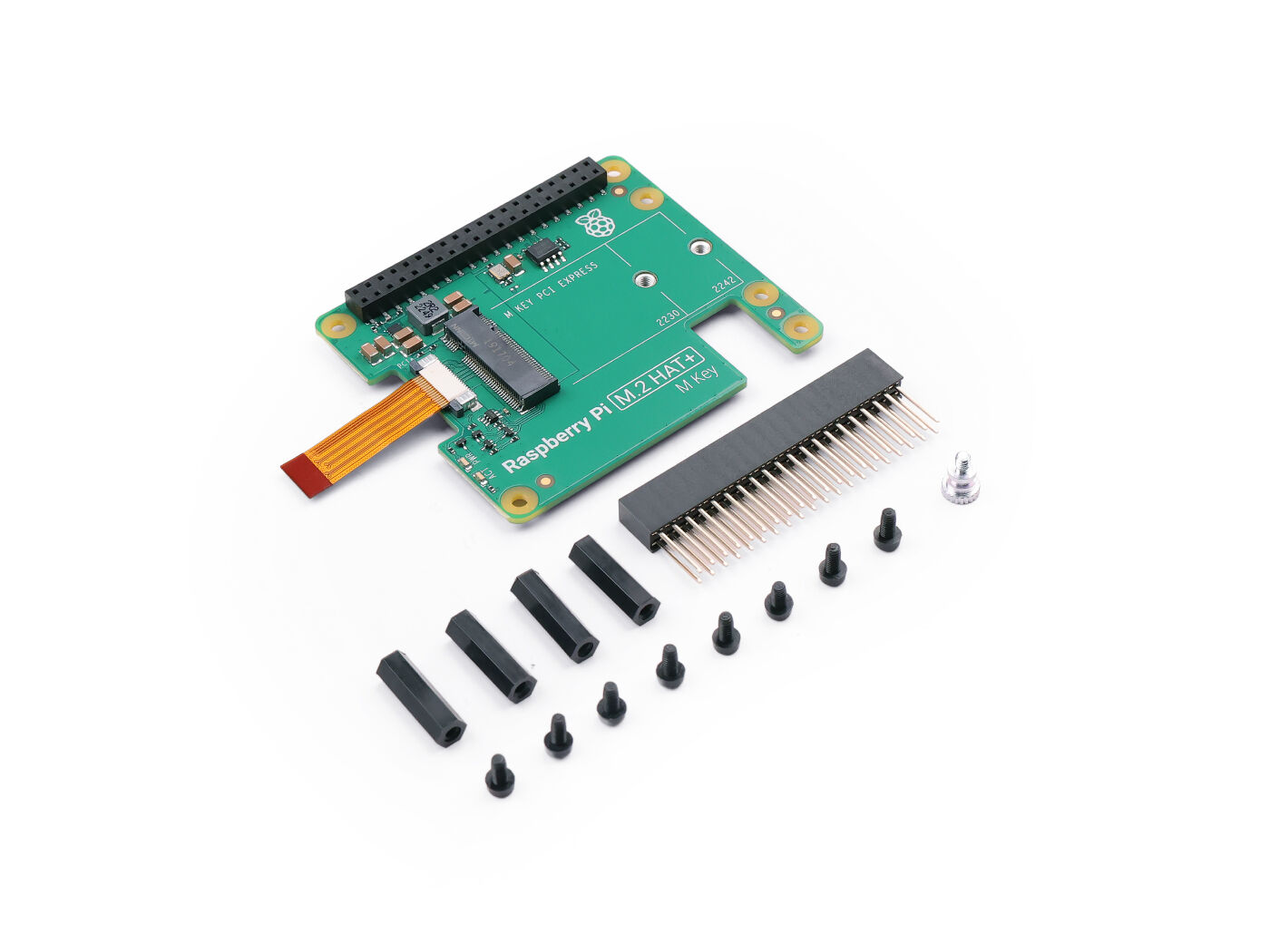

• Various Peripheral Accessories:Supplied with ribbon cable, 16mm stacking header, threaded  spacers and screws, and knurled double-flanged screw to  secure and support the M.2 peripheral.

Description

Raspberry Pi M.2 HAT+ serves as an official M.2 connector accessory specifically designed for the Raspberry Pi 5. The Raspberry Pi M.2 HAT+ enables you to connect M.2 peripherals such as NVMe drives and AI accelerators to Raspberry Pi 5’s PCIe 2.0 interface, supporting fast  (up to 500 MB/s) data transfer to and from NVMe drives and other PCIe accessories. Raspberry Pi 5’s single-lane PCI Express 2.0 interface is exposed on a 16-pin, 0.5mmpitch FPC connector; the M.2 HAT+ M Key is a mechanical adapter board that converts  between this connector and a subset of the M.2 standard. It supports devices that  have the M.2 M key edge connector, in the 2230 and 2242 form factors. It is capable of  supplying up to 3A to connected M.2 devices. The Raspberry Pi M.2 HAT+ conforms to the Raspberry Pi HAT+ specification and is  autodetected by the latest Raspberry Pi software/firmware. It is supplied with a 16mm  stacking header and threaded spacers, so it can be fitted to a Raspberry Pi 5 with the  Raspberry Pi Active Cooler in place.
