Description
This camera sensor is all-model-Raspberry Pi-compatible, designed to M12 mount lenses. It offers 12.3-Megapixel black-illuminated with stacked Sony IMX477R sensor. It is well suited to industrial and consumer applications.
Feature
- Raspberry Pi High Quality Camera Sensor: 12.3-Megapixel Sony IMX477R, black-illuminated CMOS with great sensitivity, 7.9mm-diagonal sensor for impressive low-light performance
- Support M12 mount lenses: Design to work with most interchangeable M12 lenses
- Suitable for industrial and consumer applications: Offer highest levels of visual fidelity and integration with specialist optics
- Compatible with all models of Raspberry Pi
- IR Cut Filter integrated
Description

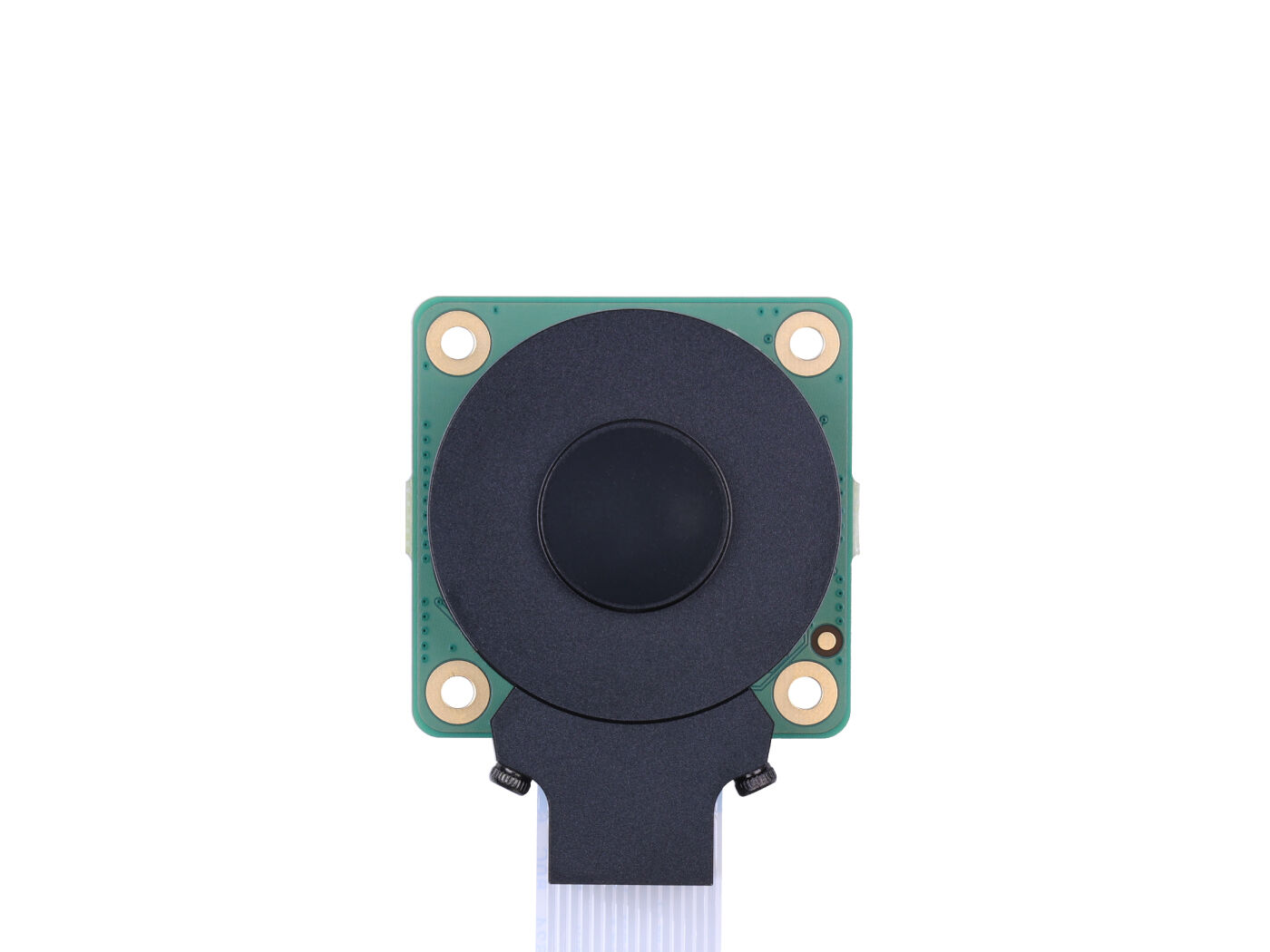

Raspberry Pi HQ Camera – M12 mount offers 12-megapixel resolution and a 7.9mm-diagonal sensor for impressive low-light performance,designed to work with most interchangeable M12 lenses.

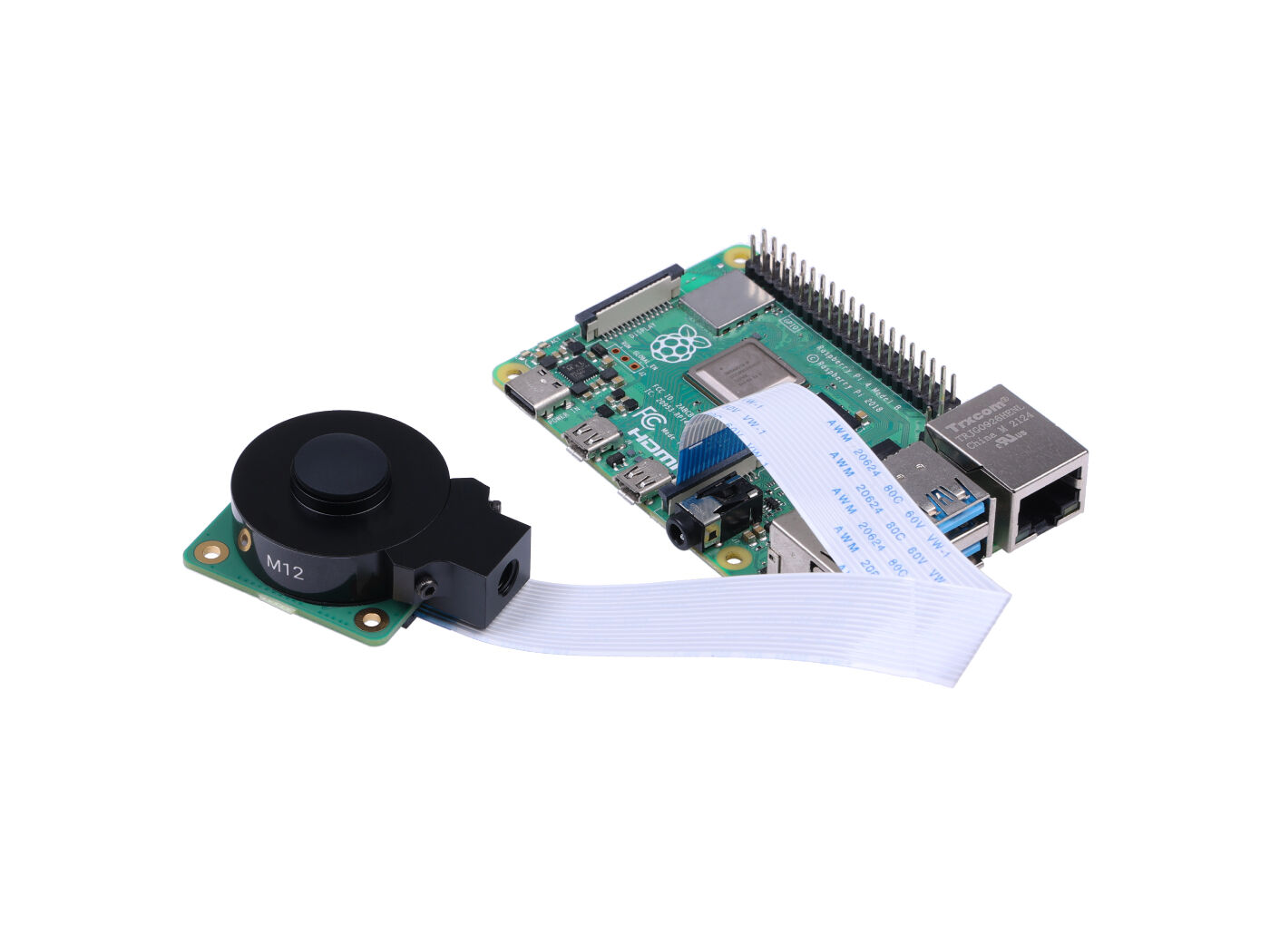

This camera sensor is well suited to industrial and consumer applications, including security cameras, which require the highest levels of visual fidelity and/or integration with specialist optics. It is compatible with all models of Raspberry Pi computer from Raspberry Pi 1 Model B onwards, using the latest software release.
Application
- Industry monitor
- Image capture for AI applications
- Retail store monitor
- Wide-angle lens for a DIY sports camera
Specification
|
Parameter |
Detail |
|
Sensor |
Sony IMX477R stacked, back-illuminated sensor |
|
Resolution |
12.3 megapixels |
|
Sensor size |
7.9mm sensor diagonal |
|
Pixel size |
1.55μm × 1.55μm |
|
Output |
RAW12/10/8, COMP8 |
|
Back focus length of lens |
2.6mm – 11.8mm |
|
Lens sensor format |
1/2.3” (7.9mm) or larger |
|
IR cut filter |
Integrated |
|

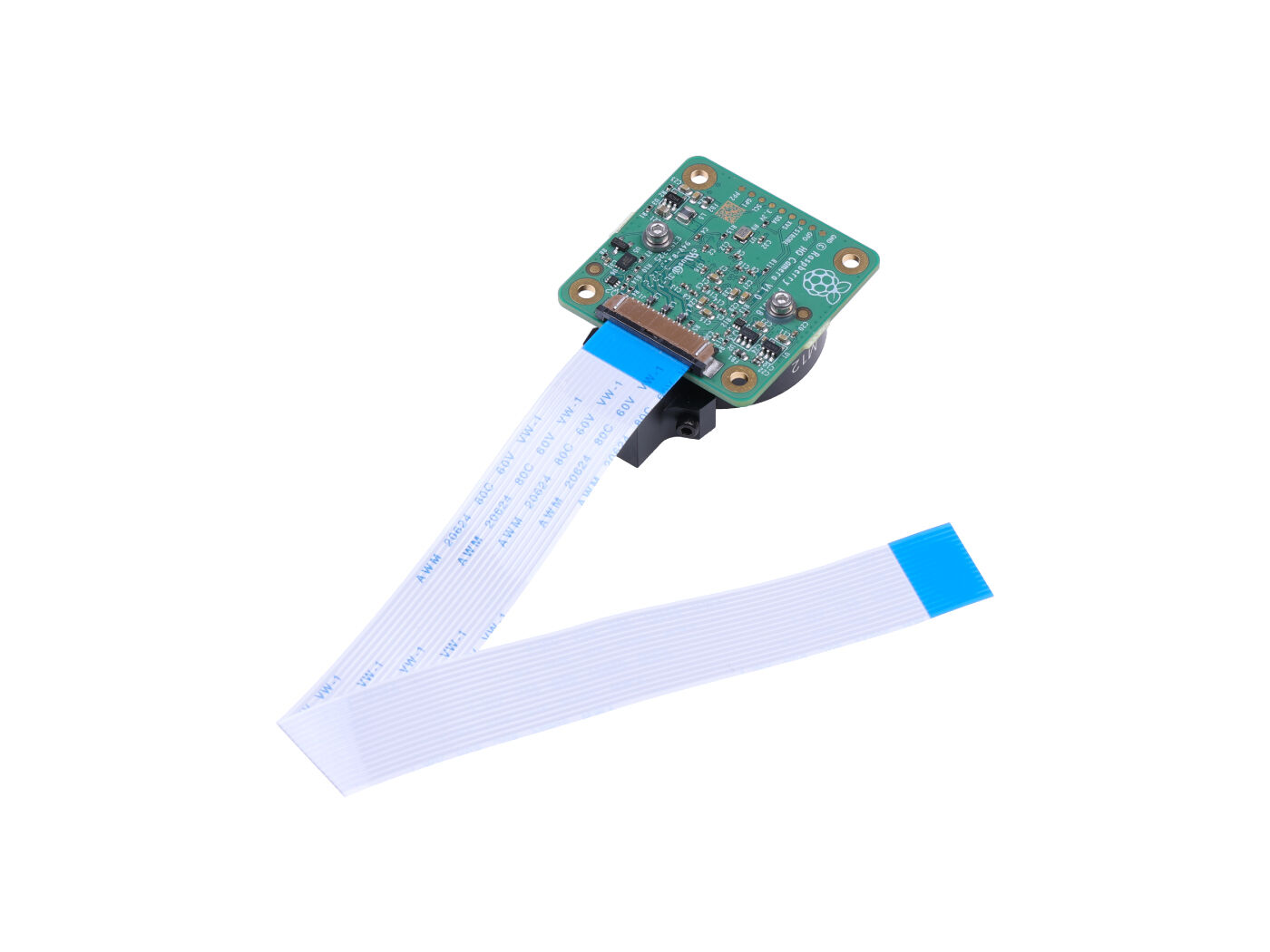

Ribbon cable length |
200mm |
|
Tripod mount |
1/4”-20 |
|
Compliance |
FCC 47 CFR Part 15, Subpart B, Class B Digital Device Electromagnetic Compatibility Directive (EMC) 2014/30/EU Restriction of Hazardous Substances (RoHS) Directive 2011/65/EU |

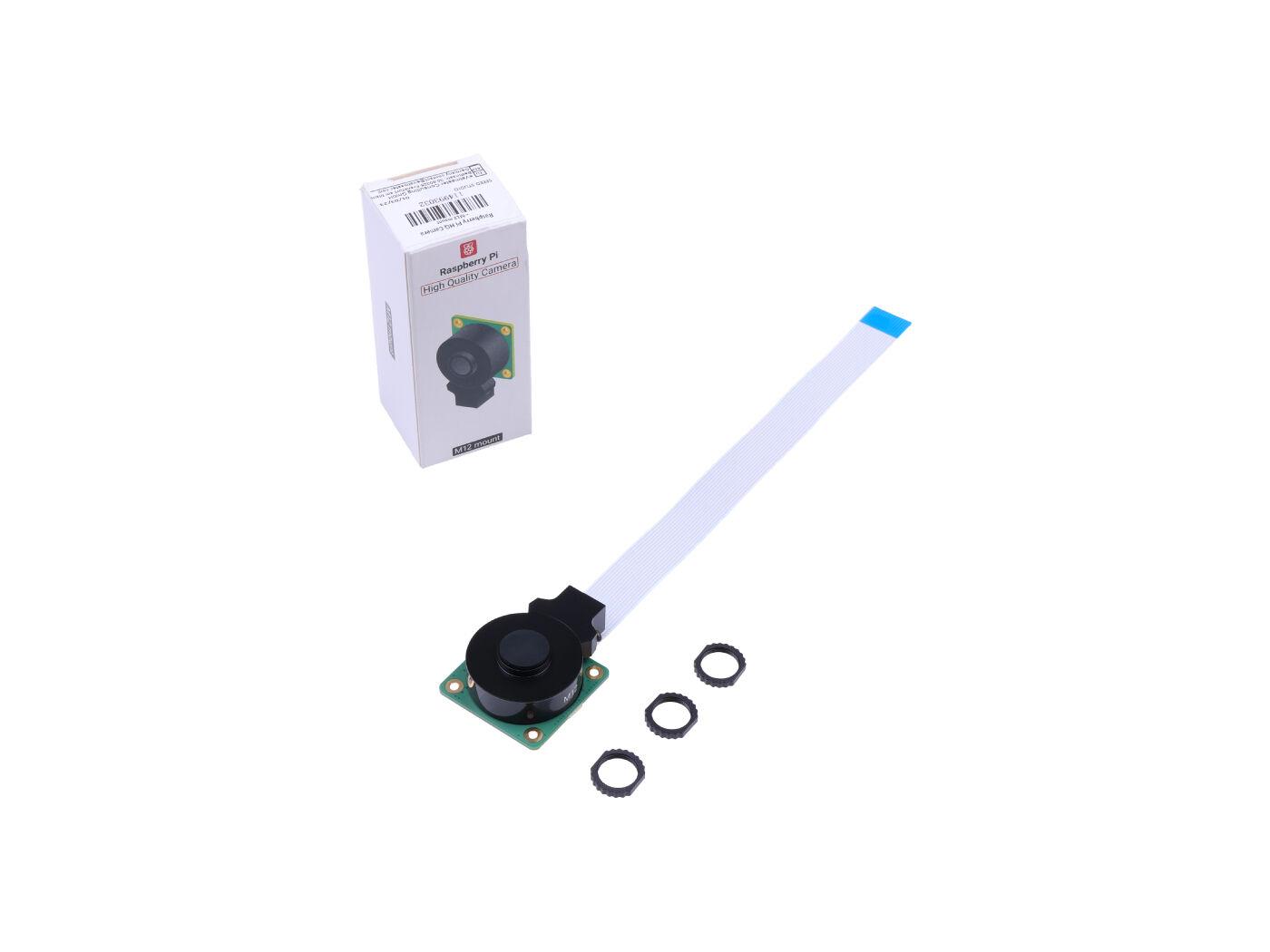

Part List
|
Raspberry Pi HQ Camera – M12 mount |
x1 |
|
Conversion ring |
x3 |
