Description
Description
Raspberry Pi HDMI LCD (10.1 inch) is a IPS, 1280×800, 10.1 inch Capacitive Touch Screen LCD, supports Multi mini-PCs, Multi-Systems, designed for Raspberry Pi.
Feature
- IPS screen,1280×800 high resolution
- Capacitive touch control, supports up to ten-points touch
- When works with Raspberry Pi, supports Raspbian, Ubuntu, single touch, and driver free
- When work as a computer monitor, supports Windows 10/8.1/8/7, ten-points touch, and driver free
- Supports Banana Pi, Banana Pro, comes with Lubuntu, Raspbian images
- Supports BB Black, comes with Angstrom image
- HDMI interface for displaying, USB interface for touch control
- Backlight control to lower power consumption

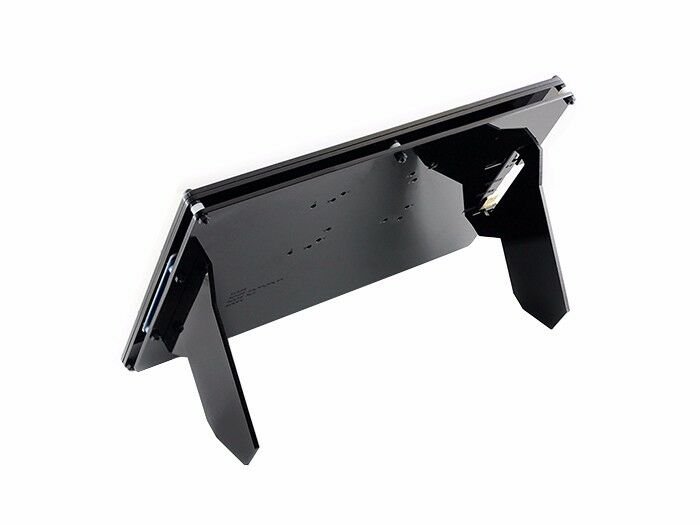

The Case
- Material : high quality black Acrylic
- Comes with back holder, 30°/45° tilt angle
- Features mounting holes for Raspberry Pi 3B/2B/B+/A+/B, BB Black, Banana Pi
Tip
We also offer the alternative choice in different screen sizes of Raspberry Pi HDMI LCD (5 inch) and Raspberry Pi HDMI LCD (7 inch),

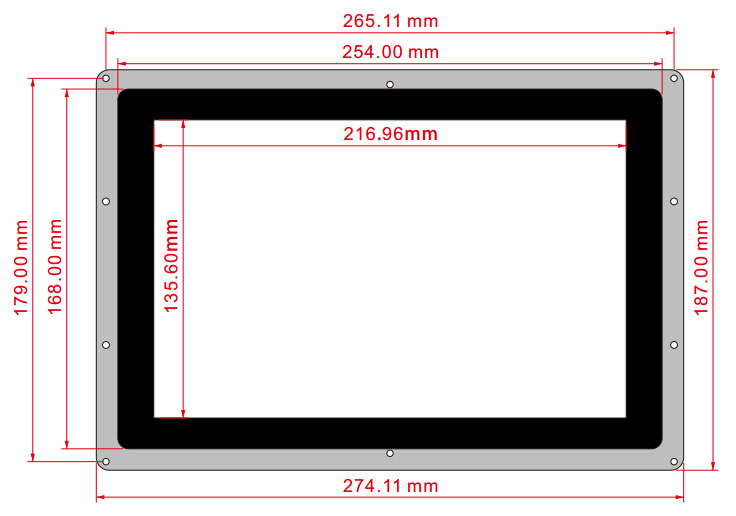

Dimensions

More choices for Raspberry Pi Displays
| Product name | Resolution | Power supply | Display interface | For use with | Dimension(mm) | Touch panel type | Display tec. |
|---|---|---|---|---|---|---|---|
| 5 inch 720×1280 HDMI IPS LCD Display | 720×1280 | 5V | HDMI2.0 | Raspberry Pi3, Windows, etc. | 134×84 | None | IPS |
| 5 inch 800×480 Capacitive TouchScreen | 800×480 | 5V | HDMI & USB 2.0 | Raspberry Pi3, Windows, etc. | 184x106x45 | Capacitive | TFT |
| 5 Inch HDMI Display with USB TouchScreen | 800×480 | 5V | HDMI & USB 2.0 | Raspberry Pi3, Pi4, Windows, etc. | 170x90x40 | Resistive | TFT |
| 5 inch Capacitive touch screen & Acrylic Case Kit | 800×480 | 5V | HDMI & USB 2.0 | Raspberry Pi3, Windows, etc. | 210x150x50 | Capacitive | TFT |
| 7 inch 720×1280 HDMI IPS LCD Display | 720×1280 | 5V | HDMI2.0 | Raspberry Pi3, Pi4, Windows, etc. | 192×118 | None | IPS |
| Raspberry Pi 7 inch Touchscreen Display | 800×480 | 5V | Display ribbon cable | Raspberry Pi3, Pi2, Pi | 194x110x20 | Capacitive | TFT |
| 7 Inch 1024×600 Capacitive Touch Screen With Camera Kit | 1024×600 | 5V | HDMI & USB 2.0 | Raspberry Pi3, Windows, etc. | 177x113x15 | Capacitive | TFT |
| 10.1 inch 1200×1920 HDMI IPS LCD Display | 1200×1920 | 5V | HDMI2.0 | Raspberry Pi3, Pi4,Windows,etc. | 255×165 | None | IPS |
| 15.6 Inch 1920*1080 Full HD IPS Touch Screen Portable Monitor | 1920×1080 | 5V | Mini DP/ Mini HDMI / Type C | Raspberry Pi3,Pi4,Windows,etc. | 375x230x12 | Capacitive | IPS |
| 7 Inch HDMI 1280×800 IPS Display | 1280×800 | 7.5V~12V | AV + VGA + HDMI (HDMI 1.2) | Raspberry Pi3, Windows, etc. | 162x106x5 | None | IPS |
| 7 Inch 1024×600 Capacitive Touch Screen DIY Kit | 1024×600 | 5V | AV + VGA + HDMI (HDMI 1.2) | Raspberry Pi3, Windows, etc. | 265x165x50 | Capacitive | TFT |
| 10.1 Inch LCD Display – 1366×768 HDMI&VGA&NTSC&PAL | 1366×768 | 5V~24V | AV + VGA + HDMI (HDMI 1.2) | Raspberry Pi3,Pi4,Windows,etc. | 230x150x5 | None | TFT |
| Raspberry Pi HDMI LCD (10.1 inch) | 1280×800 | 5V | HDMI & USB 2.0 | Raspberry Pi3,Pi4,Windows,etc. | 290x200x35 | Capacitive | IPS |
