Description

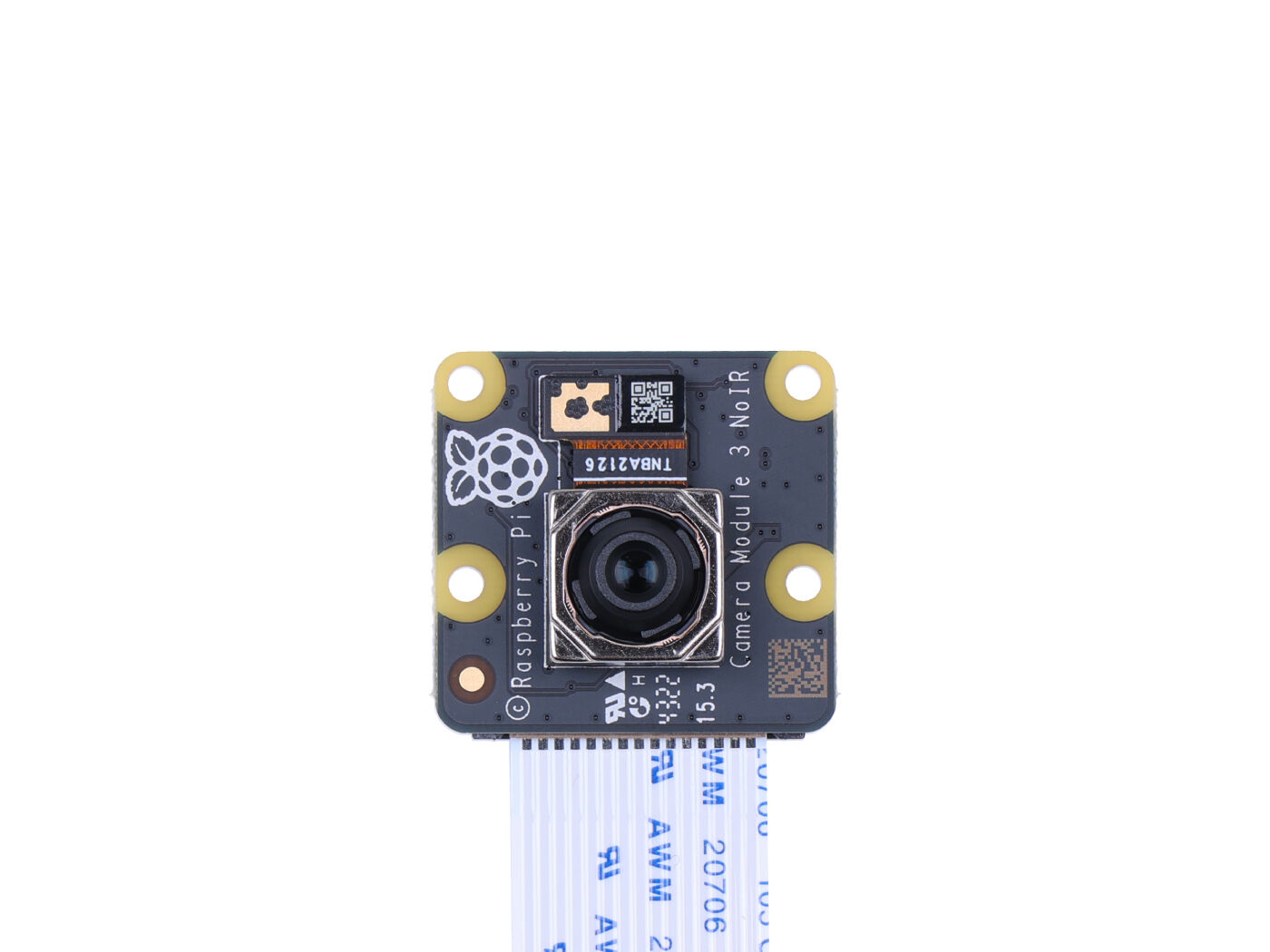

Raspberry Pi Camera Module 3 NoIR is a compact camera from Raspberry Pi. It offers an IMX708 12-megapixel sensor with HDR, and features phase detection autofocus.
Feature
- Raspberry Pi Camera Module Third Generation: Back-illuminated and stacked CMOS 12-megapixel image sensor (Sony IMX708) with HDR for up to 3 megapixel output
- High-quality Image Output: 4608 × 2592 pixels, along with built-in 2D DPC and QBC Re-mosaic function, offering high SNR
- Autofocus System: Phase detection autofocus
- CSI-2 serial Data Output: 2-wire serial communication, supporting I2C fast mode and fast-mode plus
Description

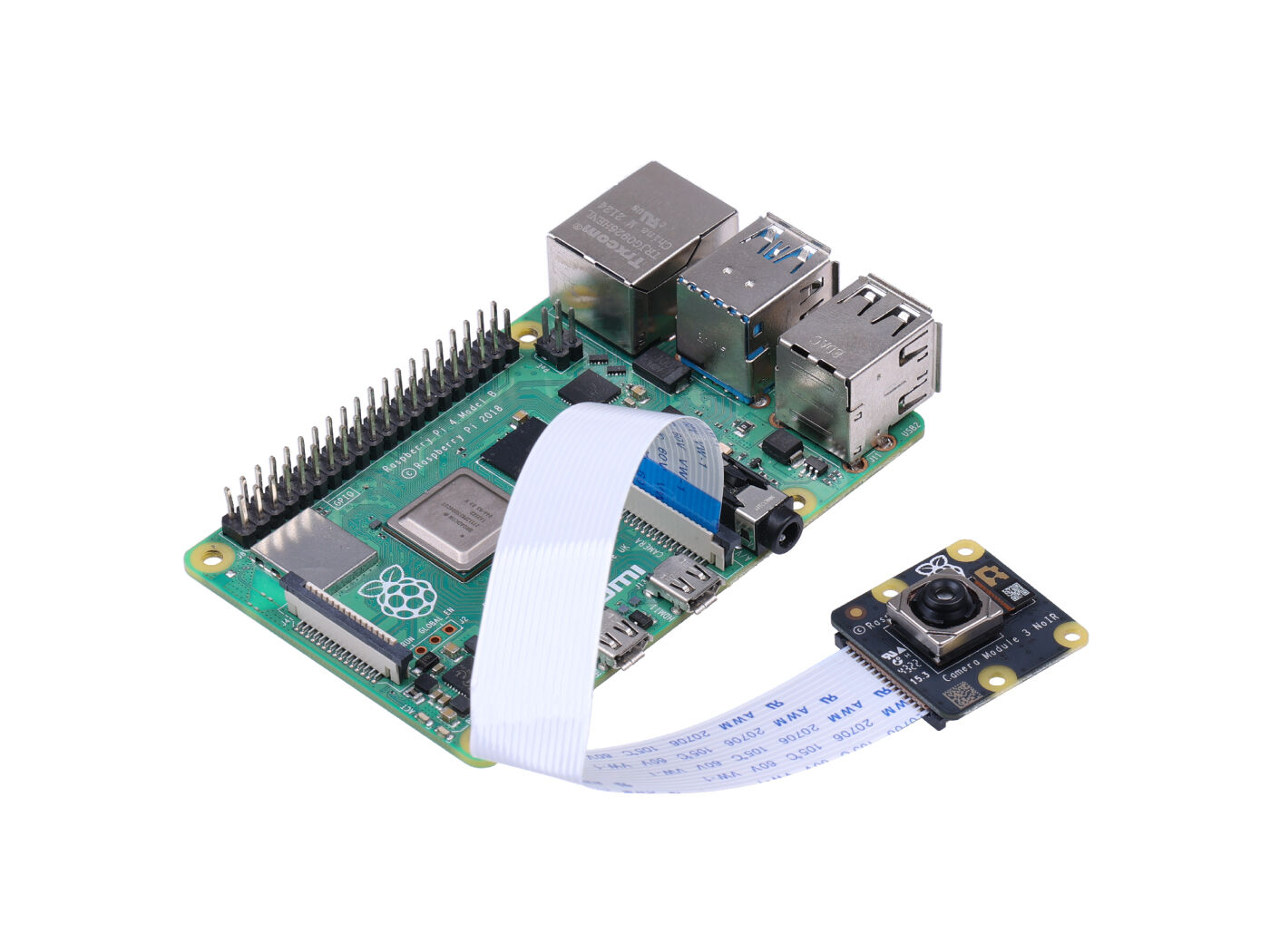

Raspberry Pi Camera Module 3 NoIR can be used to take full HD video as well as stills photographs, and features an HDR mode up to 3 megapixels. Its operation is fully supported by the libcamera library, including Camera Module 3’s rapid autofocus feature: this makes it easy for beginners to use, while offering plenty for advanced users. Camera Module 3 is compatible with all Raspberry Pi computers.
Raspberry Pi Camera Module 3 Series Comparison
|
|
|
Camera Module 3 NoIR |
|
|
|
Focus range |
10cm –∞ |
10cm –∞ |
5cm –∞ |
5cm –∞ |
|
Focal length |
4.74mm |
4.74mm |
2.75mm |
2.75mm |
|
Diagonal field of view |
75 degrees |
75 degrees |
120 degrees |
120 degrees |
|
Horizontal field of view |
66 degrees |
66 degrees |
102 degrees |
102 degrees |
|
Vertical field of view |
41 degrees |
41 degrees |
67 degrees |
67 degrees |
|
Focal ratio (F-stop) |
F1.8 |
F1.8 |
F2.2 |
F2.2 |
|
Infrared-sensitive |
No |
Yes |
No |
Yes |
Application
- High quailty monitor
- Learning camera
- Image capture for AI applications
Specification
|
Parameter |
Detail |
|
Sensor |
Sony IMX708 |
|
Resolution |
11.9 megapixels |
|
Sensor size |
7.4mm sensor diagonal |
|
Pixel size |
1.4μm × 1.4μm |
|
Horizontal/vertical |
4608 × 2592 pixels |
|
Common video modes |
1080p50, 720p100, 480p120 |
|
Output: |
RAW10 |
|
Autofocus system |
Phase Detection Autofocus |
|

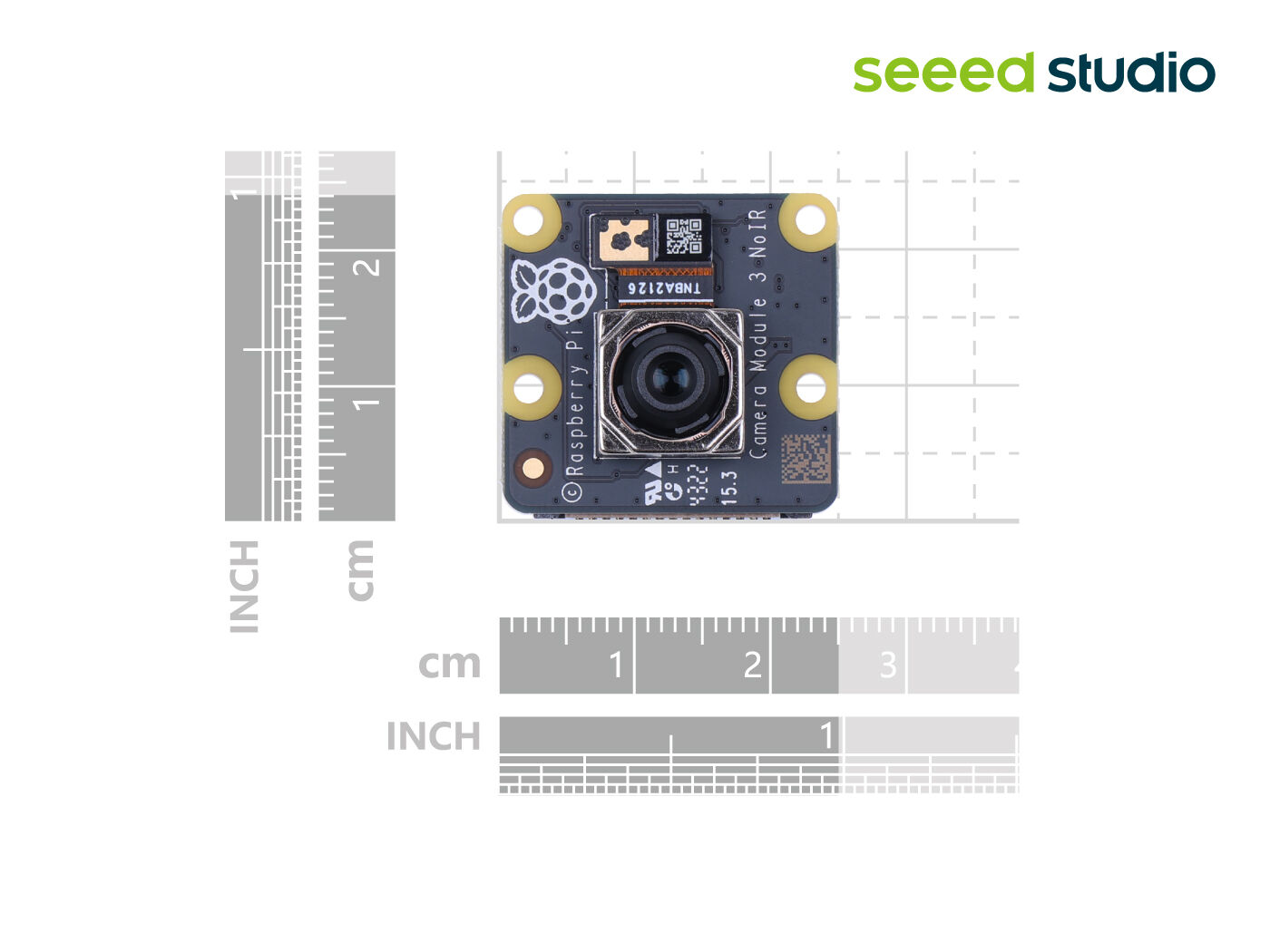

Dimensions |
25 × 24 × 11.5mm (12.4mm height for Wide variants) |
|

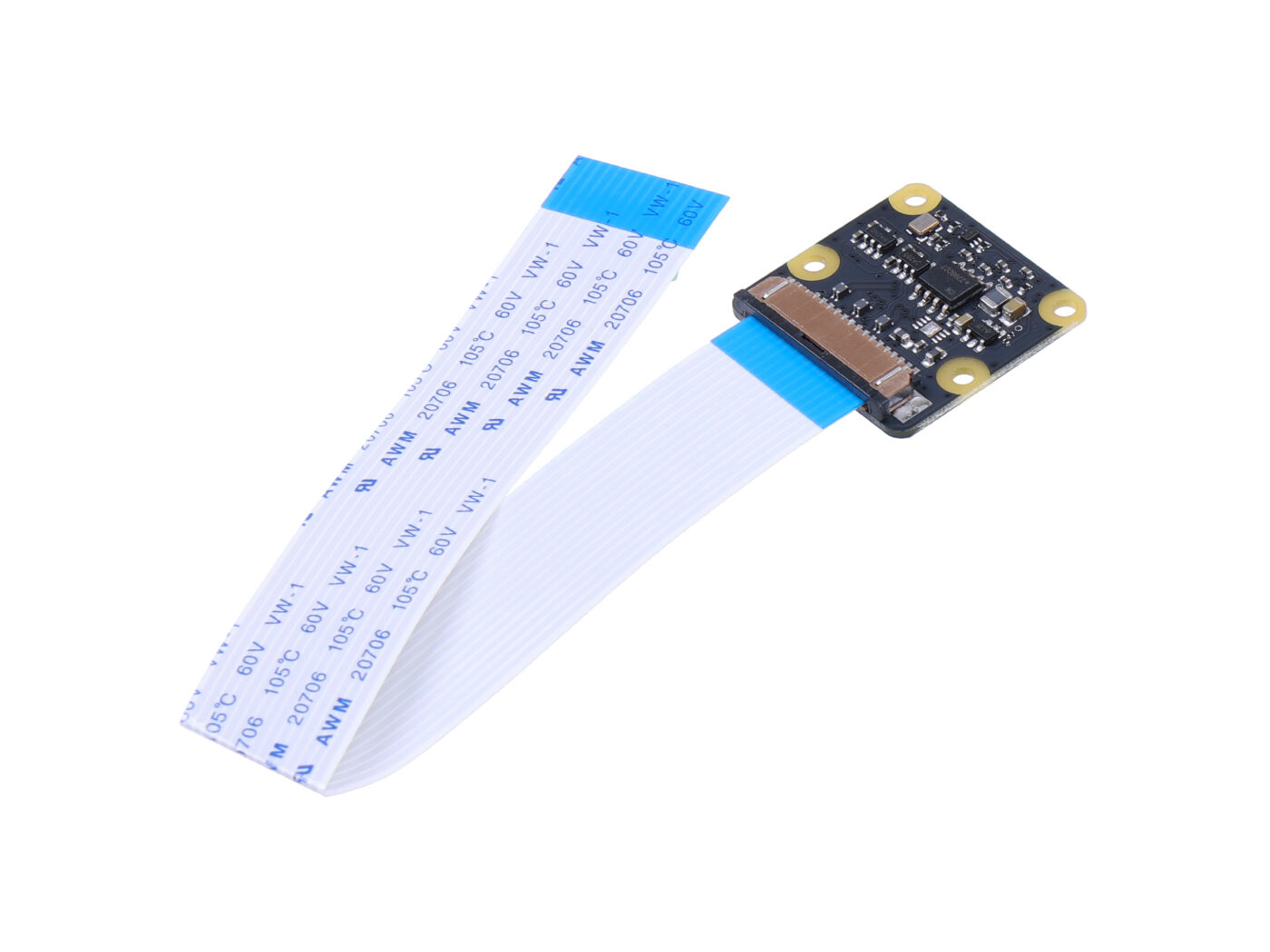

Ribbon cable length |
200mm |
|

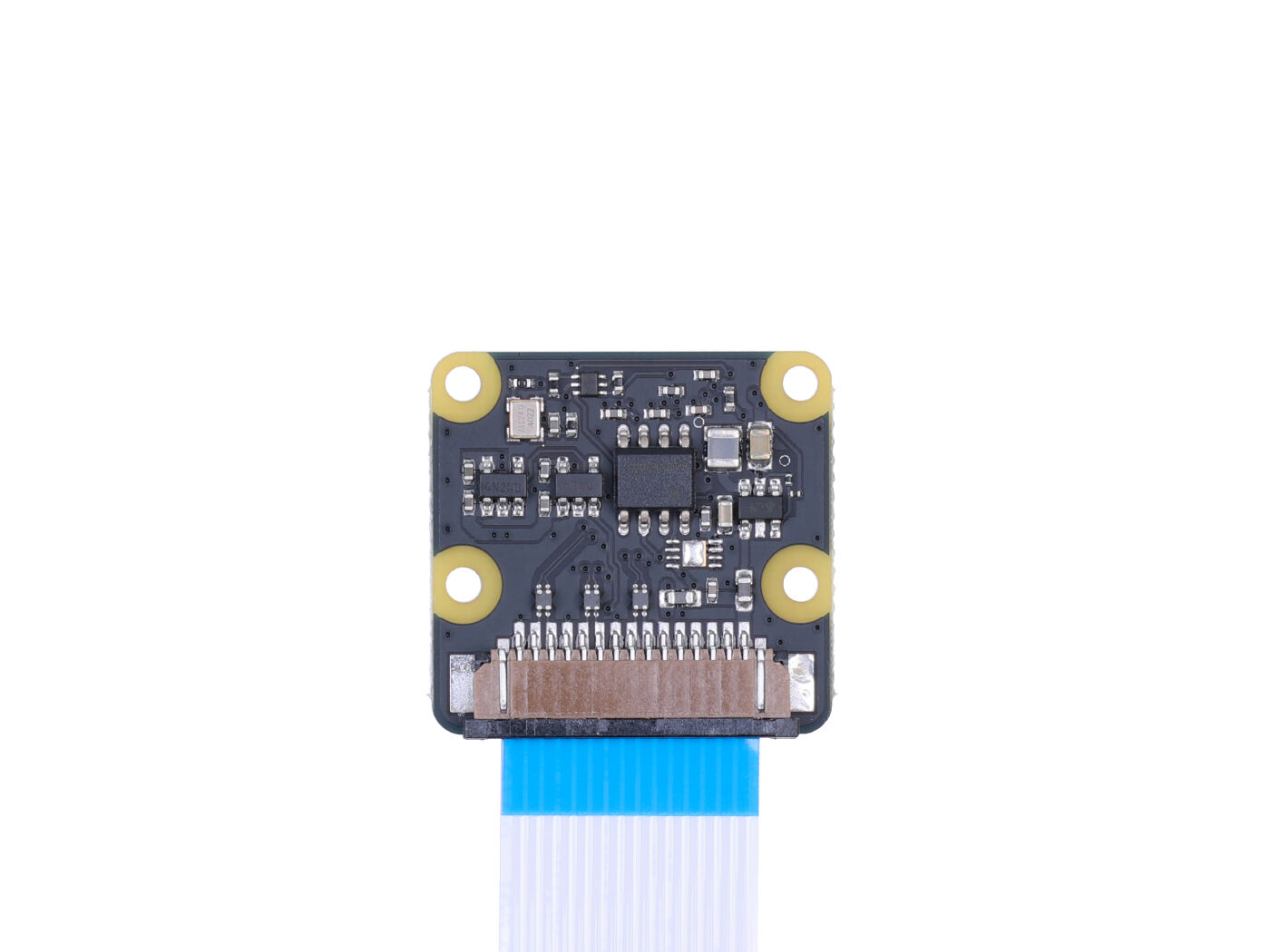

Cable connector |
15 × 1mm FPC |
|
Compliance |
FCC 47 CFR Part 15, Subpart B, Class B Digital Device, Electromagnetic Compatibility Directive (EMC) 2014/30/EU, Restriction of Hazardous Substances (RoHS) Directive 2011/65/EU |
Part List

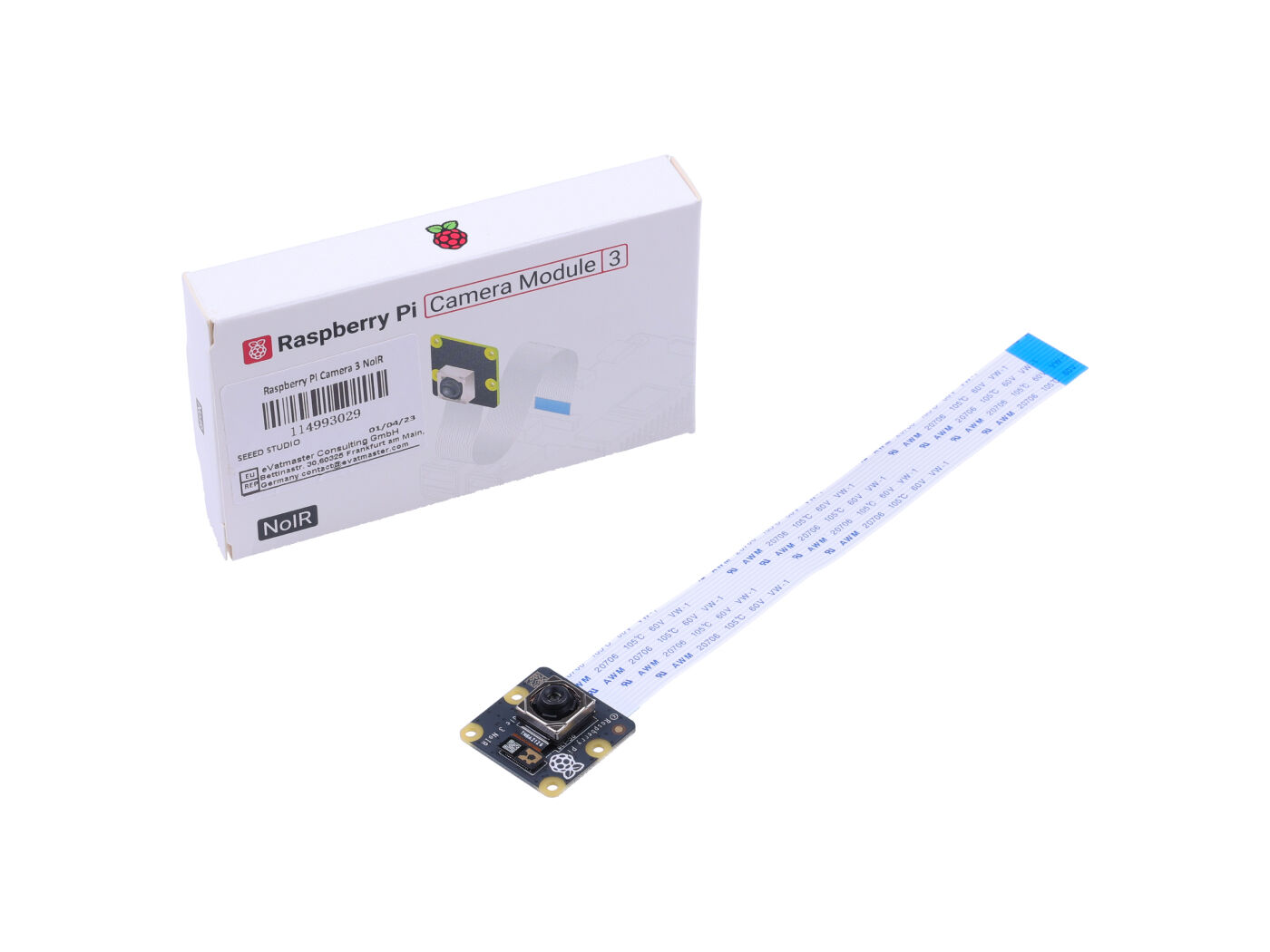

| Raspberry Pi Camera 3 NoIR | ×1 |
FAQ
Is there any size differences between the Raspberry Pi Camera Module 2 and Raspberry Pi Camera Module 3?
- The PCB size and mounting holes remain the same as for Camera Module 2.
- The Z dimension differs: due to the improved optics, Camera Module 3 is several millimetres taller than Camera Module 2
