Description

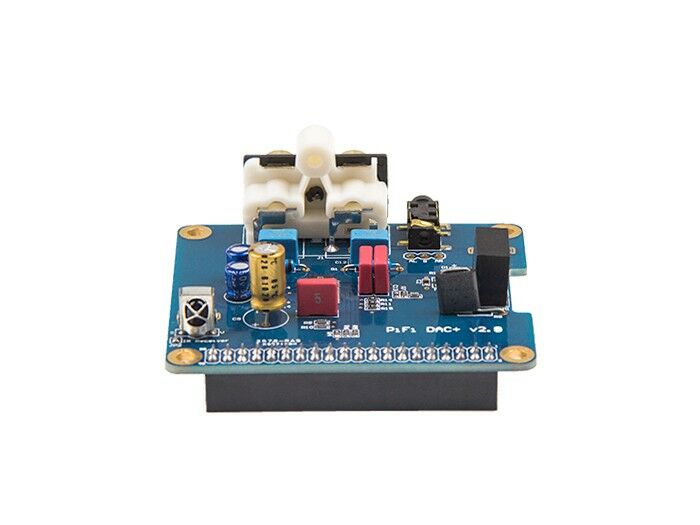

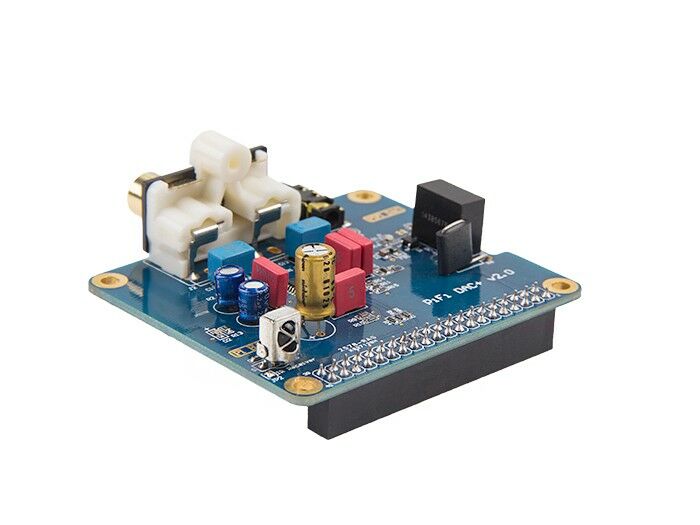

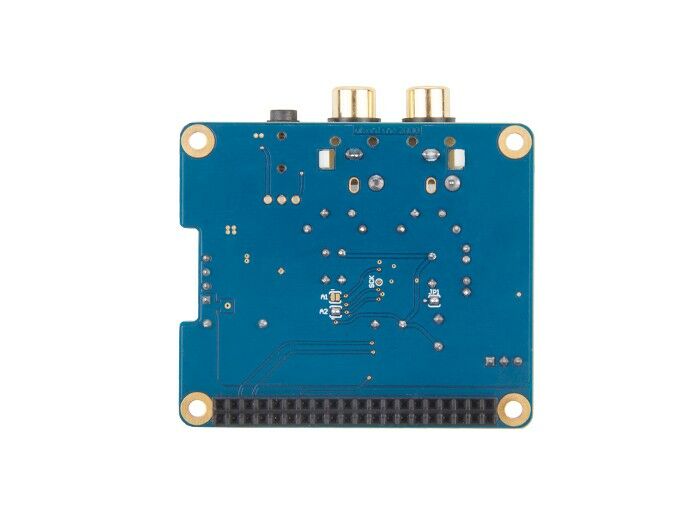

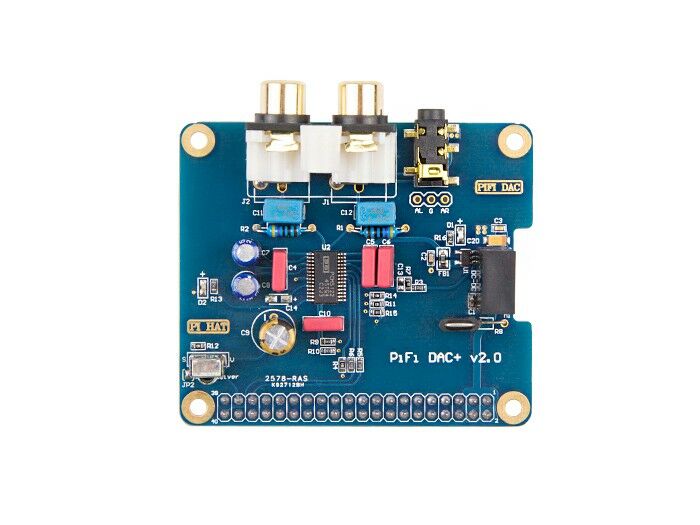

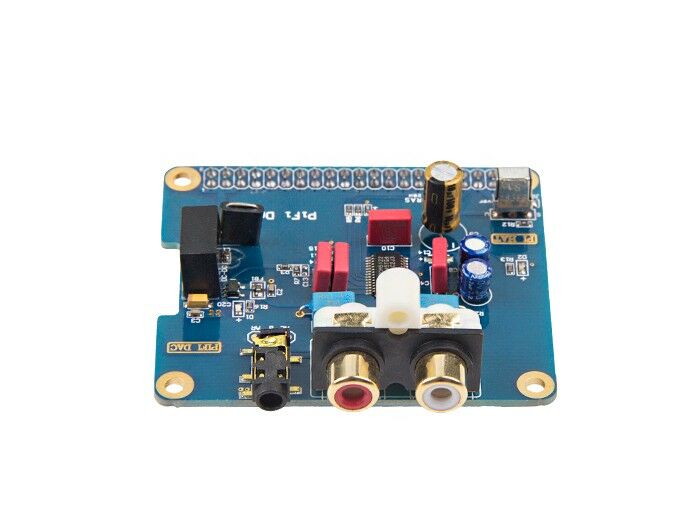

HIFI DAC+ Digital Audio Card Pinboard designed For Raspberry PI 2 Model B +, adopt high-end DAC chip PCM5122 of TI Company.
You can setup internet HIFI player by Volumio or xbmc system.
-
Using PCM5122 DAC chip from Burr-Brown Corporation, with 32-bit, 384kHz PCM interface, I2S data format.
-
Dual Gold-plated RCA jacks, keep fantastic conductive properties!
-
Gold-plated 3.5mm line out jack (Not for your earphones, it's for audio power amplifiers only!)
-
Special designed power source system by U-geek, isolating DAC power source part from the Raspberry Pi power source system, keeps the current noise away, gives you crystal clear sound.
-
High quality U-geek Designed PCB – check out our other products and you'll know what I mean!
-
Please check out the following resisters and capacitors that we used on this DAC+ –
-
we choose the best quality components that are usually used on professional HiFi devices
-
and that's where your good audio quality comes from:
-
VISHAY resister (made in Czech)
-
ELNA RBP2 capacitor (made in Japan)
-
WIMA MKS2 capacitor (made in Germany)
-
ERO KP1830 capacitor (made in Germany)
-
Nichicon FG series capacitor (made in Japan)
-
IR remote interface
Technical Detailes:
1.Sampling Frequency:384KHz
2.Resolution (Bits) :16-32
3.Digital Audio Interface :I2S
4.SNR :120dB
5.THD:-93dB
6. Dynamic range :112dB
7.Supports Raspberry Pi B+, Raspberry Pi 2 Model B
Package Weight: 0.03kg (0.07lb.)
Package Size: 10cm x 10cm x 10cm (3.94in x 3.94in x 3.94in)
1 x HiFi DAC+ Module
HIFI DAC+ Digi+ in Koli/OpenElec
