QI Wireless Charging Module Kit – 5V&1A

Description

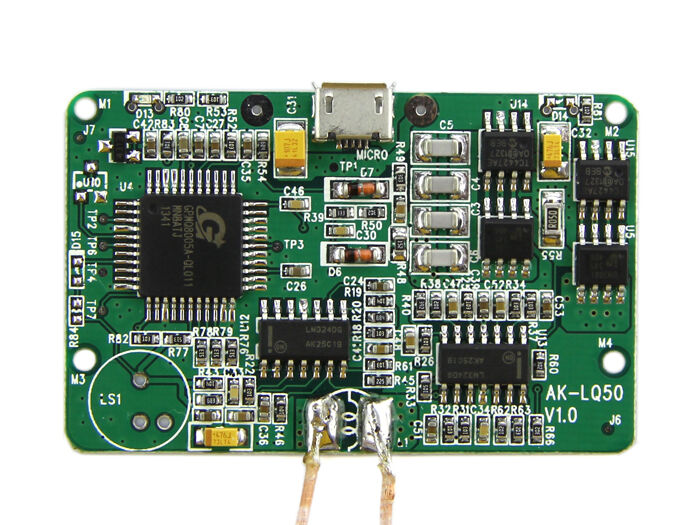

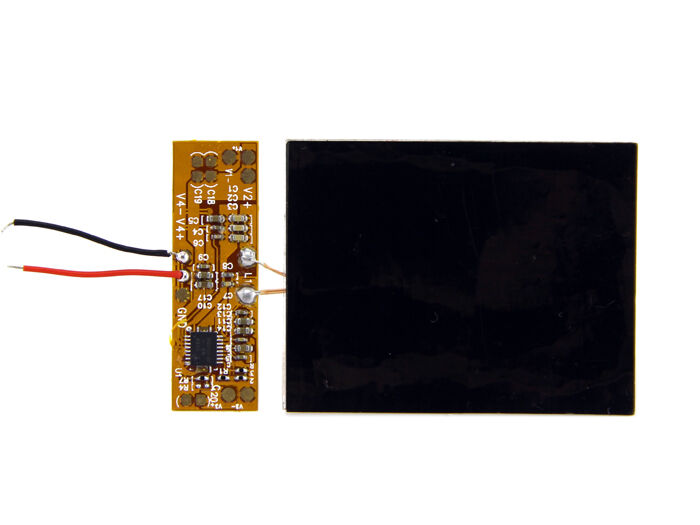

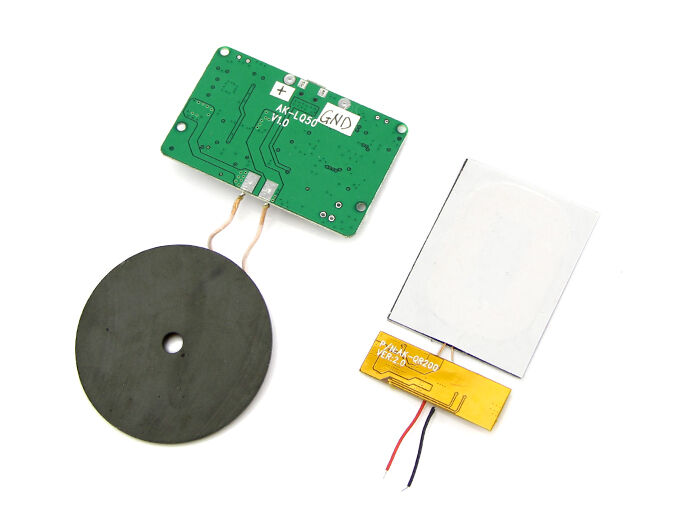

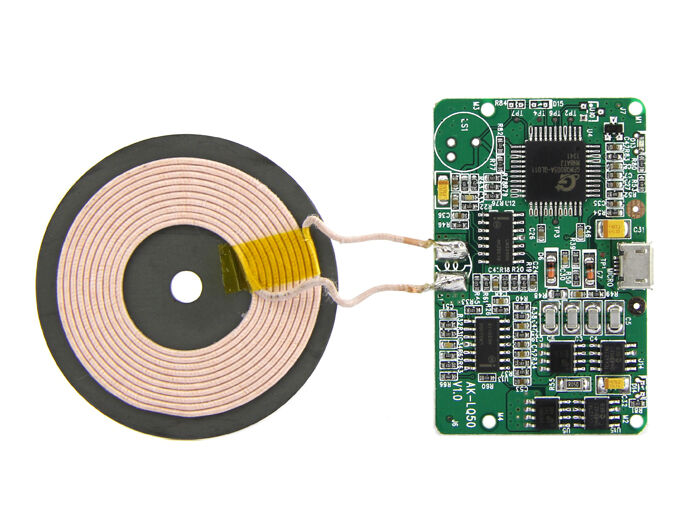

This is a pair of wireless charging kit including transmitter and receiver. The transmitter is a build-in wireless charging module of mobile phone wireless charger, it fits wireless charging standard set by the WPC, compatible with most wireless charging mobile devices on market such as LG Nexus 4/5, Lumia920. High output current capability up to 1A at 5V. The receiver consists of a FPCB and a sticking antenna, it features only 1.2mm thick. It have been used as wireless charging case for mobile phone.

Features:

Qi-marked Product, Fit wireless Charging Standard Set by The WPC

• 3C and Qi Wireless Charging Standard Qualified

• Light Indicator to Show The Status of charging

• High Power Transform Efficiency

Specification：

• TX Input Voltage: DC 5V

• TX Input Current: 1 – 2A

• TX Output Voltage: DC 5V

• TX Output Current: Max.1A

• TX PCBA Dimensions: 55 x 35 x 3.5mm

• TX Coil Dimensions: 43(diameter) x 2.2mm

• TX Magnetic Sheet: 55(diameter) x 1mm

• RX Output: DC 5V

• RX Output Current: Max.600mA

• RX FPCB Dimensions: 36 x 12 x 1.2mm

• RX Antenna Dimensions: 46 x 36 x 1mm

• Charging Distance: 2 – 6mm

• Working Frequency: <200Khz

• Transfer Efficiency: Max.73%

• Operating temperature: -40 – 40℃
