Description
Features
- Powerful MediaTek i500 SoC combined with Quad-core Arm Cortex-A73 and Quad-core Cortex-A53 CPU for Edge AI applications
- Dual-Band Wi-Fi (2.4GHz/ 5GHz) and Bluetooth 5 for wireless connectivity
- Rich I/O for expandability
- Integrated security features such as Secure Boot, Trust Zone, TF-A, OP-TEE
- Support TensorFlow Lite/ Object detection with MobileNet and SSD models
Description

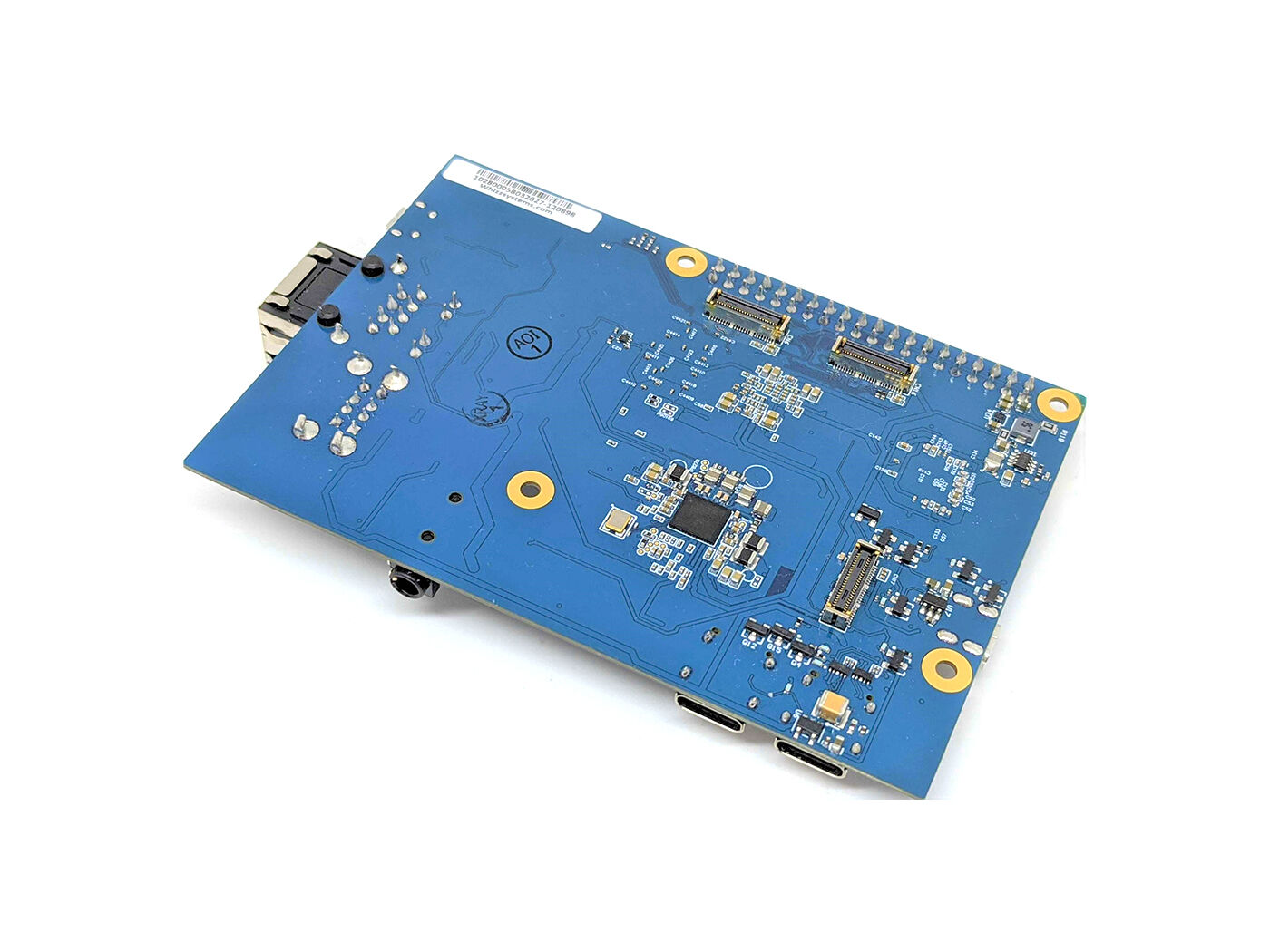

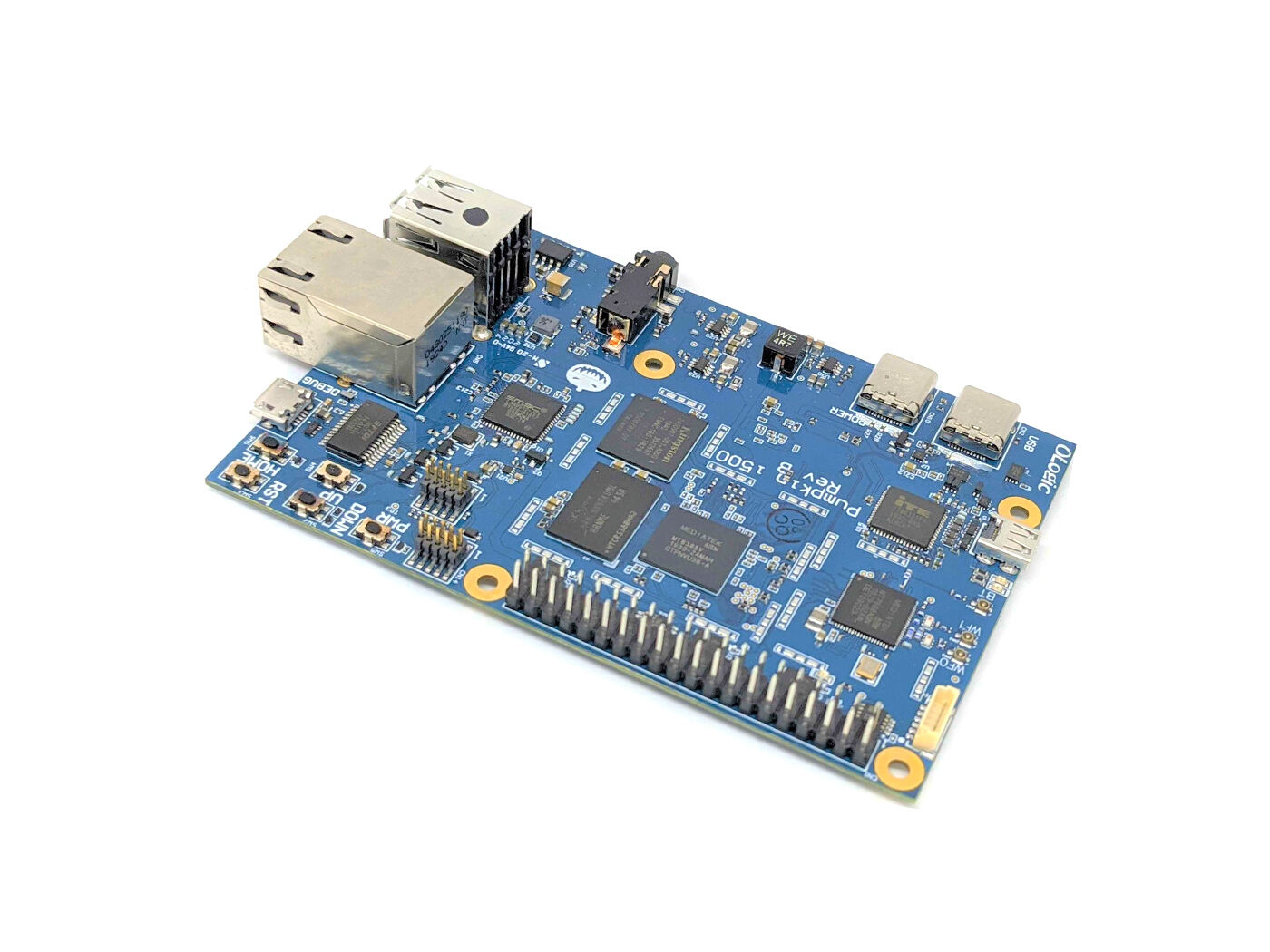

The Pumpkin i500 Evaluation Kit – Vision Edition is a single-board computer (SBC) powered by MediaTek i500 SoC. It features a quad-core Arm Cortex-A73 and quad-core Cortex-A53 power-efficient 64-bit CPU solution, which makes this kit a great solution for Edge AI vision devices.
Designed for AIoT market, this Evaluation Kit jump-starts the development of products with AI vision capabilities (control panels, smart hubs, point-of-sales, smart appliances, robots).
It is ready for Edge AI development and deployment with machine learning frameworks such as TensorFlow Lite to support models like object detection (for example MobileNet + SSD).
Also, it is suitable for indoor/outdoor home and industrial applications through extended coverage with Wi-Fi 5 2×2 MIMO
Specifications
| Specification | Details |
|---|---|
| SoC | MediaTek i500 |
| CPU | Quad-core Arm Cortex-A73 and Quad-core Cortex-A53 CPU @ 2.0 GHz |
| GPU | Arm Mali-G72 MP3 |
| Video | H.264, H.265 / HEVC, MPEG-1/2/4 decoder, H.264 encoder |
| Display | MIPI DSI – 4-lane |
| Camera interface | MIPI CSI, up to 25MP can be supported |
| RAM | 2GB LPDDR4 |
| Flash | 16GB eMMC |
| Wireless | MediaTek MT7668 Wi-Fi 5 (802.11ac) 2×2 MIMO dual-band (2.4GHz, 5GHz) Bluetooth 5 |
| Expansion | 40-pin GPIO connector |
| USB | Type-C (Host/Device, 5V DC power, charging) Type-A (Host) Micro-B (Serial Console) |
| Ethernet | 10/100Mbps |
| Audio | 3.5mm stereo headset jack 2x digital PDM microphone connectors 8-ch audio input / 8-ch audio output |
Software
| Feature | Details |
|---|---|
| OS | Yocto Linux, Android 10 |
| Kernel | 5.4 |
| Bootloader | U-Boot |
| Security | Secure Boot, TrustZone, TF-A, OP-TEE |
| AI | TensorFlow Lite Object detection (MobileNet + SSD) |
Part List
1 x Pumpkin i500 EVK Smart Vision Edition
