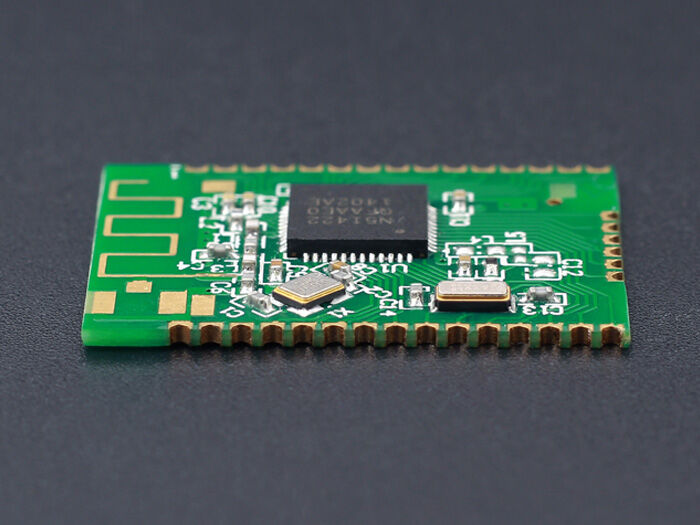

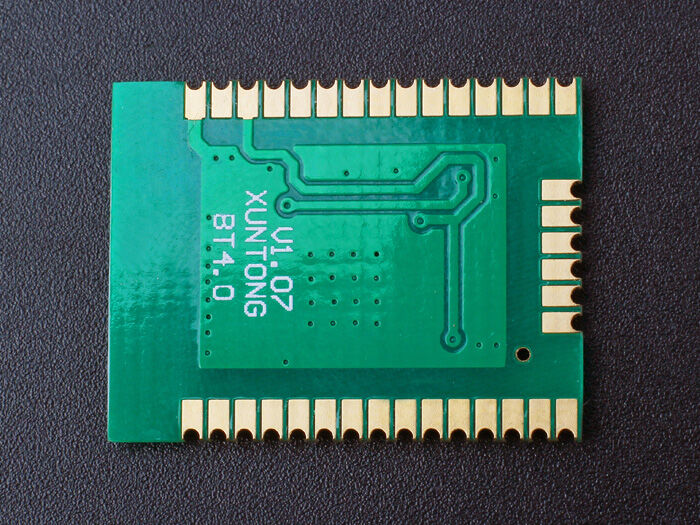

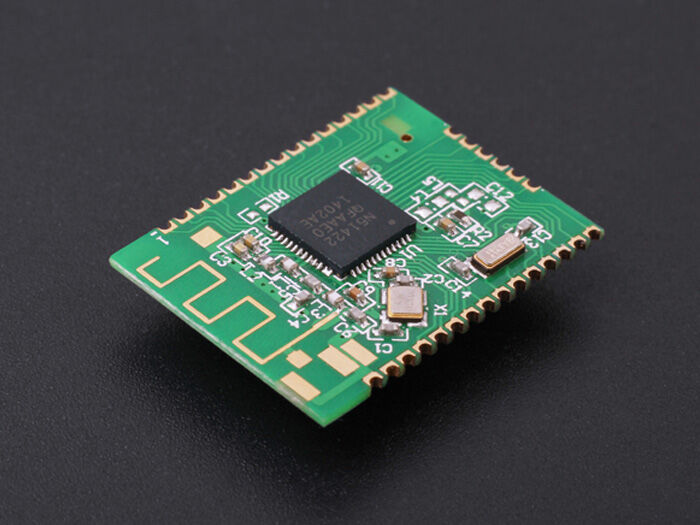

PTR9022 Multiprotocol ANT/BLE Module embedded ARM Cortex

Description

Multiprotocol ANT / Bluetooth Low Energy (BLE) module , released by XunTong Technology. The modules designed with nRF51422-QFAA-R from NORDIC,  high performance and ultra low power consumption, can easily be added in your design and accelerate your development process.

nRF51422 is an ultra-low power 2.4 GHz wireless System on Chip (SoC) integrating the nRF51 series 2.4 GHz

transceiver, a 32 bit ARM

Features:

• Worldwide 2.4G ISM Band, 250 kpbs/1 Mbps/2 Mbps on-air data rate options

• ARM® Cortex™-M0 32 bit processor, 256 kB flash memory, 16 kB RAM.

• TX Power -20 to +4 dBm in 4 dB steps

• -90 dBm sensitivity in ANT mode

• -90 dBm sensitivity in Bluetooth® low energy mode

• 10.5 mA peak TX (0 dBm), 13 mA peak RX,RSSI (1 dBm resolution)

• Flexible real-time counter and Two 16 bit and one 24 bit timers with counter mode

• Rich set of digital interfaces including: SPI, 2-wire , and UART

• Programmable Peripheral Interconnect(PPI)

• 32.768 kHz crystal on board

• 8/9/10 bit ADC – 8 configurable channels

• AES encryption /decryption accelerator

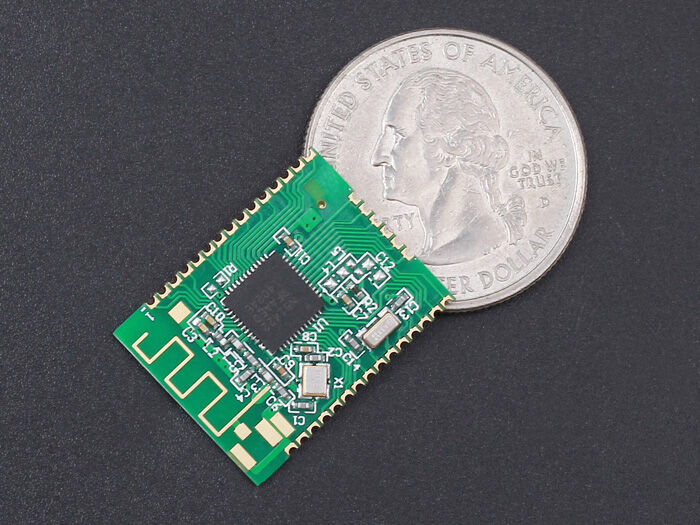

• Minimum Size about 26mmX19mmX2mm with Antenna, 1.27mm pin pitch

• The module design with nRF51422-QFAA-R

Specification:

Applications：

• Personal Area Networks

• Health/fitness sensor and monitor devices

• Medical devices

• Key-fobs + wrist watches

• Remote control toys

• Home/industrial automation

• Environmental sensor networks

• Active RFID

• Personal Area Networks

• Health/fitness sensor and monitor devices

• Medical devices

• Key-fobs + wrist watch

• Remote control toys
