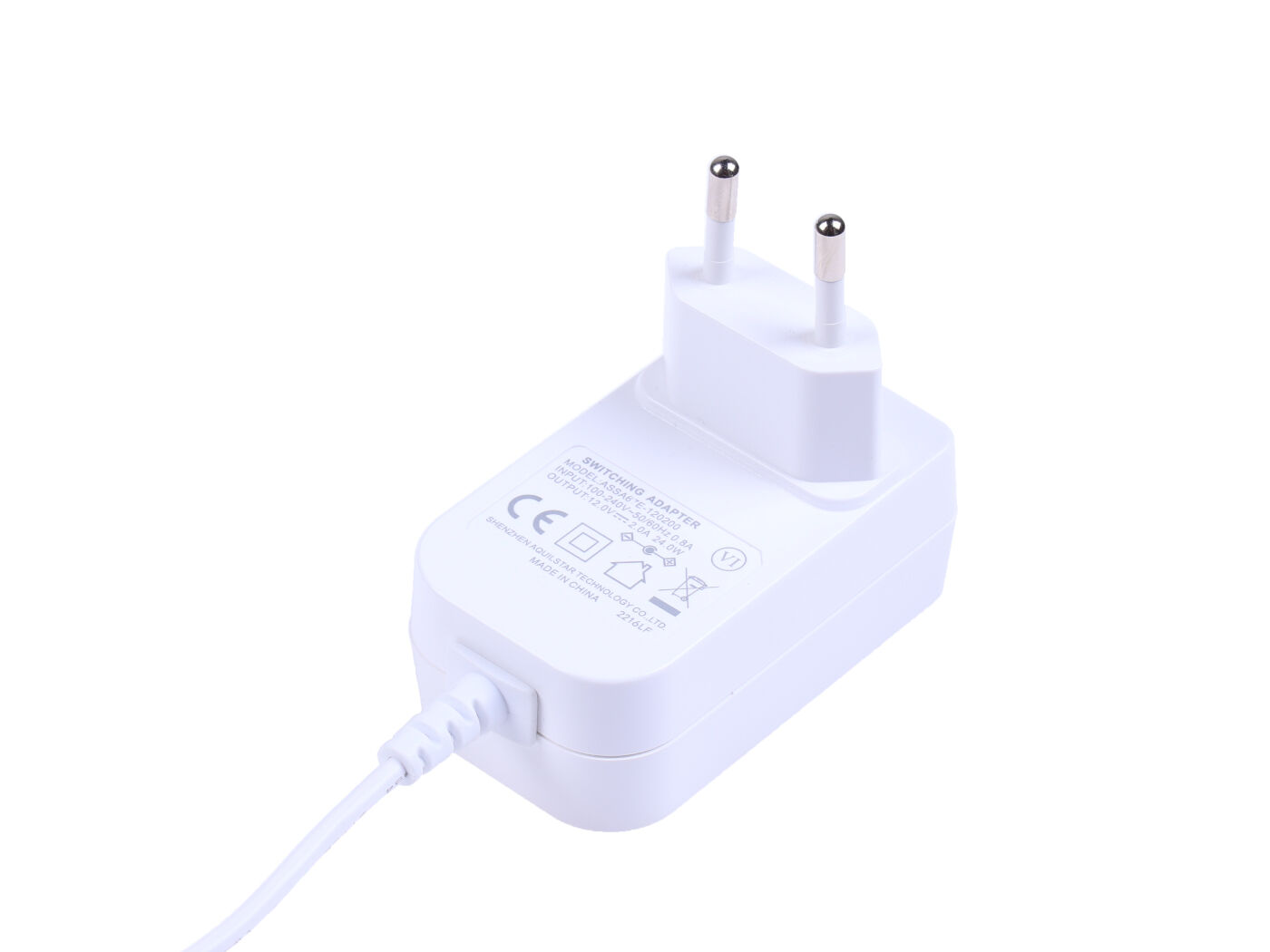

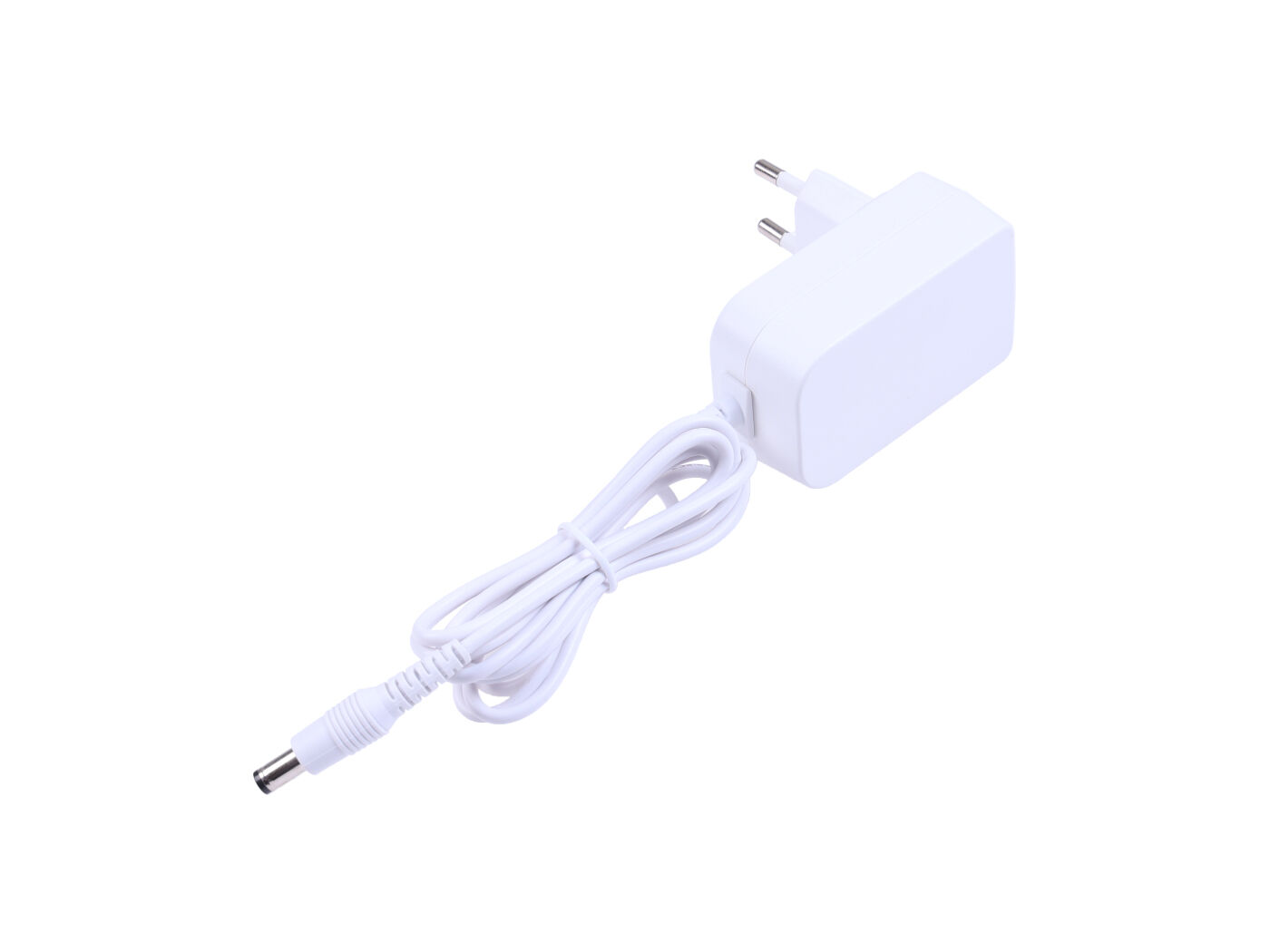

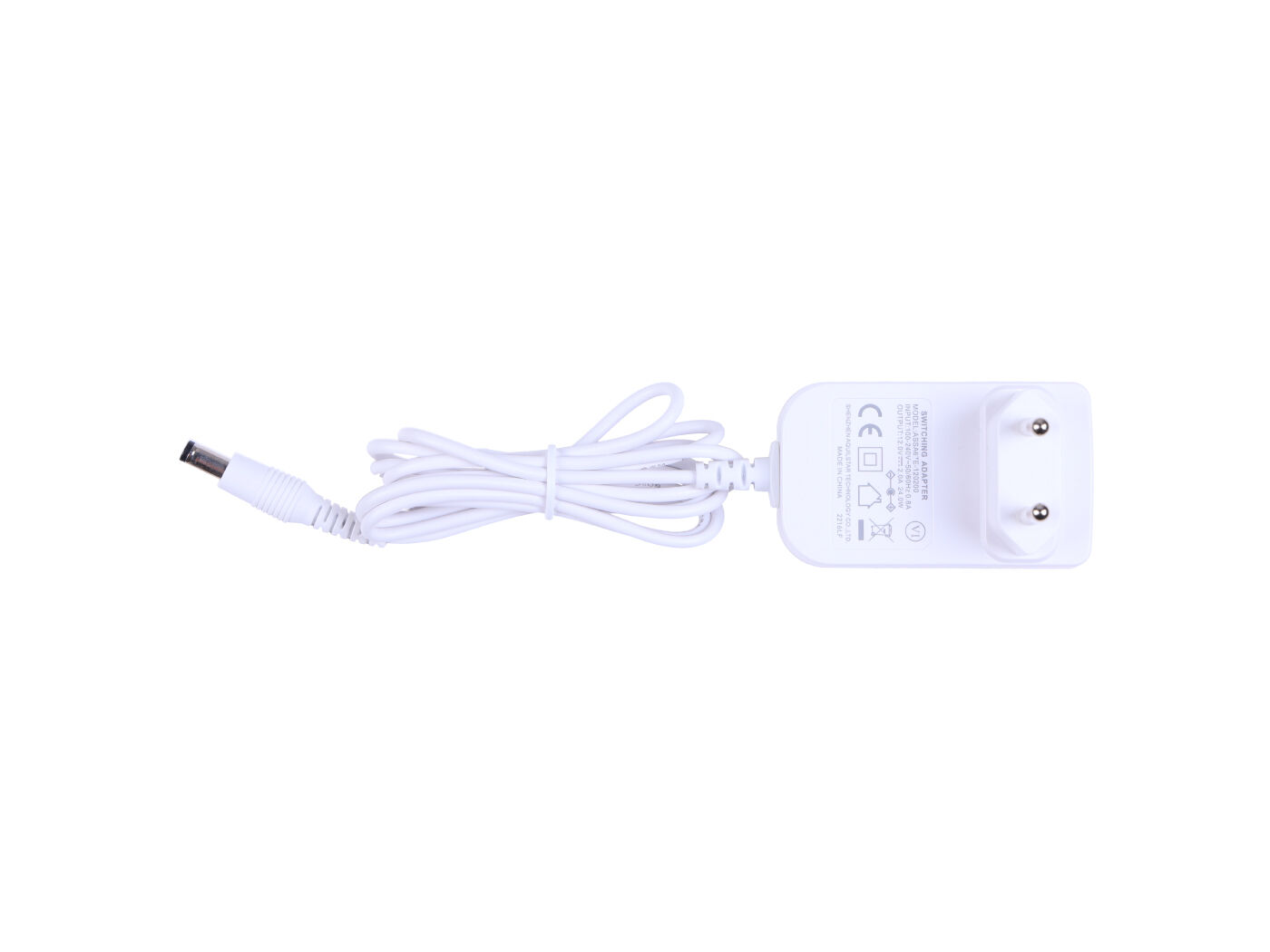

Description
Power Adapter provides stable power output and incorporates safety features such as overload and short circuit protection. Its compact and lightweight design makes it highly portable. With RoHS certification, it adheres to environmental standards. Suitable for a wide range of devices, it offers a dependable power solution that prioritizes safety and efficiency.
Feature
- Stable Power Supply: Maintains a consistent output voltage within a specified range, even when the input voltage fluctuates or there are variations in the load.
- Long Lifetime: Used for a minimum of 30,000 hours.
- High Energy Efficiency: The average conversion efficiency reaches 86.2%.
- Compact Form: The compact size makes it incredibly small and portable.
Description
This power adapter for EU standard boasts a range of impressive features. With a wide input voltage and frequency range, it is suitable for global use. It delivers stable and efficient power, with a full load efficiency of at least 83% and an average efficiency reaching the Energy Star VI standard of 86.20%. The adapter provides reliable protection against overcurrent and short circuits, ensuring the safety of connected devices. With its long service life of at least 30,000 hours, this power adapter is a dependable choice for various applications.
Application
- Personal Electronic Device
- Home Appliances
- Office Equipment
- Industrial Equipment
Specification
|
Item |
Specification |
Min |
Typ |
Max |
|
|
Input Characteristics |
Input Voltage |
Normal Input Voltage |
100Vac |
— |
240Vac |
|
Input Voltage Range |
90Vac |
— |
264Vac |
||
|
Input Frequency |
Input Frequency Range |
47Hz |
50/60Hz |
63Hz |
|
|
Input Current |
All Voltage Range & Output at Full Load |
— |
— |
0.8A |
|
|
Inrush Current |
All Voltage Range & Cold Start at 25℃ |
— |
30A |
60A |
|
|
Output Characteristics |
Output Voltage |
All Voltage Range at No Load |
11.40Vdc |
12Vdc |
12.60Vdc |
|
All Voltage Range at Full Load |
11.40Vdc |
12Vdc |
12.60Vdc |
||
|
Load Current |
All Voltage Range at CC Mode |
— |
2A |
— |
|
|
Ripple and Noise |
Measurement is done by 20MHz bandwidth oscilloscope |
— |
— |
150mV |
|
|
Hold-up Time |
At Full Load & 115Vac/60Hz Input Turn Off at Worst Case |
10ms |
— |
— |
|
|
At Full Load & 230Vac/50Hz Input Turn Off at Worst Case |
20ms |
— |
— |
||
|
Turn-on Delay Time |
At 100Vac to 240Vac Input & Full Load |
— |
— |
3s |
|
|
Energy Efficiency Characteristics |
Standby Power |
At 115Vac and 230Vac input voltage |
— |
— |
0.1W |
|
Average Efficiency |
Normal input & output at 25%, 50%, 75%, 100% load |
86.20% |
— |
— |
|
|
Environmental Characteristics |
Operating Temperature |
Environmental temperature around the product normal work |
-10℃ |
— |
40℃ |
|
Storage Temperature |
Storage temperature product doesn’t work |
-20℃ |
— |
70℃ |
|
|
Operating Humidity |
Environmental humidity around the product normal work |
10% |
— |
90% |
|
|
Storage Humidity |
Storage humidity product doesn’t work |
5% |
— |
95% |
|
|
Item |
Specification |
Acceptance criteria |
|
Hi-pot test |
Primary to Secondary: 4000Vdc / 5mAMax / 60 second (4400Vdc,3second for production) |
No fire, smoke and other safety accidents |
|
Insulation resistance |
Primary to secondary add 500Vdc test voltage |
≥50MΩ |
|
Temperature rise |
25℃ environment, rated voltage and load conditions, the temperature rise test shell surface |
Skin temperature rise is less than 45℃ |
|
Burn-in |
The power supply shall be burn-in for 2 Hours under normal input and 100% rated load at 40℃±5℃ |
The product does not appear abnormal |
|
Lifetime |
Reference standard MIL-HDBK-217F,full load at 25℃ |
30000 Hours min |
|
ESD |
Reference standard IEC61000-4-2 ： Contact discharge:±4KV，Air discharge: ±8KV |
Class A or B |
|
Surge test |
Reference standard IEC61000-4-5 ： common mode(L-PE/N-PE)±2KV, differential mode(L-N) ±1KV |
Class A or B |
|
Audible noise |
Quiet environment 30cm distance to the human ear hearing noise |
Can’t hear the noise |
|
Item |
Specification |
value |
|
Safety, EMC & Environmental Directive Standard |
RoHS |
2011/65/EU (European Union) |
|
CE |
EN 62368-1:2014/A11:2017, EN 55032:2015/A11:202x |
|
|
Mechanical Characteristics |
Dimension |
69.3mm (L) x 41.45mm (W) x 26.7mm (H) |
|
Weight |
110.5g ± 10g |
|
|
AC Plug |
Lead-Free, Wall-Mount Type (European 2 Conductors) |
|
|
DC Output Plug |
5.5mm x 2.1mm x 10±0.3mm |
|
|
DC Output Cable |
Length = 1.5m, UL2725 22# (Certification Numbers: E315619/E341894/E336582/E318424) |
|
|
Material Characteristics |
Case Materials |
PC UL94V-0 |
Part List
|
Power Adapter 12V 2A – EU |
X1 |
