Name: PIR Motion sensor module
SKU: 113990020
Price: 5.9 USD
Availability: OutOfStock

Description

The PIR Motion sensor module is an automatic control module based on infrared technology. It adopts LHI788 probe, which has high sensitivity, high reliability, low voltage working mode and low power consumption. It can be widely used in various types of automatic induction electrical equipment.

The PIR Motion Sensor Series includes several products that will meet your different needs:

Product	Measuring range (theoretical value)	Features
Grove – PIR Motion Sensor	Max Distance:3-6m(3m by default) Angle:< 120°	Measuring distance and holding time adjustable response speed:0.3s – 25s
Grove-Adjustable PIR Motion Sensor	Max Distance:3-6m Angle:X=110° Y=90°	Measuring distance and holding time adjustable
Grove – mini PIR motion sensor	Max Distance:2-5m(2m by default) Angle:X=110° Y=90°	Sensitivity adjustable Mini-size
PIR Motion sensor module	Max Distance:3-7m Angle:< 120°	Sensitivity & Delay time adjustable
Grove – Digital PIR Motion Sensor	Max Distance:3-12m Angle:< 100°	Mini-size Simple and intuitive

Want to know more about how the PIR sensor works with Arduino and Raspberry pi, please click here to view the blog. If you need tutorials for operating the sensor, please click here to view the wiki.

Applications

Switch
Motion sensor
Thief-guarding system
Industrial automation

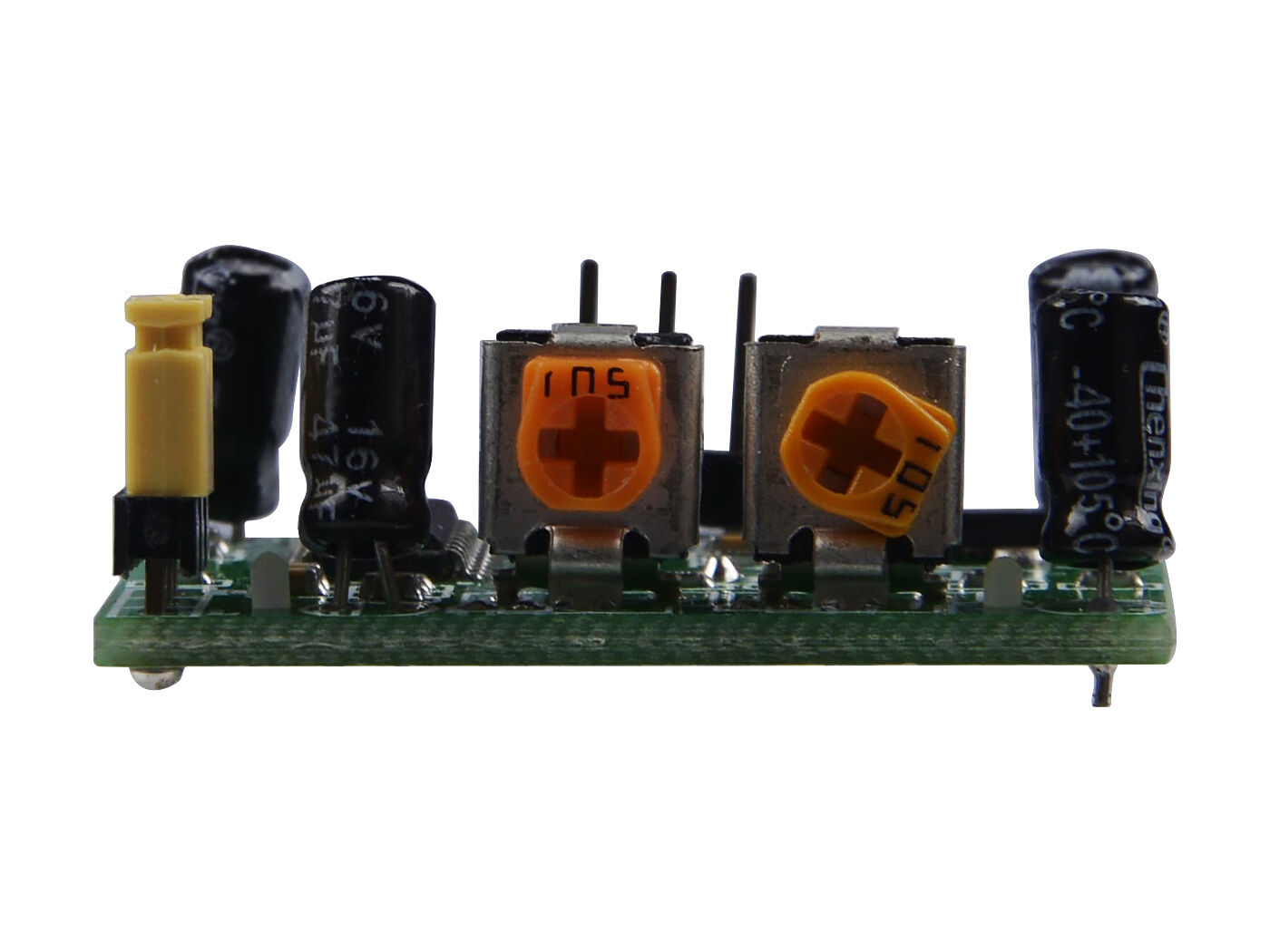

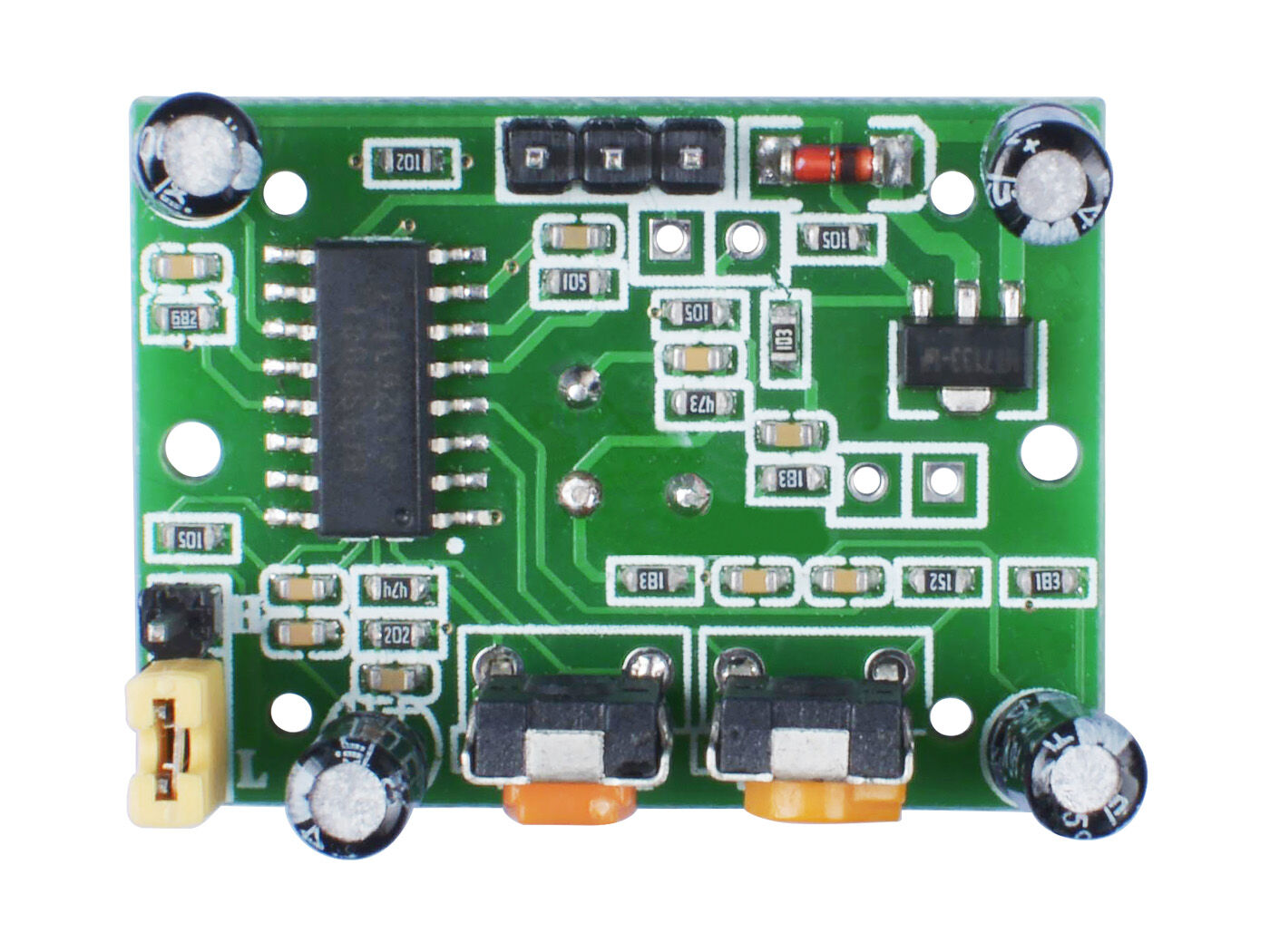

Hardware Overview

Specifications

Item	Value
Input Voltage	DC 4.5V ~ 20V
Static Current	<50uA
Output Signal	0V / 3V (Output high when motion detected)
Sensing Range	7 meters (120 degree cone)
Delay time	8s ~ 200s (adjustable)
Operating Temperature	-15℃ ~ +70℃
Dimensions	24mm32mm25mm(Height with lens)
Weight	6.6g

Additional information

Weight	0,009 kg
