Phoenard Phoenex Breadboard

Description

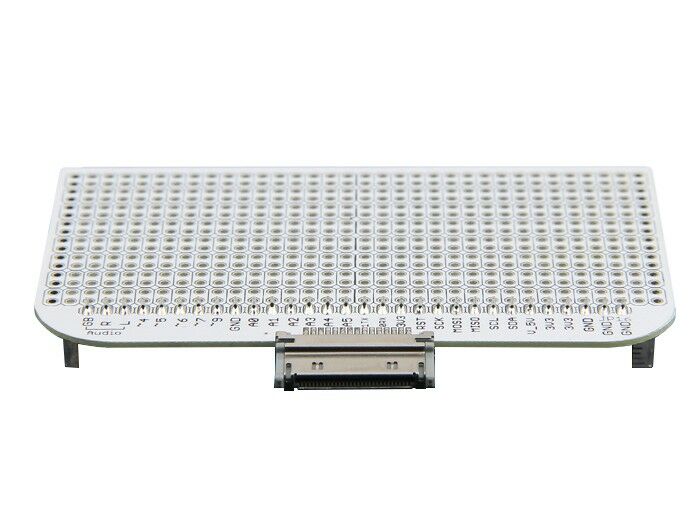

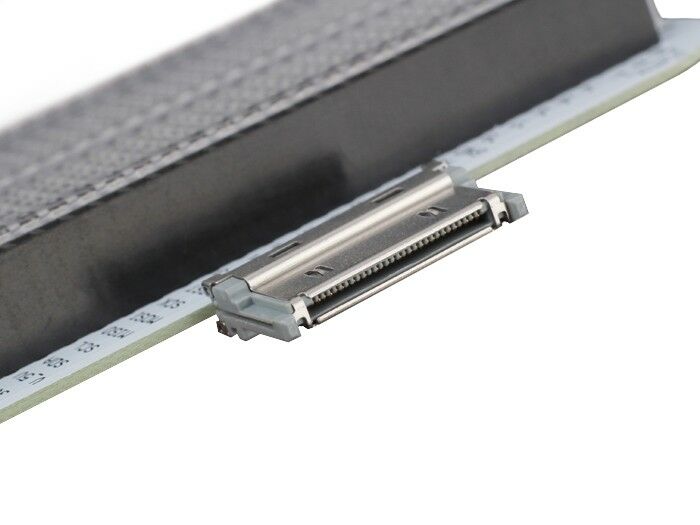

This Phoenard board extension can be docked using the bottom 30-pin connector, breaking out the 30-pin connector. You can then develop your own electronic designs with or using the circuit prototyping breadboard and jumper wires.

If you want one Phoenard, please visit here.

Features

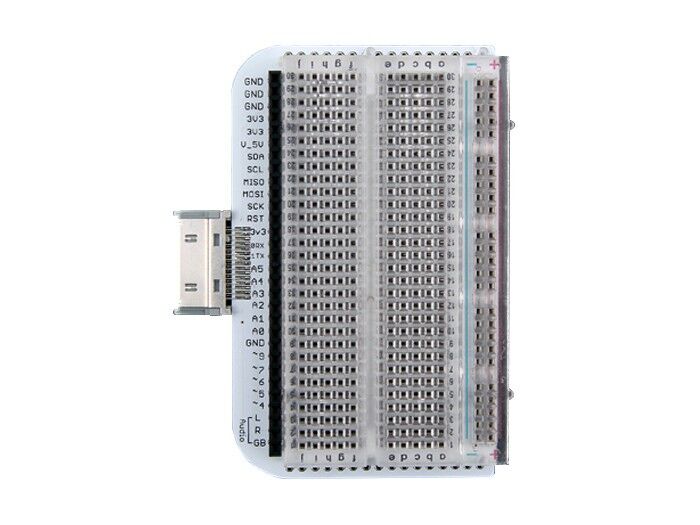

• Breadboard mounted on top of standard Phoenex proto
• Female 2.54 mm headers installed on pin headers

Specification

• Safe operating conditions
  • Temperature: -10 ~ 60 degrees celcius
  • Humidity: 20% – 90%
• Power
  • Main board voltage: 3v3
• Accessible pins
  • Analog: 6 analog pins (A0 – A5)
  • Digital: 5 general purpose I/O; supports PWM (digital pins 4, 5, 6, 7, 9)
  • ISP Interface: 6-pin (MISO/MOSI/SCK/SS/RESET/GND)
  • I2C Interface: SDA/SCL
  • Audio: Left/Right/Audio Gnd
  • Serial Interface: Serial 1 (RX0/TX0)
  • Power: 3v3 (main board), 5v (USB power)

Part List

• 1 x Phoenex Breadboard PCBA

Note

This board uses a 3v3 main board voltage and may not be compatible with all 5v sensors and devices. The 5v power on the extension connector is only present when USB power is provided.

A starters guide together with documentation and software examples is available on our website:

• Getting started
• Software documentation
• Forums
