PhoBot

Description

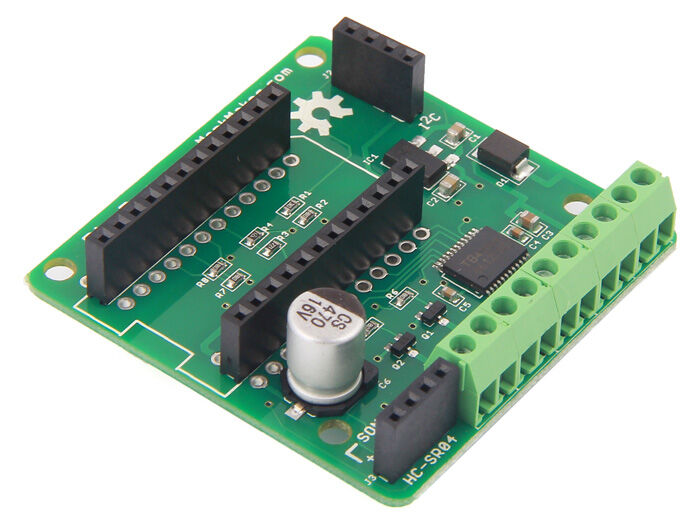

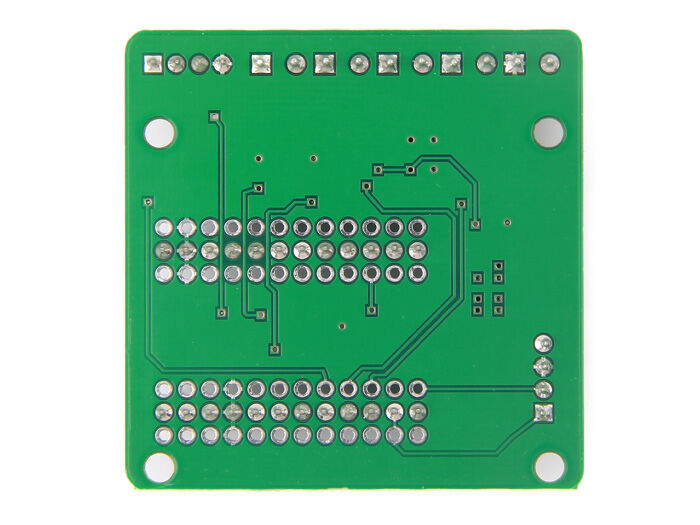

A simple to use motor shield for the Spark Core and Photon. This board is designed to simplify the process of making small roving robots using a Photon or Spark Core. The shield is designed to be used with low cost robot chassis to make simple autonomous robots.

Features

• Dual bi-directional motor control using TB6612FMG dual H-bridge


• Dual open drain 2A MOSFET outputs


• Socket for HC-SRo4


• Socket for 5V I2C Interface


• Provides 5V regulated power to Photon or Core


Specification

• Max. Input voltage: 12V


• Min. Input voltage: 6V


• Max. Current M1 and M2: 2A


• Max. current I2C 5V supply: 80mA


Part List

•
  1 x PhoBot v1.0

The board has an accompanying C library that can be found on GitHub here.

For technical support and suggestions, please visit our forum.
