Particle Photon Base Shield

Description

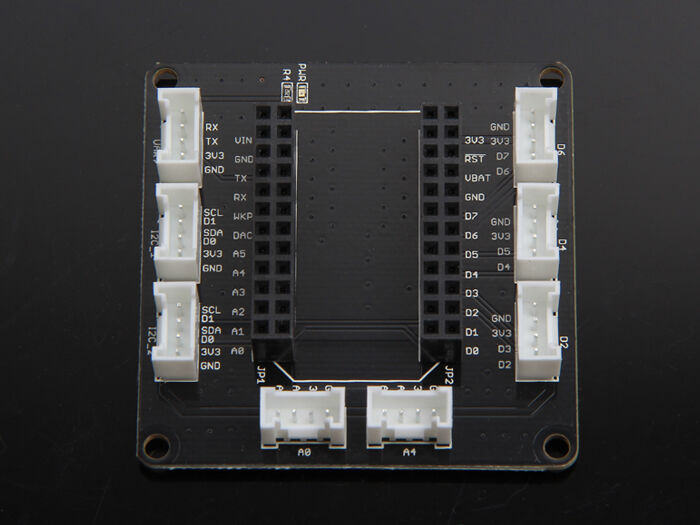

Grove Base Shield for Photon is an expansion board which incorporated the standard Grove interfaces to let you build more powerful and intelligent applications with richer and cost-effective Grove functional modules. It gets three digital ports, two analog ports, two I2C ports and one UART port. It’s a plug-and-play shield designed to accelerate prototyping dramatically.

Attention

This shield can not work with Particle Mesh, only compatible with Particle Photon

Features

• Compatible with Photon

• Standard Grove interfaces to connect to a large family of Grove sensors and actuators

• I2C, UART ports integrated

Specification

• Grove Ports: 3 digital ports, 2 analog ports, 2 I2C ports and 1 UART port.

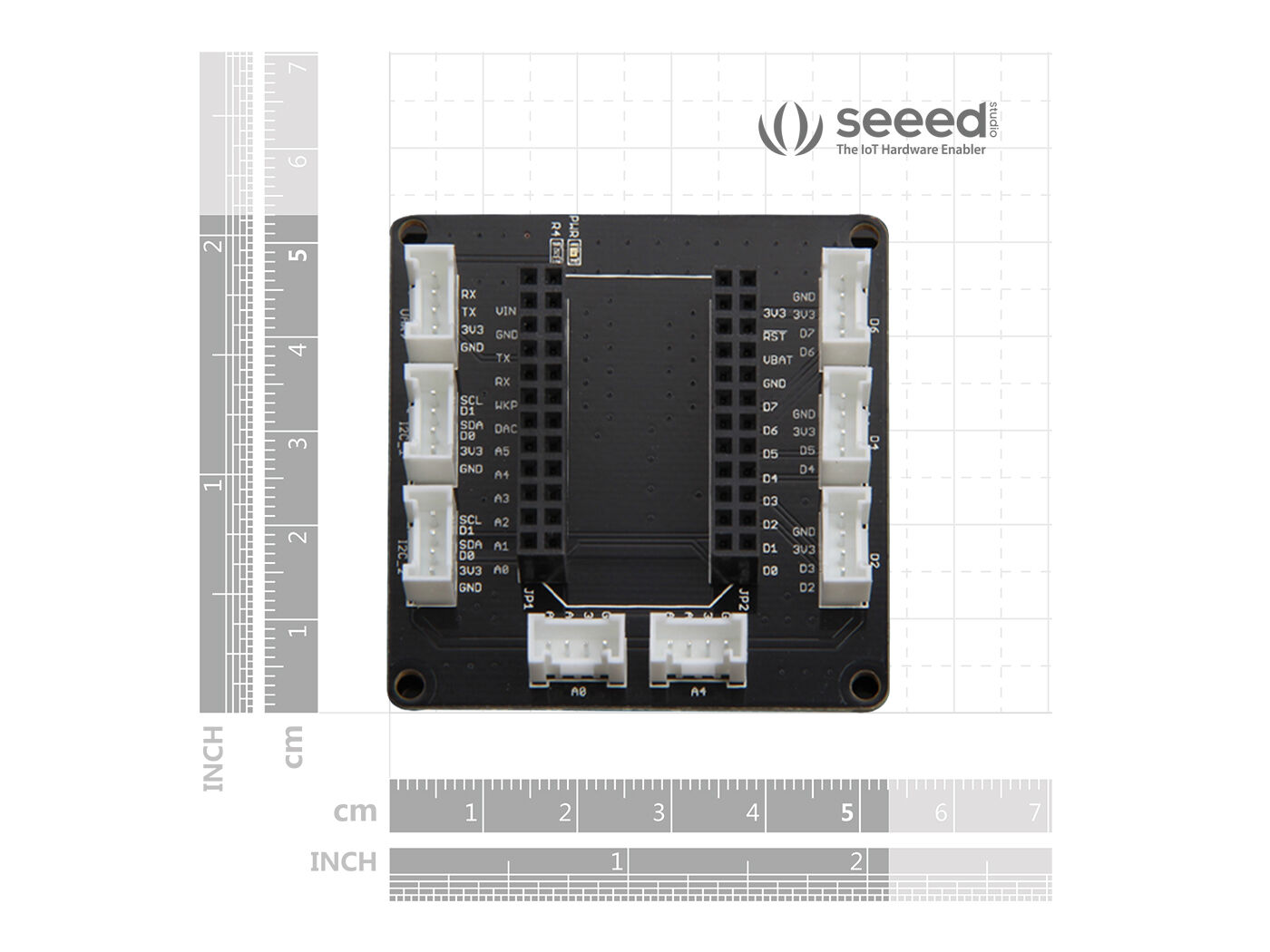

• Dimensions: 53 x 53 mm

• Weight: 18g

Application ideas

• Compact IoT applications such as smart router.
