Oscilloscope extension for DSLogic

Description

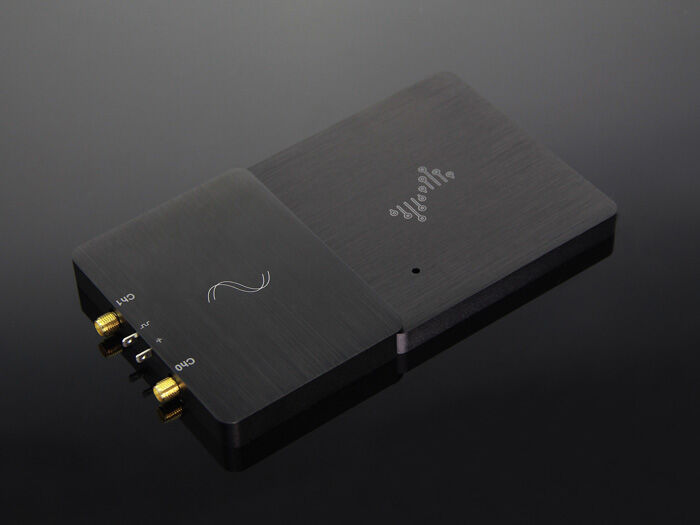

An oscilloscope extension for DSLogic. It will make DSLogic to be a professional usb-based oscilloscope.

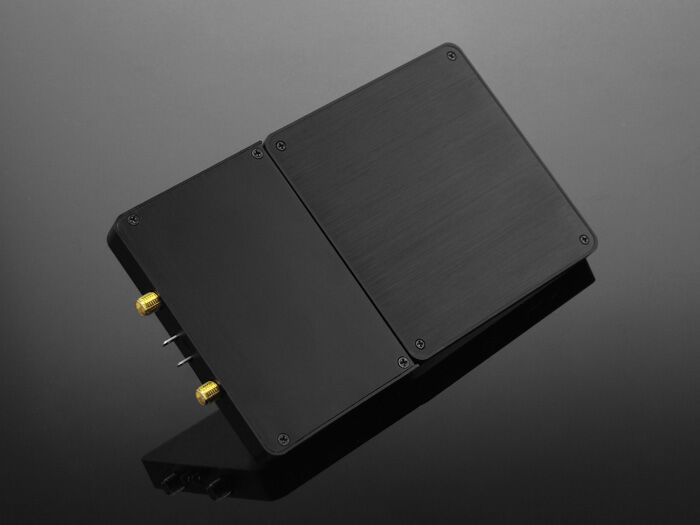

DSLogic is an Open-Source, Low-cost & Extensible electronic instrument for makers and electronic enthusiasts. DSLogic was successfully funded on KICKSTARTER.

•    Open source

•    unibody alumimum shielded case

•    1K square signal output

•     Bandwith: 30MHz

•     Max Sampling Rate: 200MHz @ 1 Channel / 100MHz @ 2 Channels

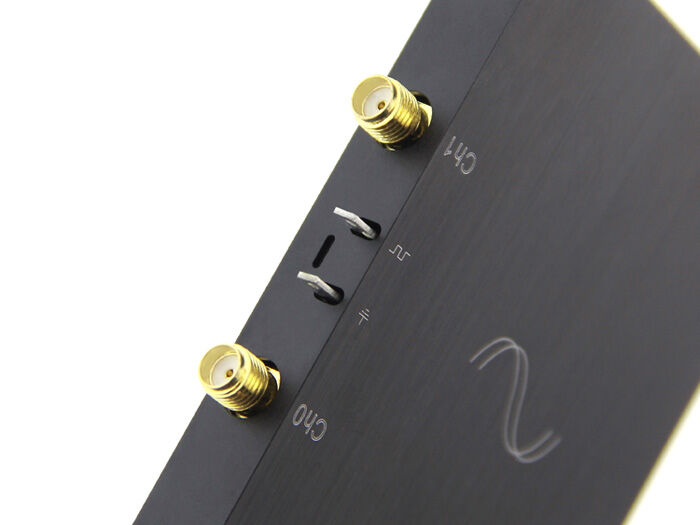

•     Input Channels: 2 Channels

•     Input Range: ±25 mV ~ ±25 V (x1 probe)

•     Input coupling: AC / DC

•     Input characteristics: 1 MΩ ∥ 15 pF

•     Overvoltage protection: ±100 V (DC+AC peak)

Part List:

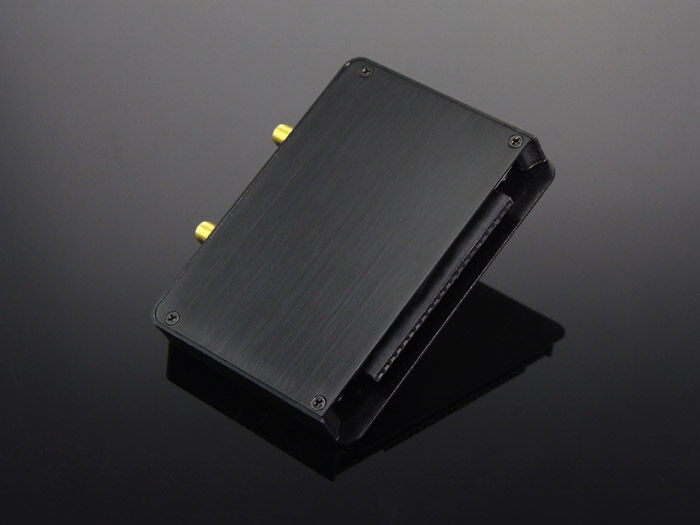

• 1 x Oscilloscope Extension

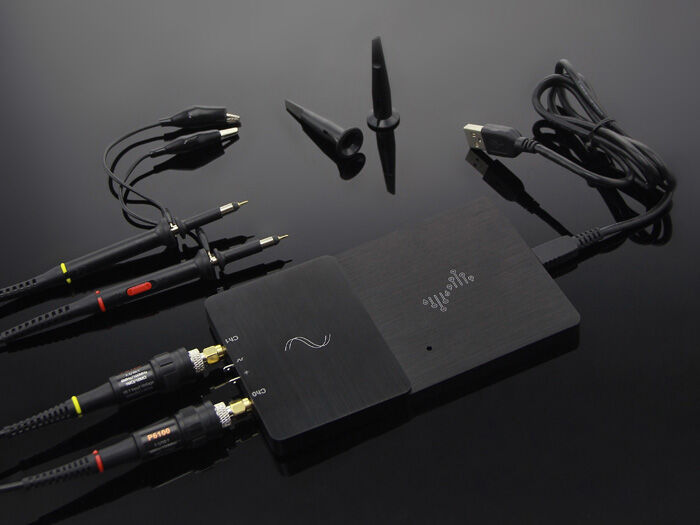

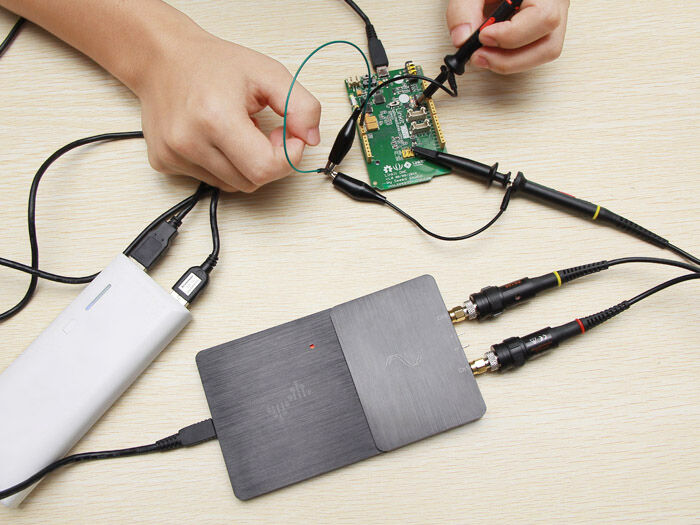

• 2 x P6100 Probes

  website: http://www.dreamsourcelab.com

  wiki:        http://www.dreamsourcelab.com/wiki

  forum    : http://www.dreamsourcelab.com/forum
