Description
Feature
- Most powerful AI computer for edge computing: up to 275 TOPS, 8 times AI performance compared to Jetson AGX Xavier. Power configurable between 15W and 60W.
- Onboard EMMc ready to go: With onboard 64GB eMMC, 204 GB/s of memory bandwidth, and 64 GB of DRAM.
- High-speed interface support for multiple sensors: 22 lanes of PCIe Gen4, 1x 10GbE, a Display Port, 16 lanes of MIPI CSI-2, USB 3.2 interfaces, and a 40-pin header.
- Support Jetpack 6.0: based on Linux 36.2 provides the Linux Kernel 5.15, UEFI based bootloader, Ubuntu 22.04 based root file system, NVIDIA drivers, necessary firmwares, toolchain and more.
Note
The Jetson AGX Orin Developer Kit has been upgraded with 64GB of memory. The performance is the same as the original 32GB Jetson AGX Orin Developer Kit, except for the memory.
Specification
- Jetson AGX Orin Module System on Module
|
AI Perfromance |
Jetson AGX Orin 64GB – 275 TOPS |
|
GPU |
NVIDIA Ampere architecture with 2048 NVIDIA® CUDA®cores and 64 Tensor cores |
|
CPU |
12-core Arm Cortex-A78AE v8.2 64-bit CPU 3MB L2 + 6MB L3 |
|
DL Accelerator |
2x NVDLA v2.0 |
|
Vision Accelerator |
PVA v2.0 |
|
Memory |
32GB 256-bit LPDDR5 204.8GB/s |
|
Storage |
64GB eMMC 5.1 |
|
Video Encode |
2x 4K60 | 4x 4K30 | 8x 1080p60 | 16x 1080p30 (H.265) |
|
Video Decode |
1x 8K30 | 3x 4K60 | 6x 4K30 | 12x 1080p60 | 24x 1080p30 (H.265) |
|
Power |
15W-60W |

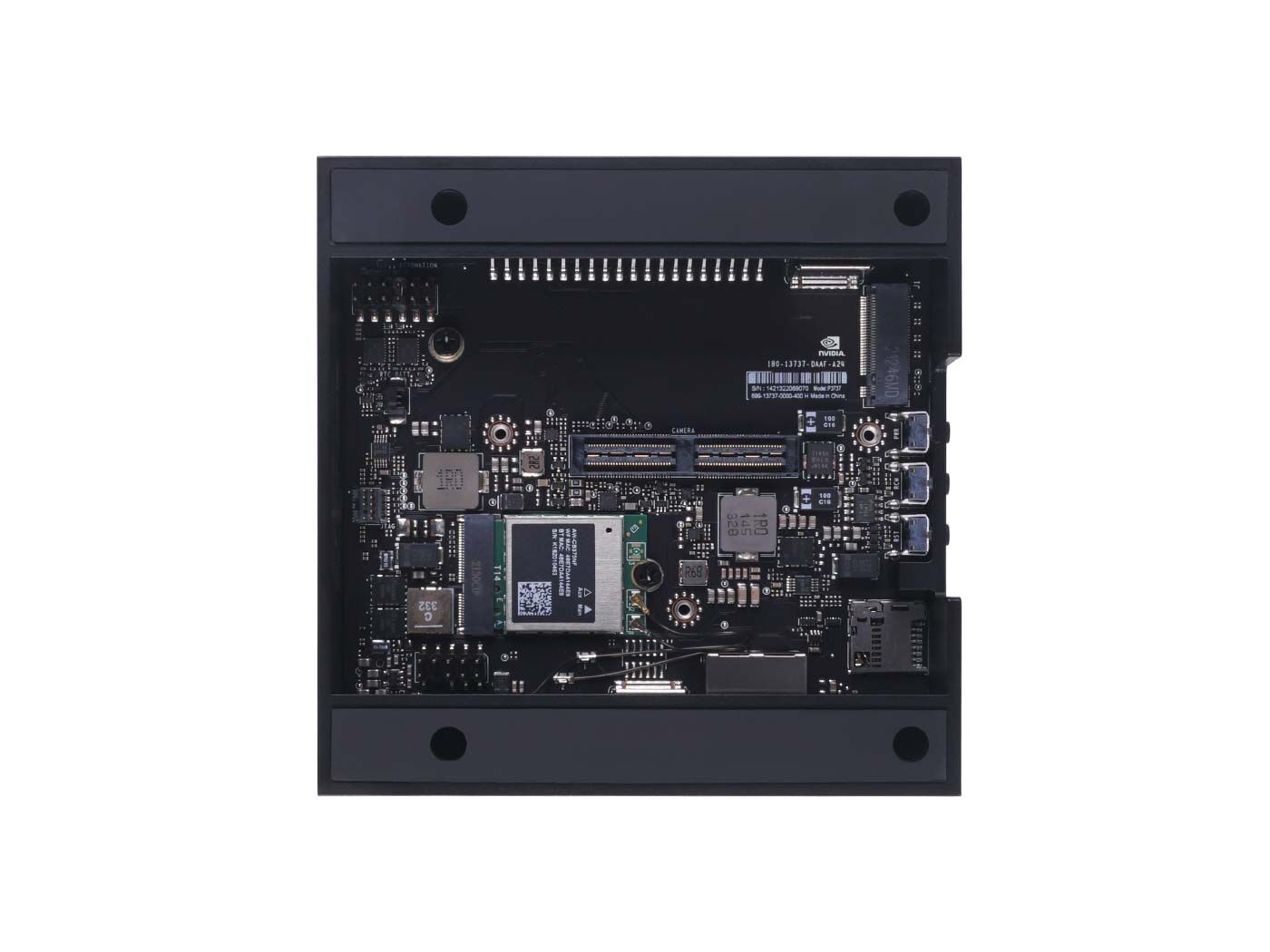

- Carrier Board
|
Storage |
1x M.2 Key M – 4 x PCIe Gen 4 (SSD module not included) |
|
|
Network |
Ethernet |
1x RJ45 – Up to 10GbE |
|
M.2 KEY E |
1x PCIe Gen 4, USB 2.0, UART, I2S (Wireless module included) |
|
|
I/O |
USB |
2x USB 3.2 Gen2 Type-C 2x USB 3.2 Gen2 Type-A 2x USB 3.2 Gen1 Type-A USB 2.0 Micro-B |
|
Camera |
16 lane MIPI CSI-2 connector |
|
|
Display |
DisplayPort 1.4a (+MST) |
|
|
Fan |
1x 4-pin Fan header |
|
|
PCIe |
16x PCIe slot supporting: 8x PCIe Gen4 |
|
|
RTC |
2-pin RTC battery backup connector |
|
|
microSD slot |
UHS-1 cards up to SDR104 mode |
|
|
Other |
40-pin header (I2C, GPIO, SPI, CAN, I2S, UART, DMIC) 12-pin automation header 10-pin audio panel header 10-pin JTAG header DC power jack Power, Force Recovery, and Reset buttons |
|
|
Power |
12-36V |
|
|
Dimension |

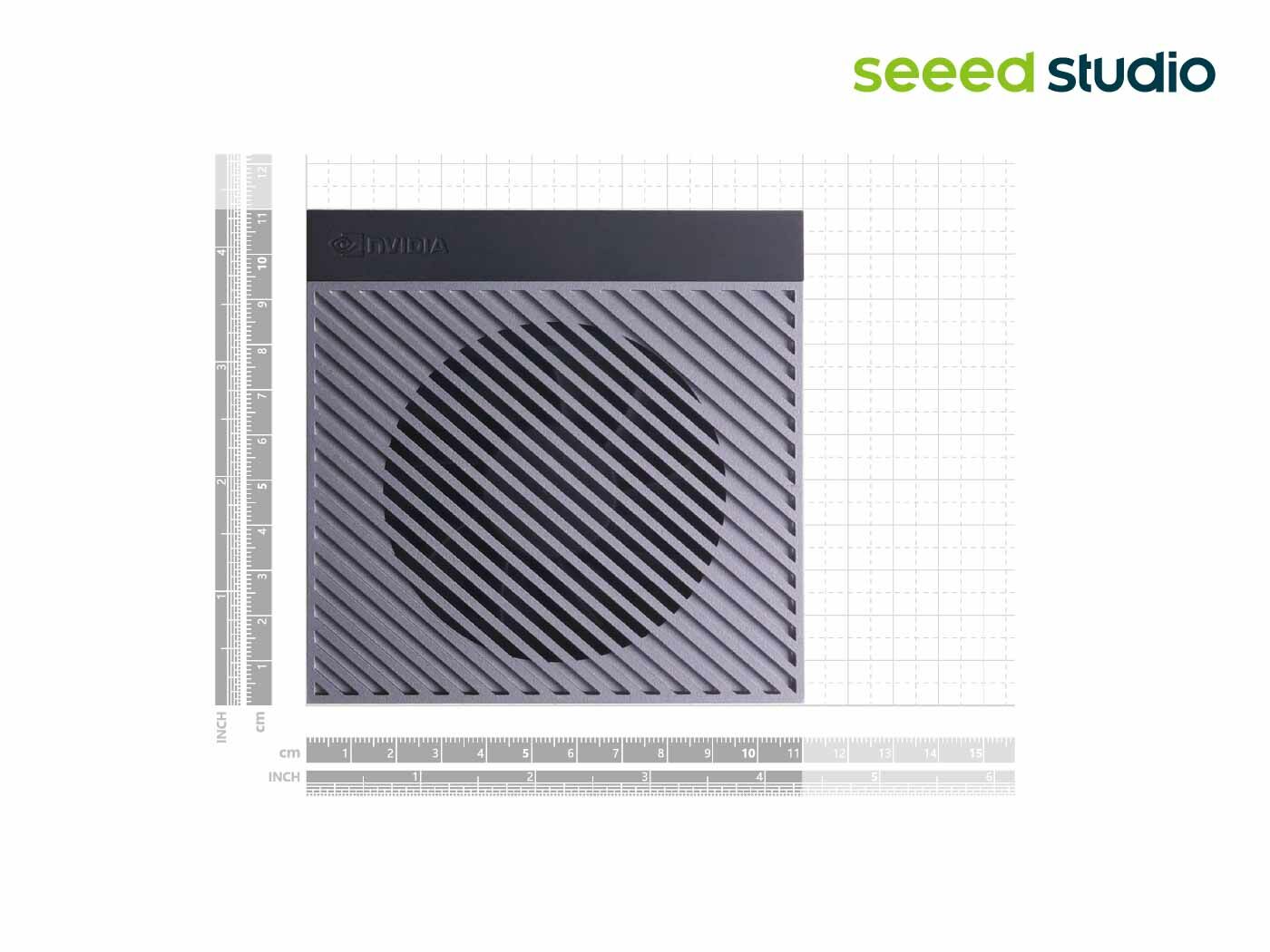

110mm x 110mm x 71.65mm (Height includes feet, carrier board, module, and thermal solution) |
|
Application
Application Fields:
AI Video Analytics
Machine Vision
Autonomous Mobile Robot (AMR)
Generative AI
● Capable of Bringing Generatie AI to the Edge
Now you can build AI agents capable of processing large amounts of live or archived videos and images with Vision-Language Models (VLM) such as LLaVA, this new AI agents help nearly every industry summarize, search, and extract actionable insights from video using natural language.
● Build Multi-streams AI Video Analytics
For building video analytics, Jetson Orin Nano incorporates the NVIDIA Multi-Standard Video Decoder. This video decoder accelerates video decode, supporting low resolution mobile content, Standard Definition (SD), High Definition (HD) and UltraHD (8K, 4K, etc.) reComputer J3011 can take 13x1080p30 streams. See our tested YOLOv8 performance using NVIDIA Deepstream of single model and multi model on multi streams.
● Fastest Way to Deploy Generative AI and Computer Vision Models
We have jetson-example prepared for you! It offers one-line deploy projects edge AI applications of generative AI including Ollama, Llama3; computer vision including YOLOv8; and others. We have configured all environment for you to provides single command deployment of projects.
