Description
Feature
- Excellent AI Performance for production: low power and low latency with up to 67 TOPS AI performance, featuring an Ampere architecture GPU and a 6-core ARM CPU, which enables multiple concurrent AI application pipelines and high-performance inference.

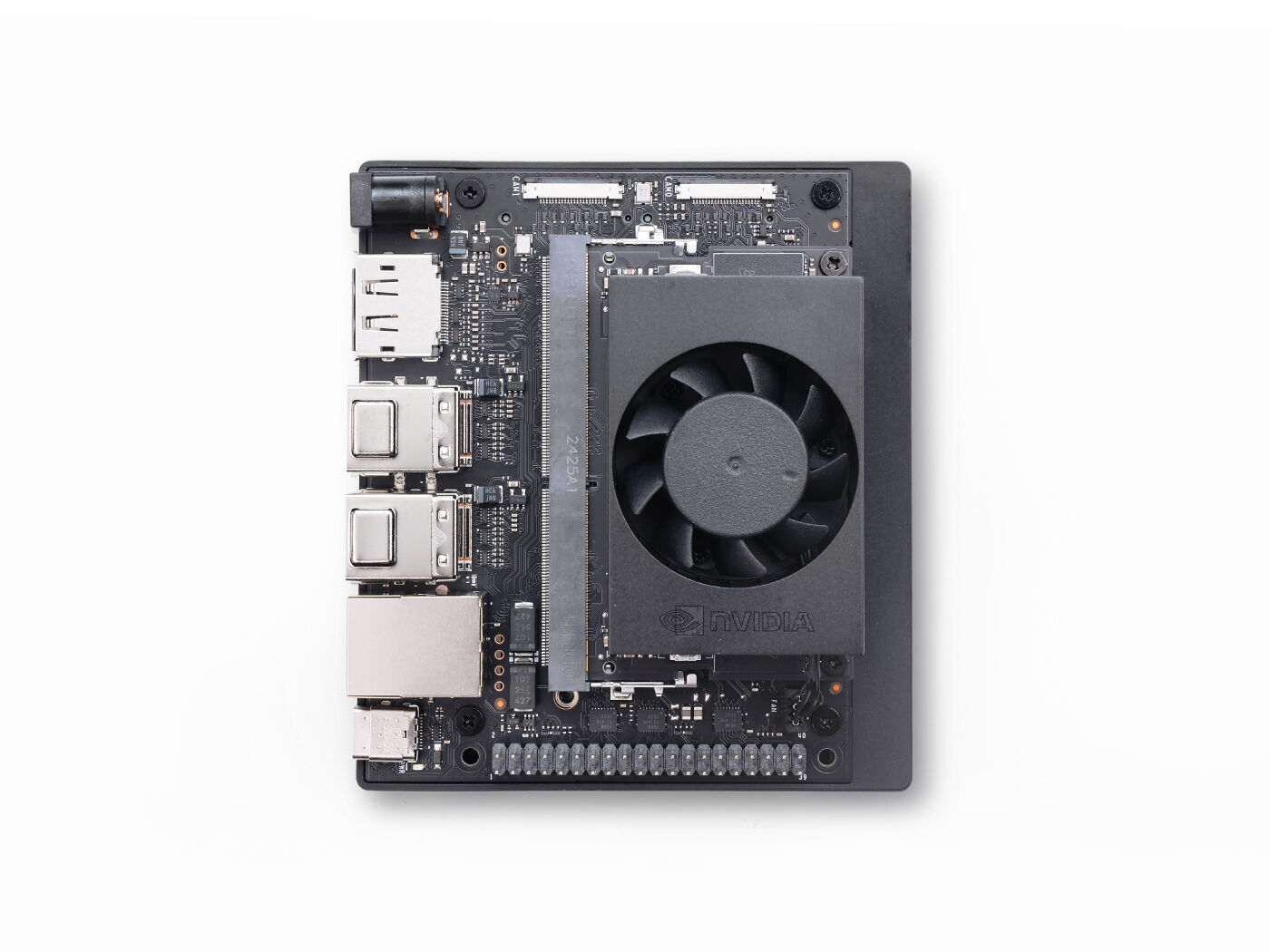

- Hand-size edge AI device: compact size at 100mm x79mm x 21mm, includes Jetson Orin™ Nano 8GB module, a heatsink with a fan and a power adapter.

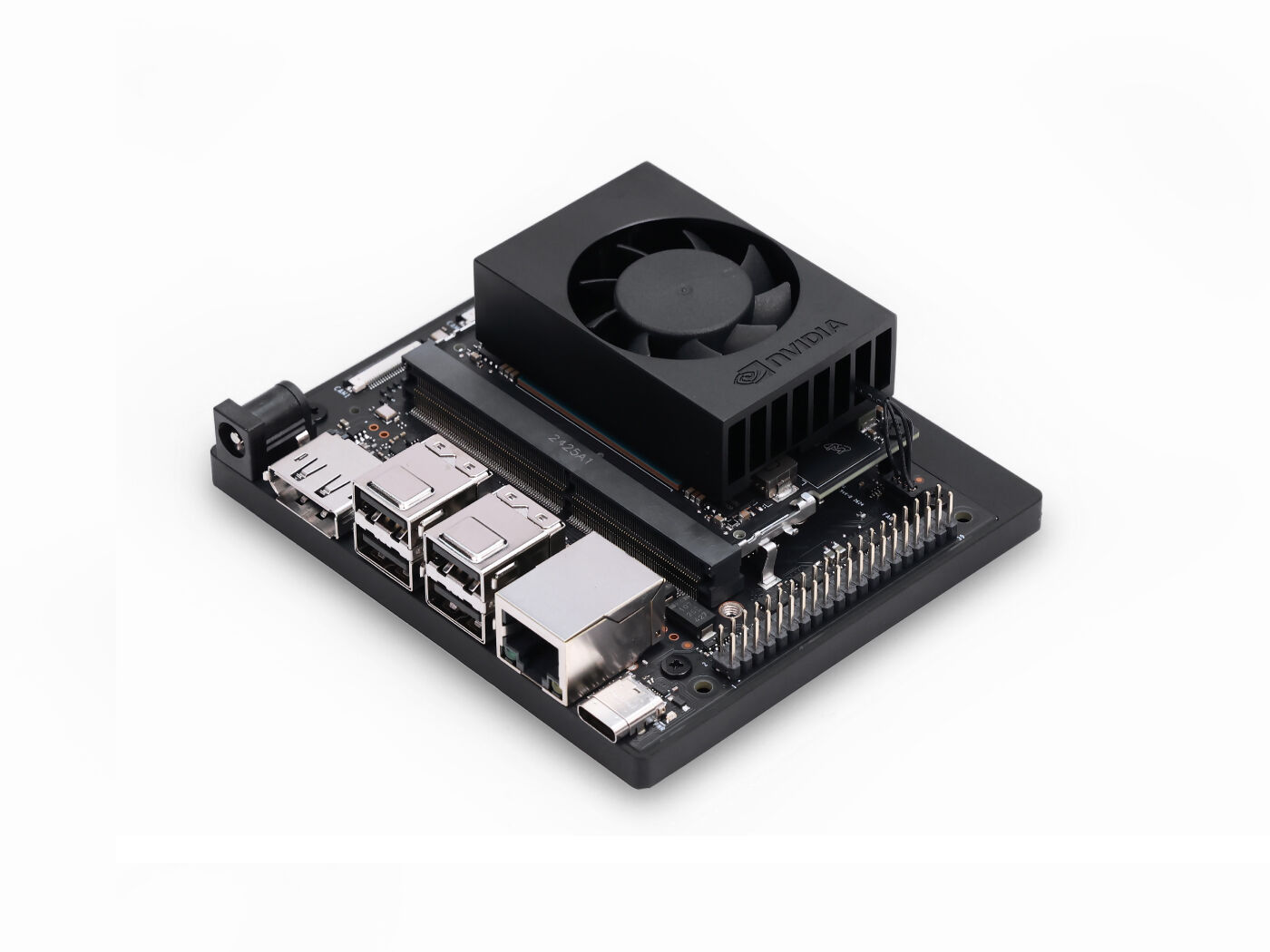

- Expandable with rich I/Os: 4x USB 3.2 Gen 2 ports, DP 1.2, M.2 key E with pre-installed Wi-Fi module, 2x M.2 Key M for SSD, microSD slot, 2x MIPI CSI-2 connectors, Gigabit Ethernet, 40-pin GPIO.
Note
- Kindly noted that NVIDIA Jetson Orin Nano Developer Kit is a great choice to get started with your Vision AI or Generative AI projects. However, if you plan to deploy it in the field, we would recommand you choose reComputer J3011, powered by the same NVIDIA Jetson Orin Nano 8GB production module with pre-installed Jetpack 5.1 on the included 128GB SSD, as the ready-to-use edge AI computer.
- Existing Jetson Nano Orin Developer Kit users can experience this performance boost with just a software upgrade, so everyone can now unlock new possibilities with generative AI. Please use this link to download the latest software for the Jetson Orin Nano Super developer kit.
Specification
|
Jetson Orin Nano System on Module |
||
|
AI Performance |
Jetson Orin Nano 8GB with SD card slot on module – 67 TOPS |
|
|
GPU |
NVIDIA Ampere architecture with 1024 NVIDIA® CUDA® cores and 32 Tensor cores |
|
|
CPU |
6-core Arm® Cortex®-A78AE v8.2 64-bit CPU 1.5MB L2 + 4MB L3 |
|
|
Memory |
8GB 128-bit LPDDR5 102 GB/s |
|
|
Video Encoder |
1080p30 supported by 1-2 CPU cores |
|
|
Video Decoder |
1x 4K60 (H.265) | 2x 4K30 (H.265) | 5x 1080p60 (H.265) | 11x 1080p30 (H.265) |
|
|
Carrier Board |
||
|
Storage |
1x microSD slot (UHS-1 cards up to SDR104 mode) |
|
|
Networking |
Ethernet |
1x Gigabit Ethernet (10/100/1000M) |
|
M.2 KEY E |
1x M.2 Key E(pre-installed 1x Wi-Fi/Bluetooth combo module); PCIe (x1), USB 2.0, UART, I2S, and I2C |
|
|
I/O |
USB |
4x Type A USB 3.2 Gen2 1x Type C for UFP |
|
CSI Camera |
2x MIPI CSI-2 (22pin) |
|
|
Display |
1x DP 1.2 (+MST) connector |
|
|
Fan |
1x 4 pin Fan Connector (5V PWM) |
|
|
CAN |
1x CAN |
|
|
Multifunctional Port |
1x 40-Pin Expansion header 1x 12-Pin Control and UART header |
|
|
RTC |
RTC 2-pin, supports CR1220 but not included |
|
|
Power Supply |
9V-19V DC |
|
|
Mechanical (W x D x H) |
100mm x 79mm x 21mm |
|
|
Product Weight |
0.176 kg |
|
|
Warranty |
1-year warranty for development use only |
|
Application Fields:
- AI Video Analytics
- Machine Vision
- Autonomous Mobile Robot (AMR)
- Generative AI

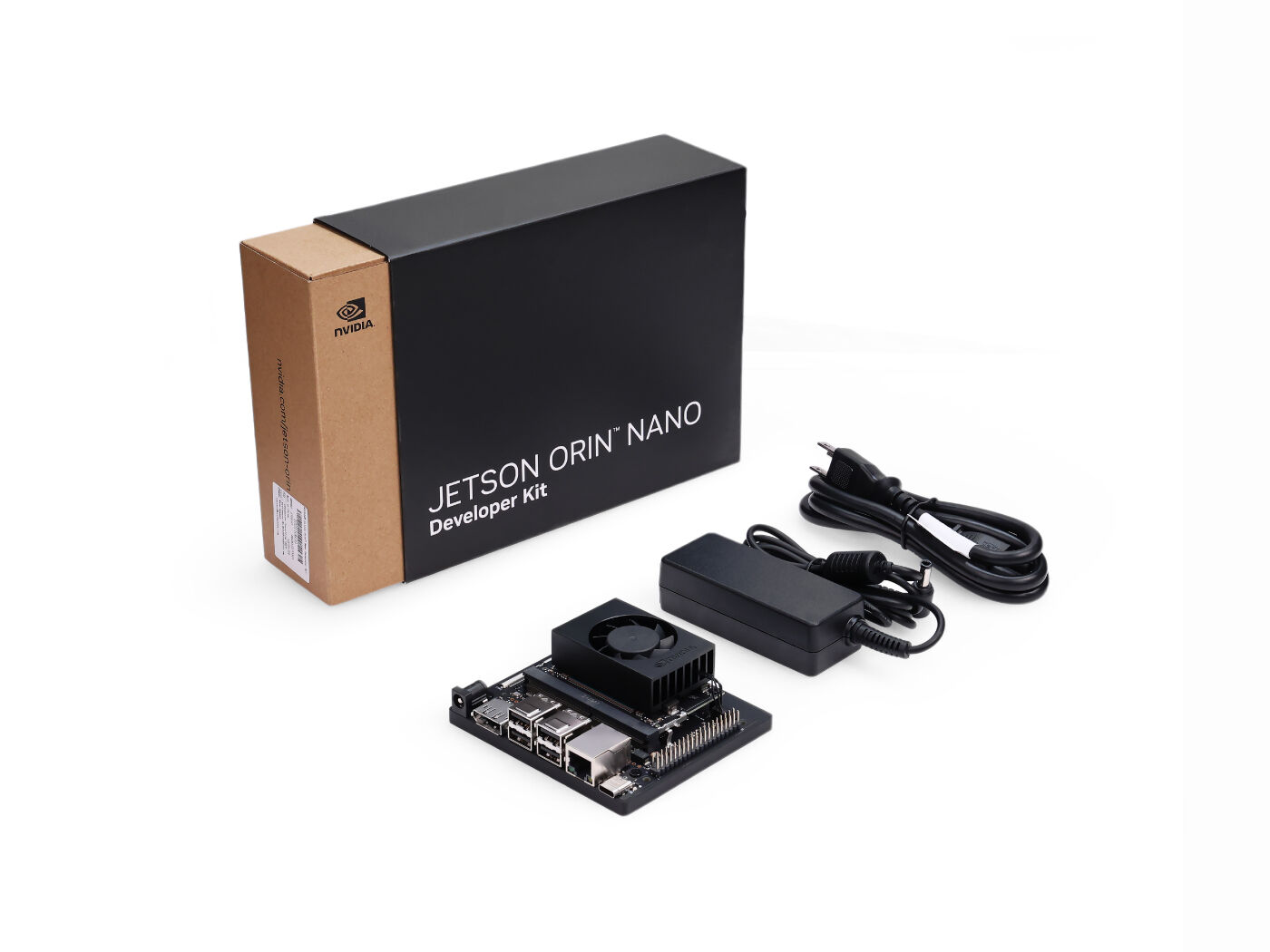

Part list
|
NVIDIA Jetson Orin™ Nano Super Developer Kit |
x1 |
|
19V Power Adapter |
x1 |
|
Type B (US, JP, CA, PH) Power Cable |
x1 |
|
Type I (CN) Power Cable |
x1 |
|
UPC Label |
x1 |
|
Quick Start and Support Guide |
x1 |
