Description

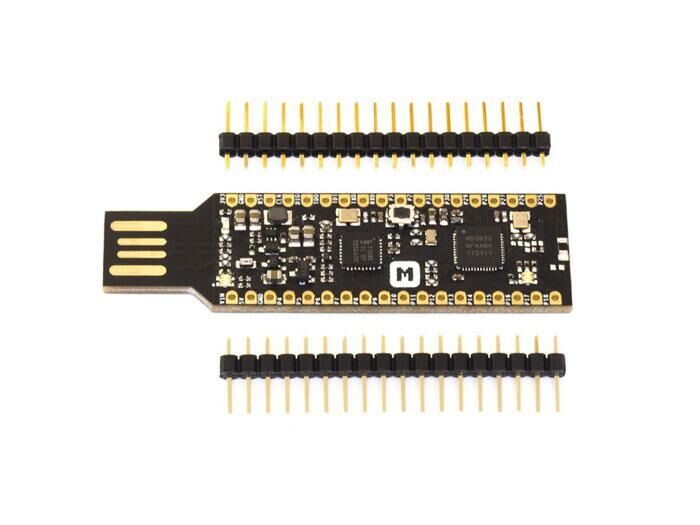

The nRF52832-MDK V2 is a fully open-source, plug-and-play, versatile single board development kit for Bluetooth® low energy, ANT and 2.4GHz proprietary applications using the nRF52832 SoC.
The kit gives access to 24 I/Os and interfaces via headers and has a RGB LED which is user-programmable. It also has a 2.4GHz chip antenna onboard which is quite convenient to develop IoT wireless applications.
It supports the Nordic offical SDK using GCC, Keil and IAR. Program/Debug options on the kit is DAPLink.
The nRF52832-MDK V2 can also be used to play with multi-frameworks such as: nRF5 SDK, nRF5 SDK for Mesh, Mbed OS 5, Zephyr, Mynewt, JerryScript, Espruino, MicroPython, Web Bluetooth, Eddystone, etc.
Hardware Specification
nRF52832-MDK V2 provides the following hardware features:
-
Nordic Semiconductor nRF52832
-
ARM® Cortex™-M4F
-
512kB Flash Memory + 64kB RAM
-
Bluetooth low energy, ANT and 2.4GHz
-
NFC™-A tag
-
Program/Debug options with DAPLink
-
MSC – drag-n-drop programming flash memory
-
CDC – virtual com port for log, trace and terminal emulation
-
HID – CMSIS-DAP compliant debug channel
-
Up to 24 GPIOs at headers
-
Reset Button
-
RGB LED
-
2.4GHz chip antenna
-
3.3V regulator with 1A peak current output
-
VBUS & VIN Power-Path Management
-
Breadboard-friendly
-
63mm x 18mm x 4mm without headers soldered in
DAPLink Integrated
Arm Mbed DAPLink is an open-source software project that enables programming and debugging application software on running on Arm Cortex CPUs. Commonly referred to as interface firmware, DAPLink runs on a secondary MCU that is attached to the SWD port of the application MCU. Enumerating as a USB composite device, it creates a bridge between your development computer and the CPU debug access port. DAPLink enables developers with:
-
MSC – drag-n-drop programming flash memory
-
CDC – virtual com port for log, trace and terminal emulation
-
HID – CMSIS-DAP compliant debug channel

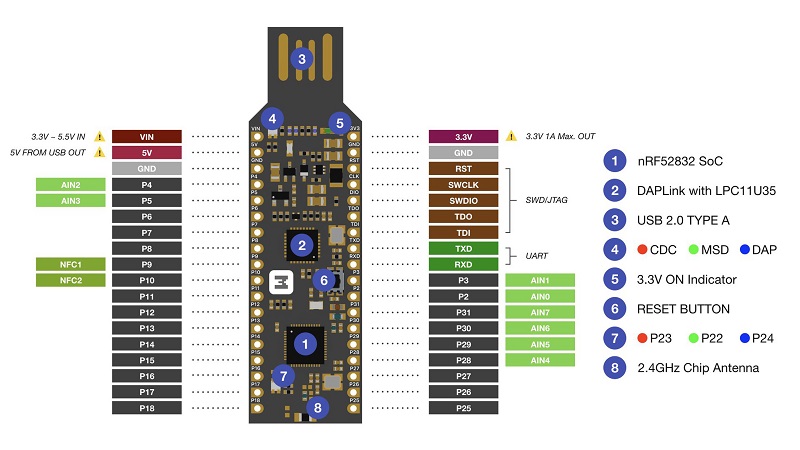

Pinout Diagram
