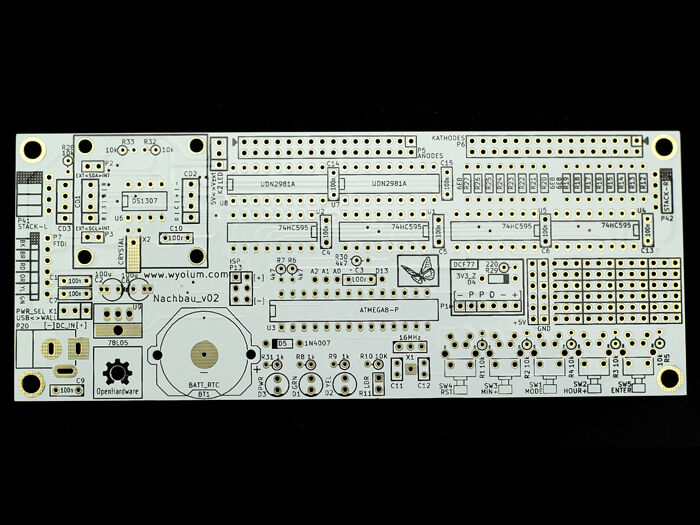

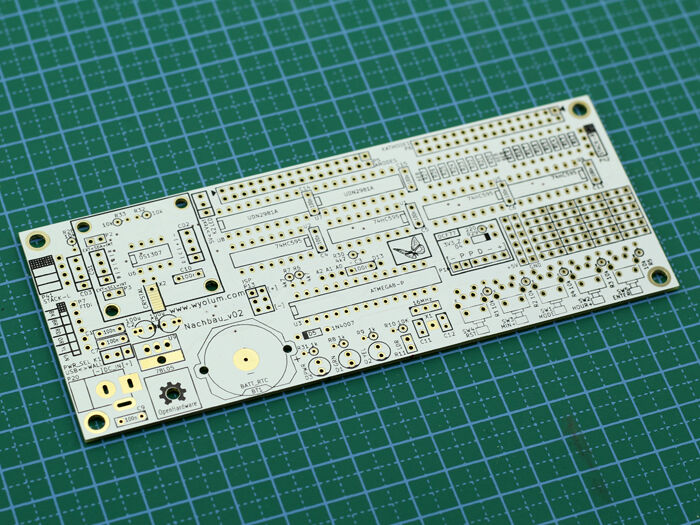

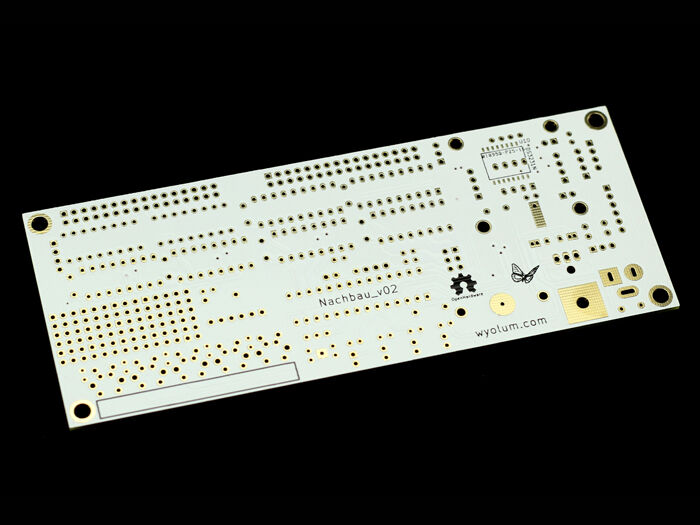

Nachbau bare board

Description

This Nachbau(“replica” in German) is an LED matrix display driver capable of driving up to 16×16 LED matrix display(i.e. 256 LEDs).  We offer a DIY kit that contains all materials you will need to build up one unit Nachbau. But if you wanna put it further and spice up the challenge by sourcing the components yourself, we have this bare board for you!

We contain a detailed bill of materials in this page. You can follow it and get all components you need. After that, you can follow the assembly instructions either in English or German.

Note:This Nachbau Bare Board is version 2, and not compatible with Nachbau v3 Kit.

Features

• Bare board, more freedom to customize

• Components sourcing challenge

• Chainable LED matrix driver board

Resources

• Bill of materials

• NACHBAU Assembly Instructions

• NACHBAU-Bauanleitung
