Multi Chassis-4WD Robot Kit (ATV version)

Description

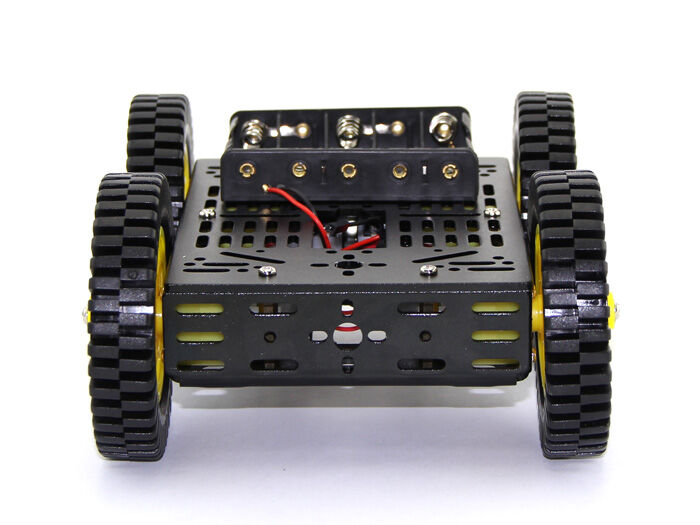

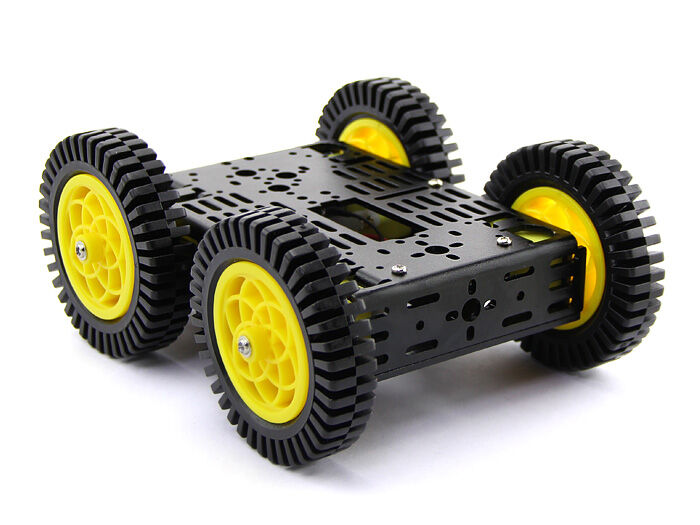

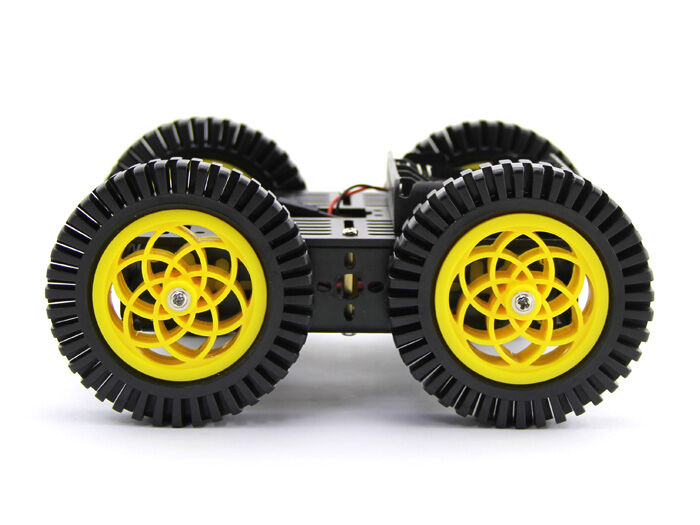

Robot Multi Chassis 4WD kit build with full metal frame and special texture wheel. Benefit by the metal frame and the special wheel, this robot is good for heavy loading, and easy to run on sand, lawn or something else like that.

Features

• Strong and durable Aluminum alloy chassis

• Full metal frame

• Special texture wheel

Specifications

• Size: 178*145*78cm (length*width*height)

• Wheel diameter: Φ78MM

• High-quality ATV wheel (rubber wheel): 4pcs

• DG01D motor 48: 1 ratio gear: 4pcs(Metal output shaft)

• Net weight: 580g

• 5x AAA battery holder

• Supply voltage: 6v-9v

• Nominal current: 800mA

• Stall current: 2800mA

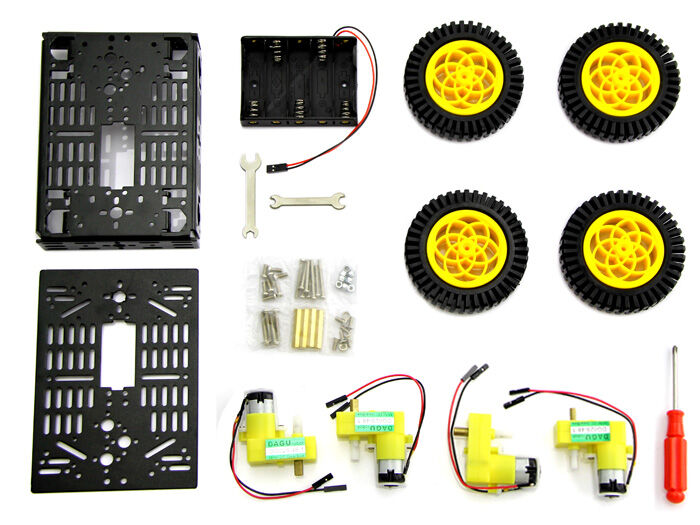

Part List

• 1 x Aluminum chassis top

• 1 x Aluminum chassis bottom

• 4 x DC motor

• 4 x Racing wheel

• 4 x Distance holder M3*25

• 6 x M3*8 flat-head screw

• 4 x M2.5*20 screw

• 4 x M2.5*25 screw

• 4 x M3*22 screw with flange

• 8 x M3*8 screw

• 8 x M2.5 nylon nut

• 2 x M3 nut

• 1 x 5*AA battery holder

• 1 x Spanner (M2.5 & M4)

• 1 x Spanner (M2 & M3)

• 1 x Screw driver

Documents

• Multi Chassis-4WD kit (ATV version) Instruction manual
