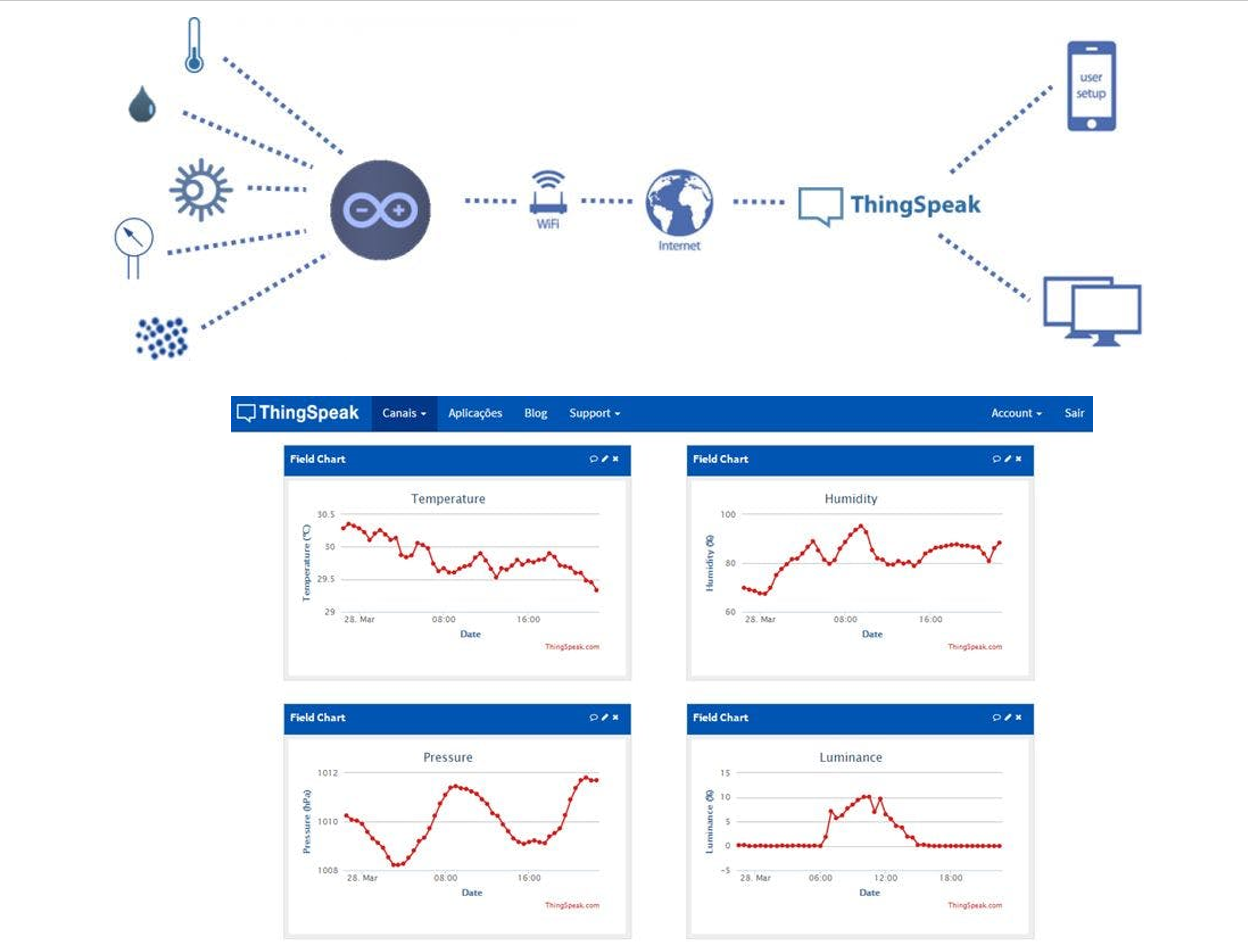

Igor Fonseca Albuquerque provided us with a tutorial on how to create a simple Arduino-based mini weather station with Wi-Fi connection. And the mini weather station can use ThingSpeak platform to publish data publicly.

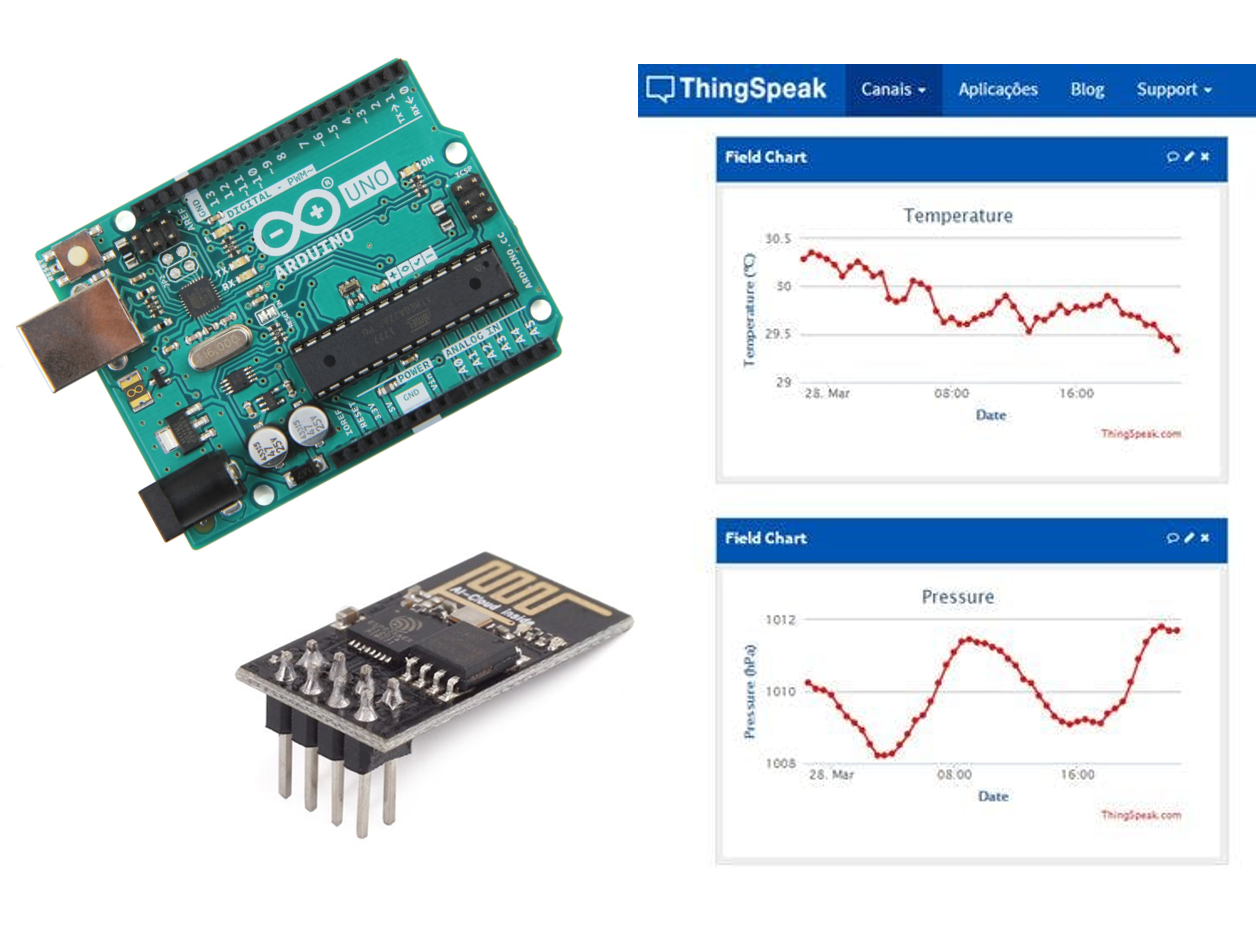

Before officially starting this project, you should prepare the listed Arduino UNO development board and Arduino Proto Shield, an ESP8266, various weather sensors, jumper wires and other components. With these things ready, we can start to build our mini weather station!
The construction of the system is easy to get started. You can connect all the components according to the provided schematic diagram, and connect the sensors to the breadboard through jumpers. After the hardware connection is completed, connect to the computer USB port via a USB cable. Before that, you should download the latest Arduino IDE and install the relevant library files. You can download and burn the code through the web page. Then use the ThingSpeak platform to create your own channel, you can see all the weather status changes.For specific operations and codes, you can refer to Arduino UNO Mini-Weather Station.
Features
-
Small size and easy to build, suitable for Arduino entry projects
-
Flexible development, you can display more weather information items on the basis of this item
-
The current value of each variable is displayed in a graph in real time
Application
-
Mini-Weather Station
Documentations
Bundle İçeriği
Arduino (zorunlu)
- Arduino Uno Rev3 Development board and Arduino beginner programming [SKU: 102990189] ✓
- Protoshield Kit for Arduino [SKU: 103060000] ✓
Wi-Fi (zorunlu)
- ESP8266 WiFi Serial Transceiver Module – 1MB Flash [SKU: 317060016] ✓
Grove (zorunlu)
- Grove – Light Sensor (P) v1.1 – LS06-S Phototransistor Compatible with Arduino [SKU: 101020173] ✓
- Grove – Barometer Sensor(High-Accuracy): Measuring Barometric Pressure, Altimeter, and Temperature [SKU: 101020068] ✓
- Grove – GUVA-S12D UV Sensor [SKU: 101020043] ✓
- Grove – Temperature & Humidity Sensor Pro (DHT22/AM2302) [SKU: 101020019] ✓
- Grove – Dust Sensor(PPD42NS) – measuring PM 2.5,dual PWM output [SKU: 101020012] ✓
